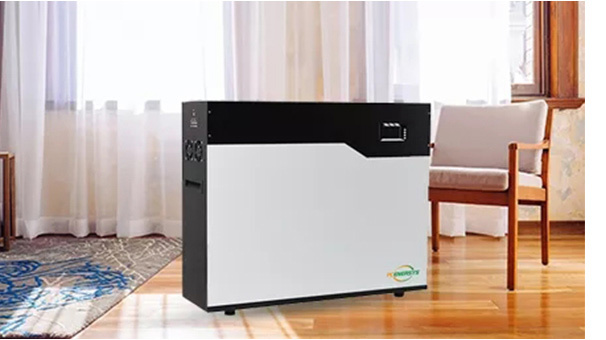

48V 100Ah 5kw Solar Power Wall Lithium Battery

◆High-quality 51.2V LiFePO4 powerwall, safety, 6000times cycle and long lifespan ◆100Ah and 200Ah LiFePO4 powerwall, max 15 units connected in parallel ◆LCD monitor the energy storage power data and operating status ◆Air cooling to improve the reliability of the product ◆External main switch to reduce product power consumption and improve safety ◆Wall brackets, which can meet the installation and use of different place ◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc ◆Compatible, can be connected to different types of loads within the voltage range

Product serial number M16S100BL

  • 产品描述

  • Technical parameter

  •

    51.2V Powar Wall battery energy storage

    battery series



    ● 6000 times long cycle life

    ● Ultra safe LiFePO4 cells composition

    ● 0.25kwh/5kwh/10kwh energy capacity

    ● lntegrated BMS overall protection

    ● 100A Maximum continuous discharge current

    Item
    51.2V wall mounted 100ah lifepo4 battery, 48v 200ah lithium solar battery,lithium battery 48v 100ah/200ah,tesla 5kwh 10kwh powerwall
    Models
    51.2V 100ah/200ah  (5kw solar power system,lithium ion battery 10kwh)
    Application
    Home Appliances, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
    Warranty
    5 years
    Service
    Relevant perameters or OEM/ODM service, just feel free to contact us!
    24 hours online~





    HIGH USABLE RATIO



    ● Nected Max 15 units in parallel to get more energy capacity.

    ● PCenerSys energy storage battery has high output power and usable energy ratio, can reach 95% usable ratio.

    ● PCenerSys energy storage battery has 2.5kwh/5/kwh/10kwh three types are optional.









    TECHNICAL DESIGN



    ● ON/OFF switch contrl the output.

    ● Smart BMS with  RS485/CAN function. widely compatible with most inverter in the market, such as Growatt, Goodwe, Deye, Luxpower, SRNE atc.

    ● Air cooling and high  heat dissipation surface design.

    ● More stable and safe in using.



    MODULAR DESIGN



    ● Modular design allows extension whenever you want.

    ● 2.5/5/10kwh three types are optional, and it can be connected Max 15 units in parallel to get more energy capacity.

    ● The installation of the product is simple and convenient, and the customer service guides the installation, so there is no need to worry about the difficulty of installation.



    Summary about 48V 50Ah Powar Wall battery Powerwall for home as follows

    + 48V 50Ah Powar Wall battery Powerwall for home is  a 51.2 normal voltage battery. The total energy is 2.5kwh energy storage

    + Grade A LiFePO4 battery cell to make this 48V 50Ah power wall more than 6000times cycle life

    + Nice appearance powerwall with black and white color, wall mount battery in your home,  not only as an electricity power system, also looks like an modern furniture.

    + Smart BMS inside, with 50A max continuous discharge current. 2.5kw solar energy system can be connected

    + This 51.2V powerwall is compatible with 48V off-grid inverter, hybrid inverter and so on.

    + 2.5kw power wall be widely used as electric power system, RV cars, solar energy storage system, UPS battery back up also mostly every battery application you can think of, use it to guarantee you are always in power.

    48V LifePO4 powerwall 50Ah Product Features

    ◆High-quality 51.2V LiFePO4 powerwall, safety, deep cycle and long lifespan

    ◆48V 50Ah powerwall, support up to 2.5kw max output

    ◆LCD monitor show the voltage, SOC and temperature of 51.2V battery pack

    ◆Air cooling to improve the reliability of the product

    ◆External main switch to reduce product power consumption and improve safety

    ◆On the ground or wall brackets, which can meet the installation and use of different place

    ◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc

    ◆Compatible, can be connected to different types of 48V inverter

  • Description

    Parameters

    Model

    M1 6S050BL

    M1 6S100BL

    M16S200BL

    Array Mode

    16S

    16S

    16S

    Nominal Energy (KWh)

    2.5

    5

    10

    Nominal Voltage (V)

    51.2

    51.2

    51.2

    Charge Voltage (V)

    58.4

    58.4

    58.4

    Discharge Cut. off Voltage (V)

    45

    45

    45

    Standard Charging Current(A)

    10

    20

    40

    Max.Continuous Charging Current(A)

    50

    100

    100

    Max.Continuous Discharging Curent(A)

    50

    100

    100

    Cycle Life

    ≥6000 times@80%DOD, 25°C

    ≥6000 times@80%DOD, 25°C

    ≥6000 times@80%DOD, 25°C

    Communication Mode

    /

    RS485/CAN

    RS485/CAN

    Operating Temp

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Size(LxWxH) mm

    626x116x403

    750x 149x511

    750x216x613

    Net Weight (Kg)

    ~30

    ~65

    ~108.5

    Package Size (L xWXH) mm

    705x490x275

    856x626x343

    870x710x415

    Gross Weight (Kg)

    ~43

    ~87.5

    ~132.5

Keyword:

Cabinet stacked home energy storage all-in-one

AIO-V series Home Energy Storage

The working environment has a wide range and strong adaptability,Long service life up to 6000+ cycles High quality LiFePO4 battery, safe and reliable,Metal shell, waterproof and explosion-proof Plug and play to remove clutter from wires,No need for matching debugging, easy installation Simple operation, easy to get started quickly Multi-functional design, large LCD display, beautiful appearance Support WIFI to view real-time data through App A variety of charge and discharge modes are available,Multiple working modes, support off-gridmixedgrid-connected output

Cabinet stacked home energy storage all-in-one

Horizontal stacked home energy storage all-in-one

AIO-S series Home Energy Storage

The working environment has a wide range and strong adaptability,Long service life up to 6000+ cycles High quality LiFePO4 battery, safe and reliable,Metal shell, waterproof and explosion-proof Plug and play to remove clutter from wires,No need for matching debugging, easy installation Simple operation, easy to get started quickly Multi-functional design, large LCD display, beautiful appearance Support WIFI to view real-time data through App A variety of charge and discharge modes are available,Multiple working modes, support off-gridmixedgrid-connected output

Horizontal stacked home energy storage all-in-one

High Voltage 48V 51.2V 100Ah Lithium ion Battery module

1031506729923076098

● Capable of High-Powered Emergency-Backup and Off-Grid Functionality ● Highest Efficiency Thanks to a Real High-Voltage Series Connection ● The Quick Plug Connector Design Quick Wiring and Allows for Maximum Flexibility and Ease of Use ● Grand A Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power ● Compatible With Leading High Voltage Battery Inverters ● Highest Safety Standards ● The 48V 96V battery modules can be customized, also, 50Ah capacity.

High Voltage 48V 51.2V 100Ah Lithium ion Battery module

96V 40Ah 50Ah High Voltage LiFePO4 Lithium ion Battery

1031506729923076097

● Capable of High-Powered Emergency-Backup and Off-Grid Functionality ● Highest Efficiency Thanks to a Real High-Voltage Series Connection ● The Quick Plug Connector Design Quick Wiring and Allows for Maximum Flexibility and Ease of Use ● Grand A Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power ● Compatible With Leading High Voltage Battery Inverters ● Highest Safety Standards ● The 51.2V LiFePO4 battery modules can be customized, also 50Ah and 100Ah capacity.

96V 40Ah 50Ah High Voltage LiFePO4 Lithium ion Battery

PCenersys 48V 5KW 220V AC 50Hz power Off Grid MPPT charger Solar Inverter

1031506794255310848

● Rated power 3.5KW / 5KW, power factor 1 ● Built-in MPPT,MPPT voltage range 120V~430VdcPure sine wave AC output ● Solar and utility joint to power the loads ● With the ability to work with or without batteryParallel operation up to 6 units ● WIFI/ GPRS remote monitoring ● CAN/RS485 communication for BMS ● Effective heat dissipation, quickly reduce the operating temperature, and extend the service life of the transformer

PCenersys 48V 5KW 220V AC 50Hz power Off Grid MPPT charger Solar Inverter

48V 100Ah LiFePO4 Powerwall Lithium ion battery

M16S100BL-V

◆High-quality Powerwall Lithium ion battery for house, safety, deep cycle and long lifespan. ◆100Ah and 200Ah powerwall, support up to 15 modules in parallel. ◆LCD monitor the energy storage power data and operating status. ◆Air cooling to improve the reliability of the product. ◆External main switch to reduce product power consumption and improve safety. ◆Wall brackets, which can meet the installation and use of different place. ◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc. ◆Compatible, can be connected to different types of loads within the voltage range.

48V 100Ah LiFePO4 Powerwall Lithium ion battery
