Pcenersys 10000 watt solar inverter 3 phase solar inverter off grid 5 kw hybrid solar inverter for commercial use

● Rated power 3KW, power factor 1 ● Built-in MPPT solar charge controller ● High frequency inverter with compact design ● Pure sine wave AC output ● 2 units can parallel as split phase 120V/240V ● Parallel operation up to 6 units ● WiFi/ GPRS remote monitoring ● RS485 communication for BMS
Product serial number
Product description
Parameters
Technical parameter





High Frequency Solar Inverter





● Rated power 3KW, power factor 1
● Built-in MPPT solar charge controller
● High frequency inverter with compact design
● Pure sine wave AC output
● 2 units can parallel as split phase 120V/240V
● Parallel operation up to 6 units
● WiFi/ GPRS remote monitoring
● RS485 communication for BMS
Models:
MHP-24V/48V 2kw/3kw/4kw/5kw
Application:
Home Appliances, Solar Energy Storage Systems
Warranty:
2 years
Service:
Relevant perameters or OEM/ODM service, just feel free to contact us!
24 hours online~

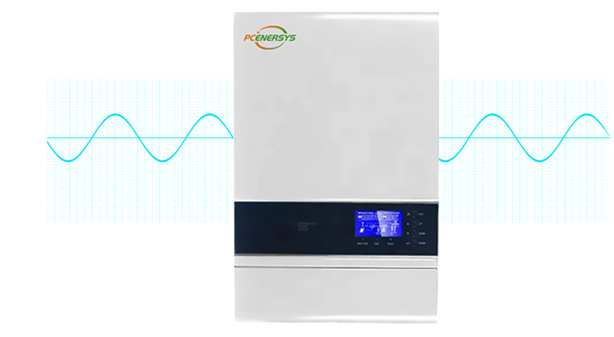

Compact design, continuous and

stable output of pure sine wave





Simulate household electricity waveform, continuous

output without power supply, pure current, high stability,

no damage to electrical appliances, and can run large

loads for a long time.

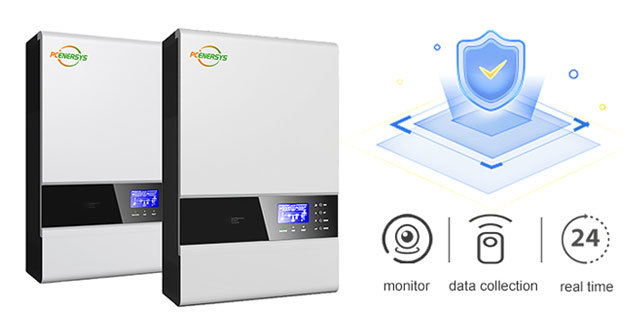

WiFi/ GPRS remote monitoring and

RS485 communication for BMS



It has the functions of remote data collection,

monitoring and alarm, as well as BMS intelligent

protection, which is safer to use.

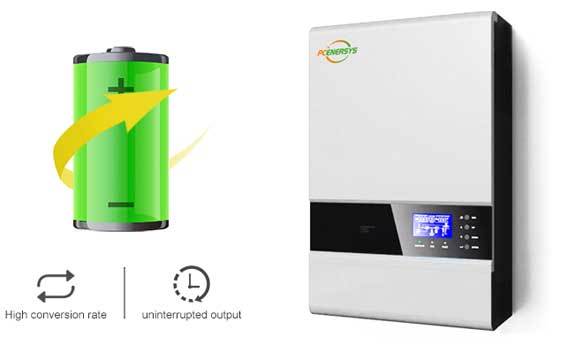

MPPT solar charge controller to

maximize the solar output



High power, ultra-high conversion rate, charging conversion

rate up to 98%, energy saving and environmental protection,

24-hour uninterrupted output





MHP series High Frequency off grid Solar Inverter

● AC output Rated power 24V/48V 2kw/3kw/4kw/5kw

● The inverter bulit-in MPPT Charger, MPPT voltage range 30-80Vdc(24V type), 60V-115Vdc(48V type)

● Pure sine wave AC output inverter

● Multi-machine parallel can support up to 6 units 4/5kw solar inverter in parallel

● Solar and utility joint to power the loads

● CAN/RS485 Commnunication for BMS, Wifi/GPRS remote monitoring


We could not find any corresponding parameters, please add them to the properties table



     Model      3KW-24V      3KW-48V
Rated Power
3000VA/3000W

     3000VA/3000W

System DC voltage
24 VDC
48 VDC
Splite phase operation
Yes, need at least 2 units                parallel
Yes, need at least 2 units parallel
Parallel Option
Yes, up to 6 units
Yes, up to 6 units
Monitoring Option
WiFi or GPRS
WiFi or GPRS
Inverter Output
AC Voltage
110/120AC
110/120AC
Peak Efficiency
93%
93%
Transfer Time

10ms (For Personal Computeis); 20ms(For Home Appliances)

Waveform
Pure Sine Wave
Pure Sine Wave
SolarCharger& AC Charger
Max. PV Array Open Circuit Voltage
145V
145V
Max. PV Array Power
2250W
4500W
Operating Voltage MPPT Range
60~115Vdc
60~115Vdc
Max. Solar Charge Current
80A
100A
AC Input Voltage Range
65~140 VAC
65~140 VAC
Frequency Range
50Hz/60Hz
50Hz/60Hz
Max. AC Charge Current
60A
40A
Max. Charge Current (PV + AC)
140A
120A
Physical
Dimension
455x295x130mm
455x295x130mm
Net Weight
11.5Kg
11.5Kg
Communication
USB/RS485
USB/RS485
Environment
Humidity
5% to 95% Relative Humidity (non-condensing)
Operating Temperature
0℃~50℃
0℃~50℃
Storage
-15℃~60℃
-15℃~60℃
