On grid& off grid single-phase 5kw 6kw 8kw ESS hybrid solar inverter

● Supports automatic battery switching; ● Parallel available, intelligent BMS management; ● Support diesel generator input source; ● Input power source priority can be set by users; ● Compatible with lead-acid and lithium-ion batteries; ● Battery reverse connection protection, anti-power control function;

Product serial number 1031506955983478784

  • 产品描述

  • Technical parameter

  •

    Single-phase ESS hybrid inverter



    ● Supports automatic battery switching;

    ● Parallel available, intelligent BMS management;

    ● Support diesel generator input source;

    ● Input power source priority can be set by users;

    ● Compatible with lead-acid and lithium-ion batteries;

    ● Battery reverse connection protection, anti-power control function;





    AC output Rated power 5kw/6kw
    The inverter bulit-in MPPT Charger, MPPT voltage range 125V-500Vdc
    Pure sine wave AC output inverter
    Multi-machine parallel can support up to 6 units 5kw /6KW solar inverter in parallel
    Solar and utility joint to power the loads
    CAN/RS485 Commnunication for BMS,
    Wifi/GPRS remote monitoring.
    Models:
    R5KL1/R6KL2
    Application:
    Home Appliances, Solar Energy Storage Systems
    Warranty:
    2 years
    Service:
    Relevant perameters or OEM/ODM service, just feel free to contact us!
    24 hours online~

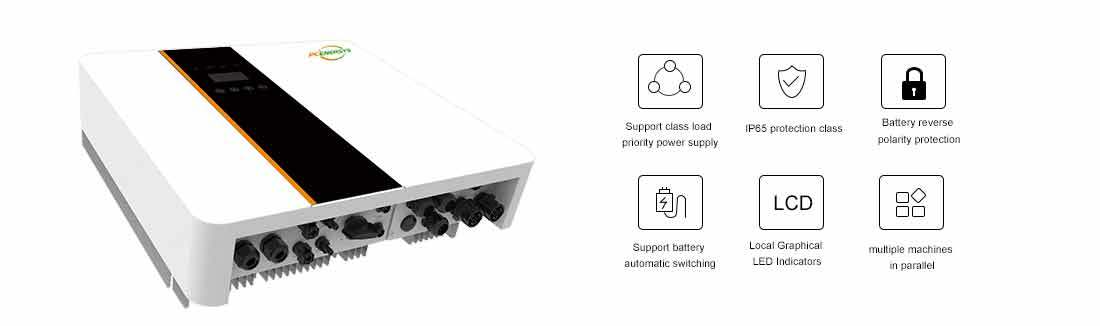

    Full-featured, easy to use, efficient, safe and reliable

    Hybrid solar inverter supports automatic battery switching, has IP protection level, and supports first-class load priority power supply

    Support wall hanging, Compatible with a variety of battery access



    ● Wall-mounted design saves space

    ● Natural cooling, low noise

    ● Multifunctional protection; IP65 protection grade, reverse battery protection

    ● Compatible with anti-backflow function,  full power discharge







    Compatible with lithium-ion batteries and lead-acid batteries

    • Compatible with high and low voltage batteries;  • Compatible with house intelligent energy manage ment system;

    • Compatible with grid power dispatching instructions;  • Compatible with virtual power plant instructions;

    1. Battery interface    2. PV positive and negative terminals      3. DC switch      4. WiFi port     5. DRM/BMS

    6. Grid Current/Dry IO   7. Pressure valve    8. Reserved port    9. USB port    10. Power can/LEAD-NTC

    11. EPS production     12. Grid output



    Basic features of single -phase ESS hybrid inverter

    ● Supports automatic battery switching;

    ● Parallel available, intelligent BMS management;

    ● Support diesel generator input source;

    ● Input power source priority can be set by users;

    ● Compatible with lead-acid and lithium-ion batteries;

    ● Battery reverse connection protection, anti-power control function;

  •

           Input (PV)
    Max. DC voltage(V)
    550
    MPPT voltage range(V)
    125-500
    Max.input current of single                 MPPT(A)
    14
    MPPT tracker/strings
    2/1
    AC output
    Grid voltage/range(V)
    230/176~270
    Frequency (Hz)
    50/60
    PF
    0.8lagging-0.8leading
    THDi
    3%
    AC output topology
    L+N+PE
    Battery
    Battery voltage range(V)
    40~58
    Max. charging voltage(V)
    58
    Battery type
    lithium /Lead-acid
    Communication interface
    CAN/RS485
    EPS output
    Rated output voltage(V)
    230
    Rated frequency (Hz)
    50/60
    THDu
    <2%
    Overload capacity
    110%, 30S/120%, 10S/150%, 0.02S
    General data
    Battery chage/
    dischage effiffifficiency
    95.0%
    Europe effiffifficiency
    97.0%
    MPPT effiffifficiency
    99.9%
    Ingress protection
    IP65
    Noise emission (dB)
    <35
    Operation temperature
    - 25℃~ 60℃
    Cooling
    Natural
    Relative humidity
    0 ~95%(non-condensing)
    Dimensions W*D*H (mm)
    550*200*515
    Weight (kg)
    25
    Isolation transformer
    NO
    Self-consumption(W)
    <3
    Display and communication
    Display
    LCD
    Interface:RS485/Wififi/
    4G/CAN/DRM
    Yes/ Opt/ Opt/ Yes/ Yes
    Certifificates
    CE、TUV、SAA、NRS
