12V 100Ah LiFePO4 Battery

+ 12V 100Ah LifePO4 battery is used grade A LifePO4 battery cells, it ensure the battery has excellent performance. + 12V LifePO4 battery are mainly used in solar energy storage system and golf car battery.  + 12V100Ah battery is a good choice for replacement of Lead acid battery in off grid solar power system and solar street light. + 12V Lithium Iron Phosphate battery can be used with 4 series and 8 parallel (max.) that establish 24V batteries or 48v lifePO4 battery for energy storage system. It's easy to use like as lead acid battery. + This type of Lithium batteries has silver plated copper terminal and fireproof shell materials. + 12V 100Ah LifePO4 battery has IP67 waterproof performance that prevent the Lithium ion batteries from rain drops. + Compared with lead acid battery,12V 100Ah LifePO4 battery has long cycles life (more than 6000times), high energy density and more environmentally friend.  + 12V 100Ah Lithium Iron Phosphate battery has high current fast charge and discharge.

Product serial number M04S100BL

  • 产品描述

  • Technical parameter

  •

    12V/24V LiFePO4 battery



    ● Grade A LiFePO4 battery cells

    ● Long lifespan and low self-discharge

    ● Plated iron case: Stable, waterproof, better heat dissipation

    ● Lighter weight, safe and inexplosive

    ● Can be connected in series and parallel

    Models
    12V 100ah/120ah/200ah
    Application

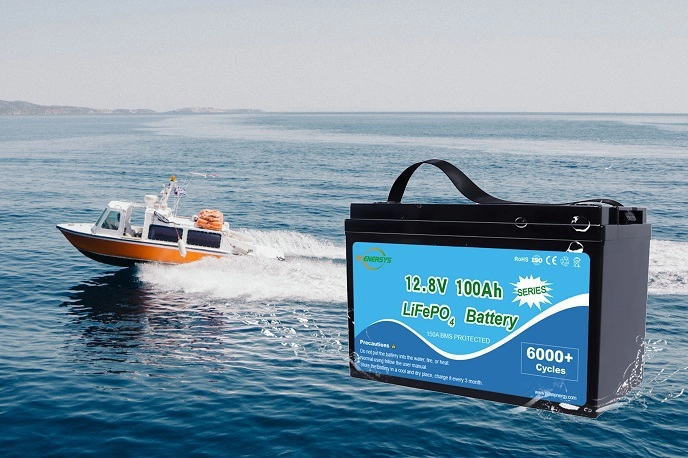

    Power Tools, Home Appliances, Golf Carts, BOATS, SUBMARINES, Automotive, Electric Folklifts, electric vehicles, Electric
    Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
    Warranty
    5 years
    Service
    Relevant perameters or OEM/ODM service, just feel free to contact us! 24hours online~



    Battery cycle life 6000 times



    ● The 12.8V LiFePO4 battery has the characteristics of high output power and high utilization rate, and the internal battery structure is 4 series and 8 parallel.

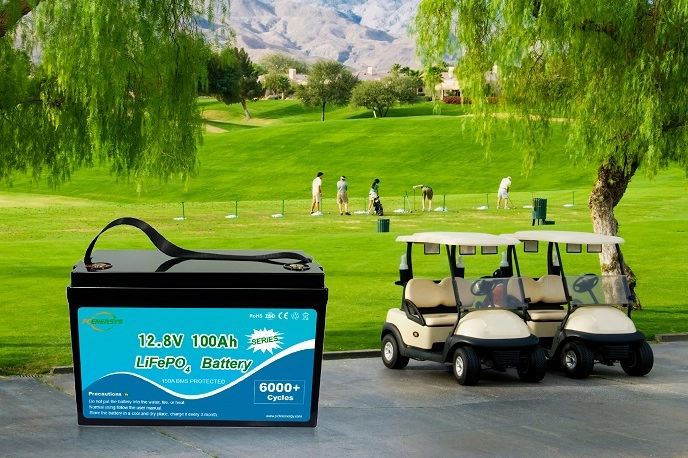

    ● The 12.8V LiFePO4 battery has more than 6000 cycles and is very popular with customers, and can power golf carts.







    Light weight, small size, easy to carry



    ● The net weight of the 12.8V 100Ah lithium battery is only 12.1kg, and adults can easily lift it with only one hand.

    ● Compared with 12V lead-acid battery, 12.8V LiFePO4 battery is much lighter and safer to use.

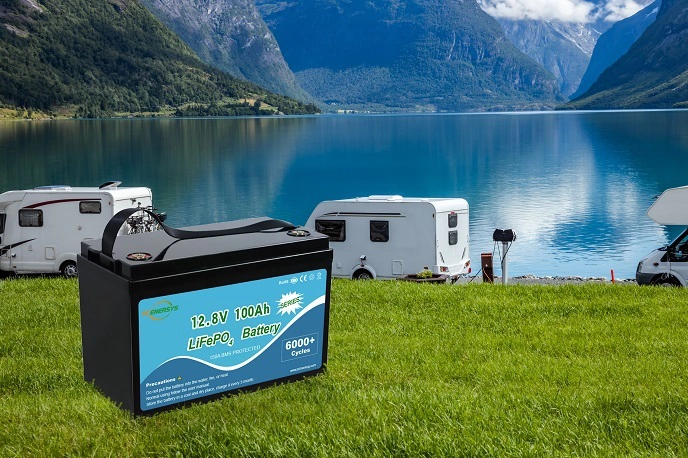

    ● 12.8V100Ah/120Ah are all the same in size. They can provide power to the RV when going out for a parade.

    It is very convenient to use and is the best choice for travel.





    Good product performance, safe to use


    ● Silver plated copper terminal. Good electrical conductivity, anti-corrosion and anti-corrosion.

    ● Fireproof shell material. The shell is made of flame retardant material Bettery sealing.

    ● Waterproof material. IPX-6 Waterproof ABS Material, prevent the battery from rain drops



    Summary about 12V 100Ah LiFePO4 battery as follows
    + 12V 100Ah LifePO4 battery is used grade A LifePO4 battery cells, it ensure the battery has excellent performance.

    + 12V LifePO4 battery are mainly used in solar energy storage system and golf car battery.

    + 12V100Ah battery is a good choice for replacement of Lead acid battery in off grid solar power system and solar street light.

    + 12V Lithium Iron Phosphate battery can be used with 4 series and 8 parallel (max.) that establish 24V batteries or 48v LifePO4 battery for energy storage system. It's easy to use like as lead acid battery.

    + This type of Lithium batteries has silver plated copper terminal and fireproof shell materials.

    + 12V 100Ah LifePO4 battery has IP67 waterproof performance that prevent the Lithium ion batteries from rain drops.

    + Compared with lead acid battery,12V 100Ah LifePO4 battery has long cycles life (more than 6000times), high energy density and more environmentally friend.

    + 12V 100Ah Lithium Iron Phosphate battery has high current fast charge and discharge.

  • Description

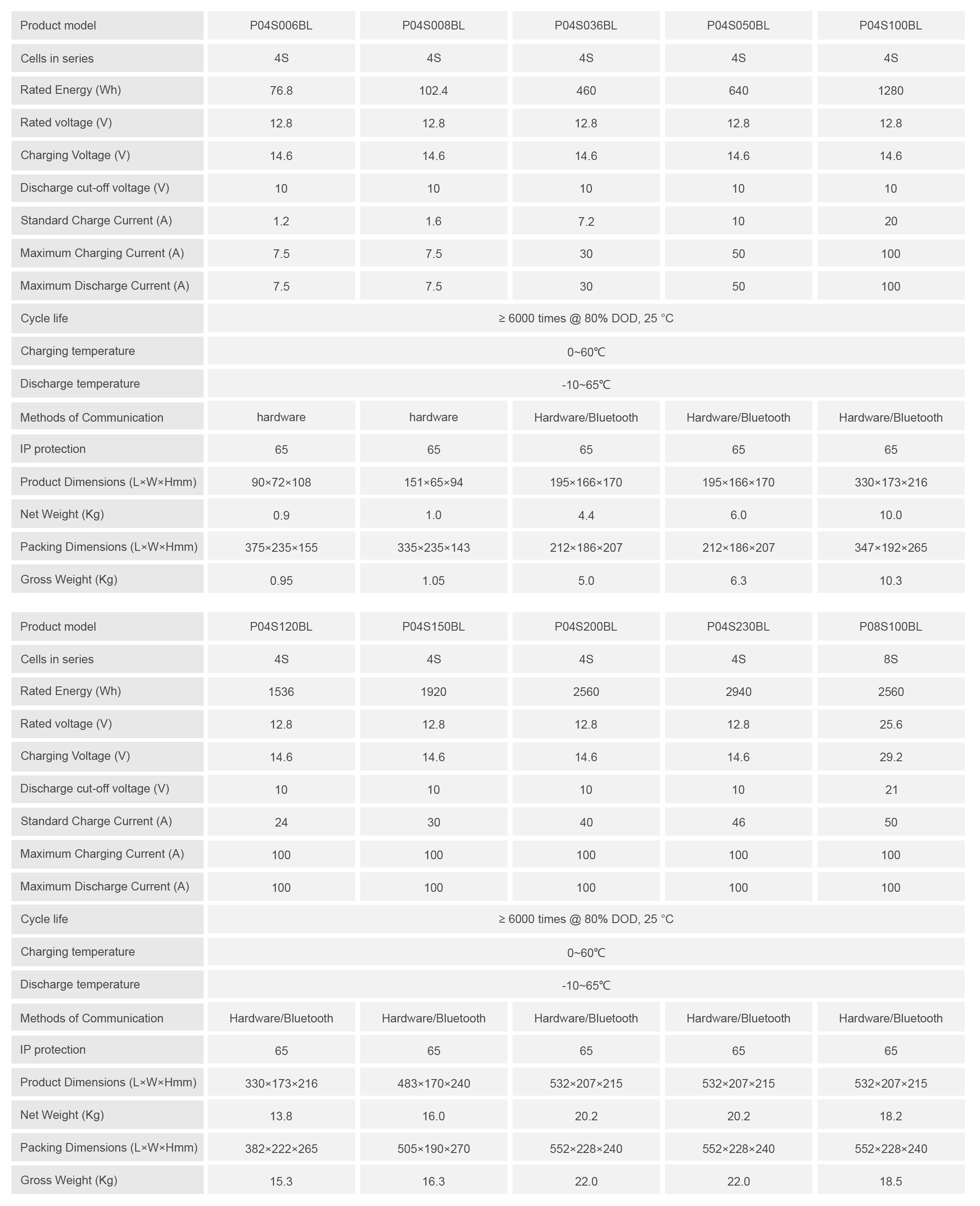

    Parameters

    Model

    P04S100BL

    P04S120BL

    P04S200BL

    Array Mode

    4S

    4S

    4S

    Nominal Energy (KWh)

    1.2

    1.55

    2.55

    Minimum Energy (KWh)

    21.2

    21.5

    22.5

    Nominal Voltage (V)

    12.8

    12.8

    12.8

    Charge Voltage (V)

    14.6

    14.6

    14.6

    Discharge Cut-off Voltage (V)

    10

    10

    10

    Standard Charging Current(A)

    20

    24

    40

    Max. Continuous Charging Current (A)

    100

    100

    100

    Max.Continuous Discharging Curent (A)

    100

    100

    100

    Cycle Life

    ≥6000 times@80%DOD, 25°C

    ≥6000 times@80%DOD, 25°C

    ≥6000 times@80%DOD, 25°C

    Operating Temp

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Charge: 0~60°C;
    Discharge: -20°C~65°C

    Size(LxWxH) mm

    330x173x215

    330x173x215

    521x238x218

    Net Weight (Kg)

    12.1

    13.8

    25.2

    Package Size (LxWXH) mm

    382x222x265

    382x222x265

    557x292x275

    Gross Weight (Kg)

    13.6

    15.3

    27.2
