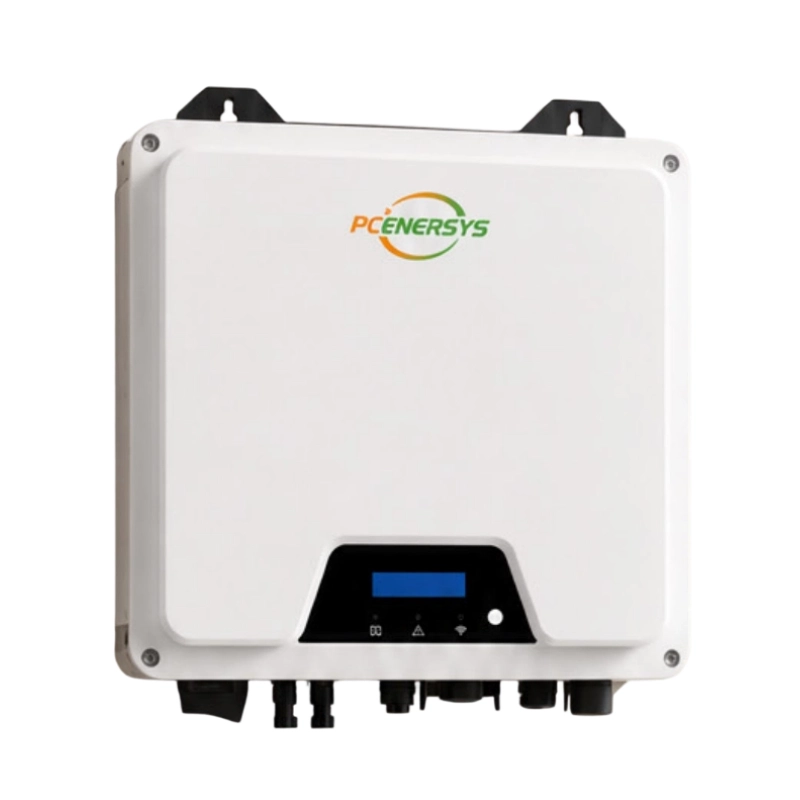

12kW Three Phase Hybrid Solar Inverter with High Voltage Battery & Dual MPPT
12kW Three Phase Hybrid Solar Inverter with High Voltage Battery & Dual MPPT
Product Description
Explore this 12kW Three Phase Hybrid Solar Inverter, designed for residential and commercial solar energy storage systems with reliable on-grid and off-grid power capabilities. Featuring dual MPPT trackers, up to 18,000W PV input, and a wide 150–850VDC MPPT operating range, it delivers efficient solar energy conversion and flexible battery charging. Its three-phase 380V/400V output, high-voltage lithium battery compatibility (160–800VDC), and 15kVA surge power provide versatile power management. With intelligent BMS communication, up to 98.2% inverter efficiency, a durable IP65-rated enclosure, and optional 4G/LAN connectivity, it offers a flexible and reliable solution for modern solar energy storage systems.
Key Advantages
High PV Input Capacity
Supports up to 18,000W PV input power, allowing greater solar panel capacity and supporting efficient energy generation for high-demand solar storage systems.
Dual MPPT Tracking Technology
Equipped with two independent MPPT trackers, it optimizes solar energy harvesting and provides greater flexibility for photovoltaic system configuration.
Wide MPPT Voltage Range
Features a wide 150–850VDC MPPT operating range, allowing flexible solar panel configuration and efficient solar energy harvesting under varying conditions.
High-Efficiency Energy Conversion
Achieves up to 98.2% maximum inverter efficiency, helping reduce energy conversion losses and improve overall system performance.
High-Voltage Lithium Battery Compatibility
Supports a 160–800VDC battery voltage range with automatic BMS adaptation and CAN/RS485 communication, enabling reliable integration with high-voltage lithium battery systems.
Durable IP65-Rated Design
Features a one-piece die-cast aluminum alloy housing and IP65 protection rating, providing reliable environmental protection for indoor and outdoor installation.
Technical Specifications
| Model | PCHV5KLP3 | PCHV6KLP3 | PCHV8KLP3 | PCHV10KLP3 | PCHV12KLP3 |
|---|---|---|---|---|---|
| AC Output ( Off Grid ) | |||||
| Rated Power | 5000W / 5000VA | 6000W / 6000VA | 8000W / 8000VA | 10000W / 10000VA | 12000W / 12000VA |
| Surge Power | 10000VA | 12000VA | 15000VA | 15000VA | 15000VA |
| AC Output Voltage | Three Phase 380V/400V, 3L-N-PE | ||||
| Rated AC Output Frequency | 50Hz / 60Hz (Auto detection) | ||||
| Transfer Time | <10ms | ||||
| THDV (Linear Load) | <3% | ||||
| AC Output ( On Grid ) | |||||
| Rated Power | 5000W / 5500VA | 6000W / 6600VA | 8000W / 8800VA | 10000W / 11000VA | 12000W / 13200VA |
| Power Factor | 0.8 leading to 0.8 lagging | ||||
| Rated Voltage | Three Phase 380V/400V, 3L-N-PE | ||||
| Rated Grid Frequency | 50Hz/60Hz (Auto detection) | ||||
| Max Output Current | 8.5A | 10.0A | 13.5A | 16.0A | 20.0A |
| THDi (Rated Power) | <3% | ||||
| Max Grid Input Power | 11000VA | 13200VA | 16500VA | 16500VA | 20000VA |
| Max Grid Input Current | 17.0A | 20.0A | 23.0A | 23.0A | 29.0A |
| Efficiency | |||||
| Max Inverter Efficiency | 98.00% | 98.00% | 98.20% | 98.20% | 98.20% |
| European Efficiency | 97.30% | 97.30% | 97.30% | 97.40% | 97.40% |
| MPP Tracking Efficiency | 99.90% | ||||
| Charging Efficiency (PV to Battery) | 98.50% | ||||
| Charge/Discharge Efficiency (Battery to Grid/Load) | 97.60% | ||||
| PV Input | |||||
| Number Of MPPT Trackers | 2 | ||||
| Strings per MPPT | (1/1) | ||||
| Max PV Input Power | 7500W | 9000W | 12000W | 15000W | 18000W |
| Max PV Array Open Circuit Voltage | 1000Vdc | ||||
| Max PV Input Current | 15A × 2 | 15A × 2 | 15A × 2 | 15A × 2 | 15A × 2 |
| Max Short Circuit Current | 20A × 2 | ||||
| MPPT Voltage Range | 150~850Vdc | ||||
| Battery | |||||
| Compatible Battery Types | Lithium-ion battery | ||||
| Battery Voltage Range | 160~800Vdc | ||||
| BMS Adaptation | Auto-adaptive BMS | ||||
| BMS Communication | CAN / RS485 | ||||
| Protection | |||||
| Anti-islanding Protection | Yes | ||||
| PV Reverse Polarity Protection | Yes | ||||
| Insulation Resistance Detection | Yes | ||||
| Residual Current Monitoring | Yes | ||||
| Output Overcurrent Protection | Yes | ||||
| Output Short-Circuit Protection | Yes | ||||
| Overvoltage Protection | Yes | ||||
| Battery Reverse Connection Protection | Yes | ||||
| DC Surge Protection | Class II | ||||
| AC Surge Protection | Class II | ||||
| Mechanical Specifications | |||||
| Inverter Dimensions (W×H×D) | 425 × 351 × 200 mm | ||||
| Net Weight | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg | 21.1 kg |
| Housing | One-piece die-cast aluminum alloy | ||||
| Cooling Method | Natural cooling | Natural cooling | Natural cooling | Natural cooling | Natural cooling |
| Topology | Transformerless | ||||
| Communication Interface | |||||
| Standard Interface | RS485 / Wi-Fi | ||||
| Optional Interface | 4G / LAN | ||||
| Meter Communication | RS485 | ||||
| CT Connection | Supported | ||||
| User Interface | LED / LCD Display | ||||
| Environment | |||||
| Protection Degree | IP65 | ||||
| Operating Temperature | -25 ℃ ~ +60 ℃ | ||||
| Humidity | 0% ~ 100% non-condensing | ||||
| Altitude | <2000 Meters (derating above 2000m) | ||||
| No-load Night Power Loss | <13W | ||||
| Meteorological Standard | IEC 60721-3-4 4K4H | ||||
Application Scenarios & Target Markets
Perfect for hybrid solar systems, high electricity price regions and energy-saving users
Residential Solar Energy Storage Systems
Ideal for residential solar systems requiring efficient energy conversion and reliable battery storage.
Supports up to 18,000W PV input for greater solar energy utilization.
Provides stable three-phase 380V/400V AC output for household energy needs.
Commercial Solar Energy Systems
Suitable for commercial buildings requiring efficient solar power generation and energy management.
Supports 12kW rated output with three-phase power delivery for commercial applications.
Enables solar energy utilization with high-voltage lithium battery integration.
On-Grid Solar Power Systems
Designed for grid-connected solar systems requiring efficient power conversion and grid integration.
Supports three-phase 380V/400V grid output with automatic 50Hz/60Hz frequency detection.
Delivers up to 98.2% maximum inverter efficiency for reduced energy conversion losses.
Off-Grid Solar Energy Systems
Ideal for off-grid applications requiring independent solar power and battery storage.
Provides 12kW rated off-grid output with 15kVA surge power to support varying load demands.
Features a transfer time of less than 10ms for reliable power supply switching.
High-Voltage Battery Energy Storage Systems
Suitable for solar storage systems using high-voltage lithium-ion batteries.
Supports a 160–800VDC battery voltage range with automatic BMS adaptation.
Enables reliable battery communication through CAN and RS485 interfaces.
Outdoor Solar Energy Storage Systems
Designed for outdoor solar installations requiring durable equipment and environmental protection.
Features an IP65-rated enclosure and one-piece die-cast aluminum alloy housing.
Operates across temperatures from -25°C to +60°C, supporting diverse installation environments.
