32700 LiFepo4 Battery 3.2V 6000mah cylindrical Cell
32700 LiFePO4 Battery 3.2V 6000mAh Cylindrical Cell
Product Description
PCENERSYS 32700 LiFePO4 battery cell is a high-performance cylindrical energy storage unit with 3.2V nominal voltage and 6000mAh large capacity. Adopting premium lithium iron phosphate chemistry, it features excellent safety, stable discharge performance, long cycle life and low self-discharge. Widely used in energy storage systems, electric vehicles, UPS backup power, industrial power and mobile equipment, it provides safe, stable and long-lasting energy support for various demanding scenarios.
Key Advantages
Sturdy Steel Enclosure Structure
Adopts durable pressure-resistant steel casing, providing excellent structural strength and long-term stability even in harsh working environments.
High Capacity & Stable Output
6000mAh large capacity with consistent voltage output, ensuring continuous and reliable power supply for energy storage and backup applications.
Ultra-Long Cycle Life
Built with advanced LFP material and manufacturing process, delivering long cycle life to lower replacement cost and improve overall ROI.
Wide Temperature Adaptability
Maintains excellent charging and discharging performance in both high and low temperature environments, suitable for global climate conditions.
Low Self-Discharge Rate
Features extremely low self-discharge, maintaining high power retention during long-term storage and ensuring instant standby power availability.
All-Round Safety & Reliability
Integrates multiple safety protections, strong shock and vibration resistance, guaranteeing safe and stable operation in mobile and industrial scenarios.
Technical Specifications
| Item | Condition/ Note | Specification |
|---|---|---|
| Nominal Capacity | 1C discharge capacity | 6.0Ah |
| Nominal Voltage | 3.2V | |
| AC Impedance | At AC 1000 Hz | 8mΩ |
| Cell Size | Cell Diameter | 32.2±0.3 mm |
| Cell Height | 70.5+0.4/-0.3 mm | |
| Cell Weight | 140± 5 g | |
| End-of-charge Voltage | CC Mode | 3.65V |
| End-of-charge Current | CV Mode | 0.3A |
| Charging Method | Standard Charging | ≤1C at CC/CV |
| End-of-discharge Voltage | CC Mode | 2.0V |
| Max continuous Discharging Current | 18A(3C) | |
| Max Pulse Discharging Current | 60A(10C), 3s | |
| Cycle Life | 1 C/100 % DOD | ≥2000 cycles |
| Operating Temperature Range | Charging Temperature | 0~60 °C |
| Discharging Temperature | -20~ 60°C | |
| Storage Temperature | -20~ 45°C |
Application Scenarios & Target Markets
PCENERSYS 32700 LiFePO4 3.2V 6000mAh cylindrical battery cells are widely used in energy storage, power and mobility fields, providing stable and reliable energy support for various devices and systems.

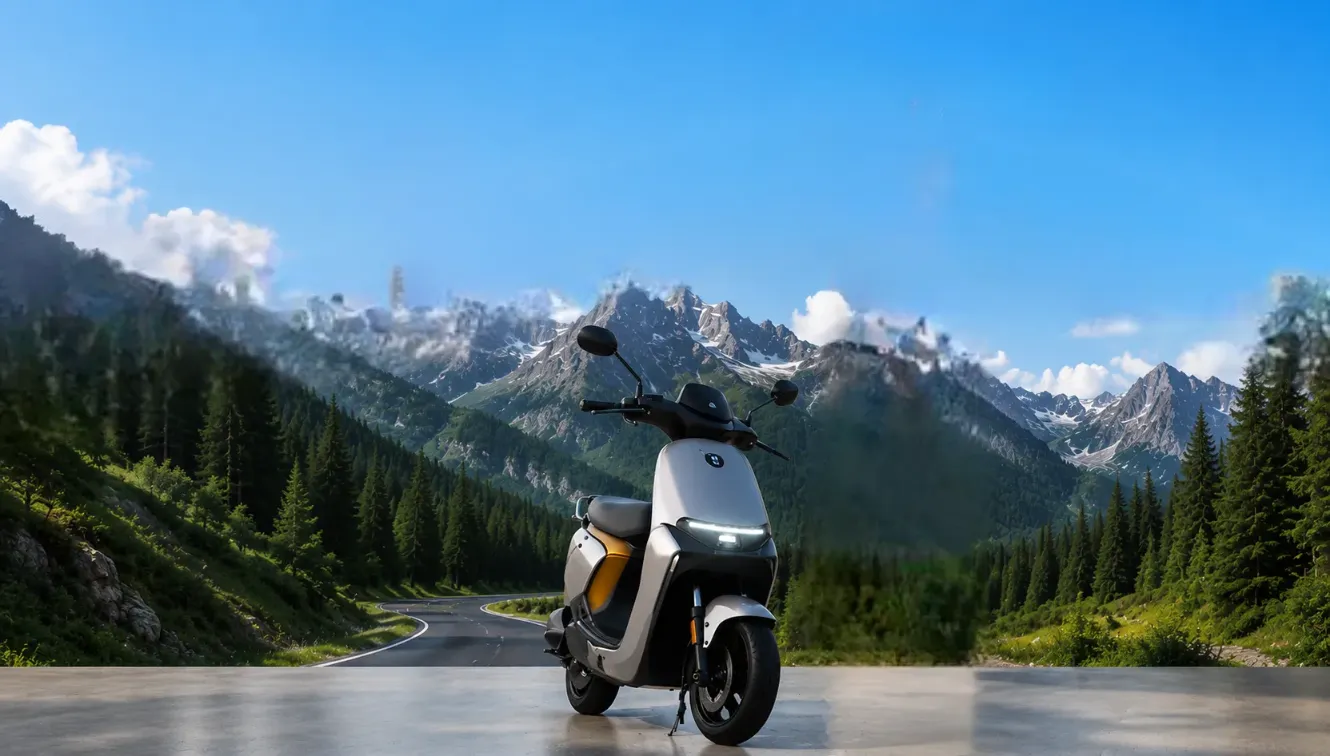

Electric Two-Wheeled Vehicles
- E-bikes, electric scooters and electric motorcycles
- Stable discharge, long range and long cycle life

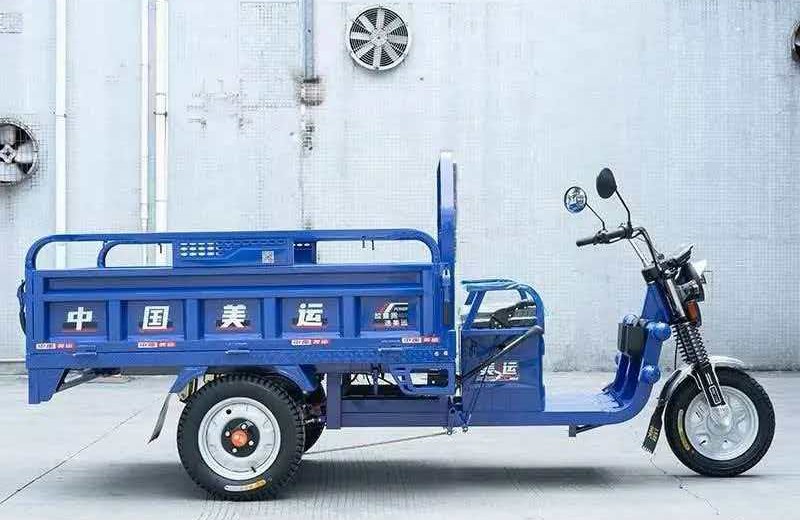

Electric Three-Wheeled Vehicles
- Electric tricycles, cargo tricycles and low-speed vehicles
- High safety and strong power output performance
Low-Speed Electric Four-Wheelers
- Electric sightseeing cars, golf carts and utility vehicles
- Reliable power supply for long-time continuous operation

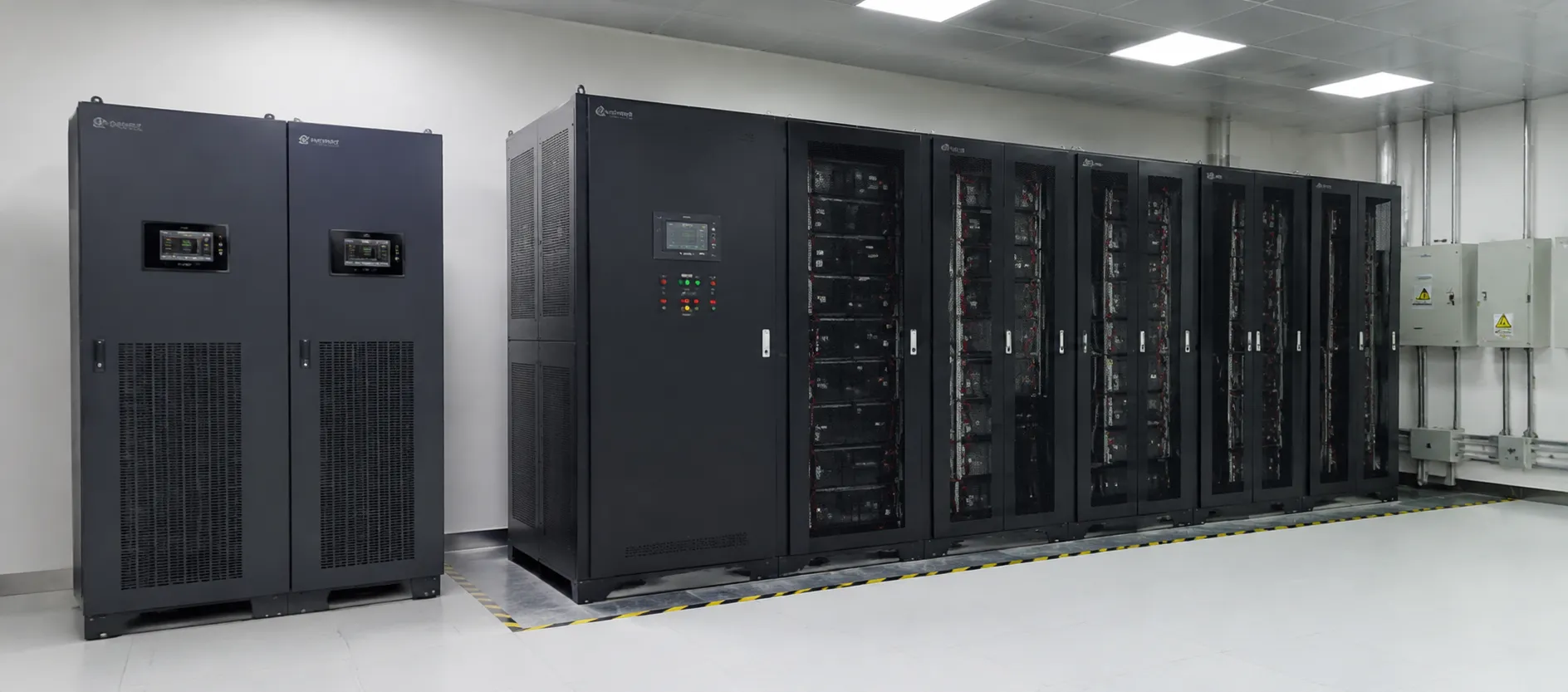

UPS Uninterruptible Power Supply
- Backup power for office, industrial and medical equipment
- Low self-discharge & high reliability for emergency use

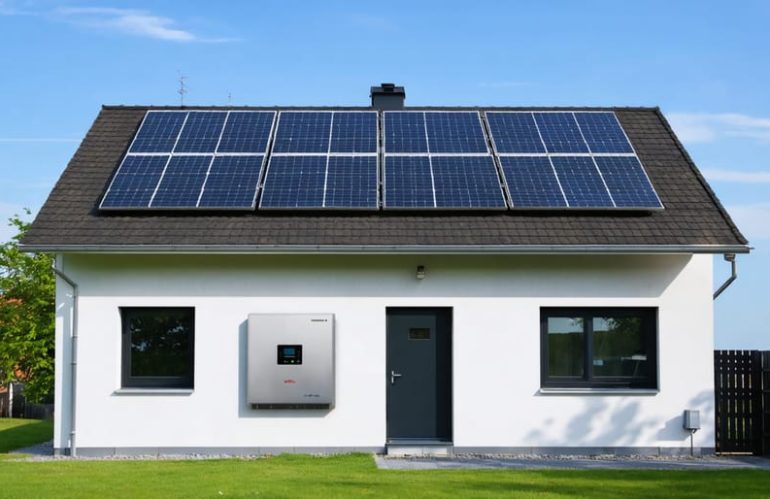

Residential Energy Storage Systems
- Household battery packs and small solar storage systems
- Safe, long life and suitable for daily energy storage

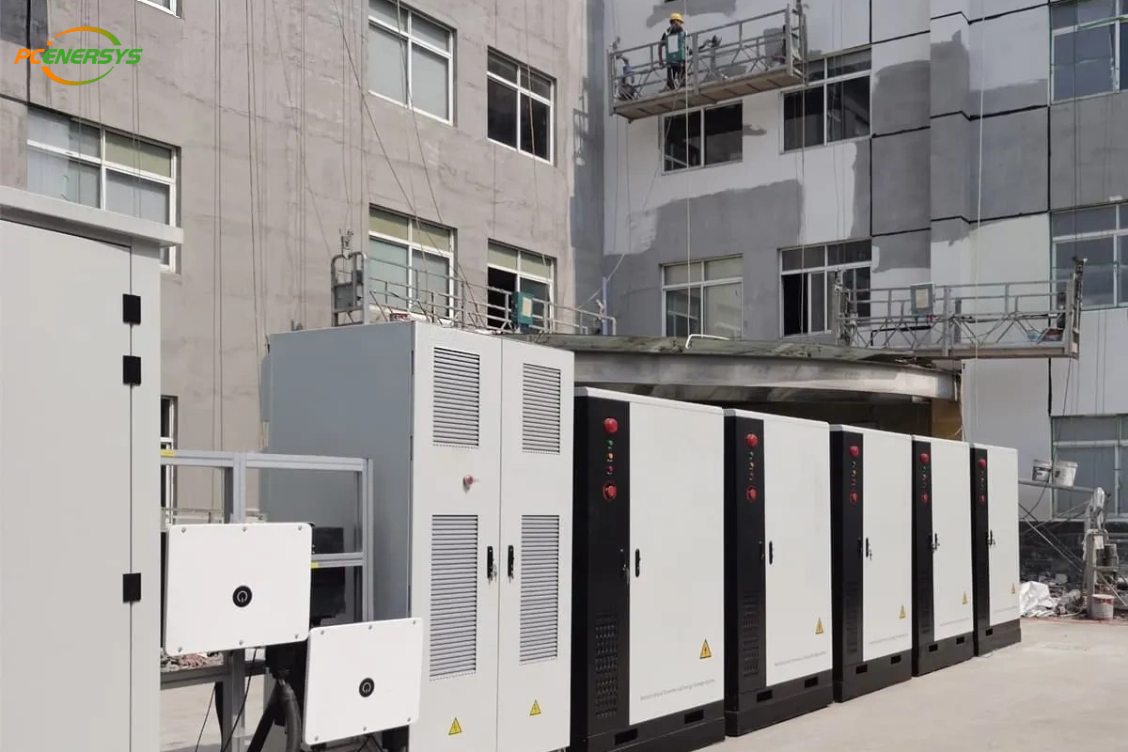

Commercial & Industrial Energy Storage
- Small C&I energy storage modules and portable power stations
- Modular combination, high stability and long life
