High Voltage Rackable LiFePO4 Battery 300Ah 314Ah
High Voltage Rackable LiFePO4 Battery 300Ah 314Ah
Product Description

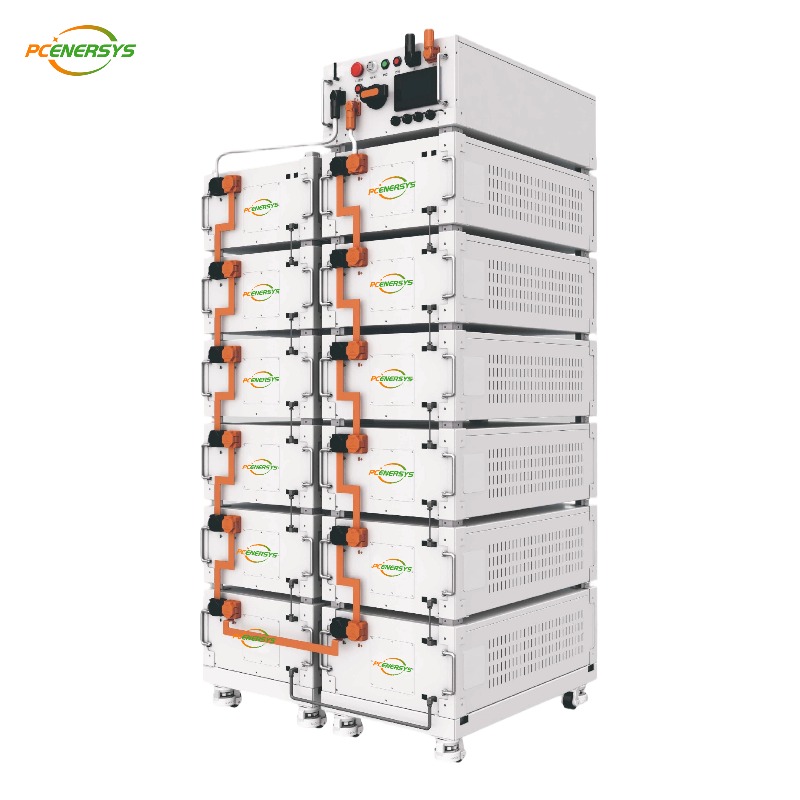

PCENERSYS high-voltage rackable LiFePO₄ battery system adopts premium original A-grade lithium iron phosphate cells, equipped with an advanced intelligent BMS battery management system to deliver outstanding safety, stability and reliability. The battery provides ultra-long service life with more than 6000 cycles, featuring a professional modular structure that supports flexible parallel capacity expansion and customizable voltage configuration. It integrates built-in safety protection devices, intuitive LCD display and simple ON/OFF control, ensuring stable operation, easy installation and convenient maintenance for various energy storage applications.
Key Advantages
Premium A-Grade LFP Battery Cells
Adopts original A-grade lithium iron phosphate battery cells, delivering exceptional safety performance and long-term operational reliability for various energy storage scenarios.
Intelligent Integrated BMS System
Built with intelligent all-round protection strategy and real-time fault detection, effectively ensuring safe and stable operation of the entire battery system.
High Efficiency & Long Cycle Life
Features large capacity design, high charging & discharging efficiency, and provides more than 6000 cycles for long service life and excellent cost performance.
Modular & Flexible Expansion
Modular structural design supports parallel capacity expansion, allowing flexible configuration of system voltage and capacity to meet different application requirements.
Built-in Safety & Easy Operation
Equipped with built-in fire extinguishing device for ultra-early warning thermal runaway control, plus ON/OFF switch and LCD data display for simple operation.
Easy Installation & Maintenance
Standard cabinet with bottom tripod design, enabling fast installation, daily maintenance and system management in a more convenient and efficient way.
Technical Specifications
| Parameter | HVM208S314BL-U | HVM224S314BL-U |
|---|---|---|
| Product Basic Data | ||
| Number of Modules | 13 | 14 |
| Battery Capacity | 314Ah | 314Ah |
| Battery Energy | 208.99KWh | 225.07KWh |
| Size (L×W×H) mm | 930×800×1724 | 930×800×1956 |
| Weight | 1600Kg | 1675Kg |
| Standard Charge Current | 100A | 100A |
| Standard Discharge Current | 200A | 200A |
| Battery Performance Features | ||
| Battery Type | LFP (LiFePO4) | |
| Cycle Life | ≥ 6000 cycles @ 80% DOD, 25℃ | |
| Nominal Voltage | 665.6V | 716.8V |
| Operating Voltage Range | 561-817.6V | |
| IP Protection | IP21 | |
| Installation | Cabinet Holding | |
| Charging Temperature | 0~60℃ | |
| Discharge Temperature | -10~60℃ | |
| Conventional Parameters | ||
| BMS Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement | |
| Communication Port | RS485/CAN | |
| Warranty | 5 or 10 years (optional) | |
Application Scenarios & Target Markets
High Voltage Rackable LiFePO4 Battery 300Ah 314Ah | Widely Used in Home, Commercial & Industrial Energy Storage Projects
Residential Energy Storage Systems
- Pair with hybrid inverters for home energy storage solutions
- Realize solar self-consumption, backup power and lower electricity bills
Small Commercial Energy Storage
- Suitable for small businesses, offices and retail stores
- Optimize energy usage and reduce peak demand power costs
Modular & Scalable Energy Storage
- Rackable design supports integration into large battery clusters
- Flexible capacity expansion for various ESS projects
Backup Power & UPS Replacement
- Provide reliable backup power for IT and communication equipment
- Longer backup duration than traditional UPS systems
Solar + Storage Integration
- Store excess solar energy for night and insufficient generation
- Perfect match with on-grid and off-grid photovoltaic systems
Telecom & Distributed Power Supply
- Stable power for telecom base stations and distributed energy sites
- Applicable for both grid-connected and off-grid environments
Project Cases
Global home energy storage solutions with reliable inverters and batteries

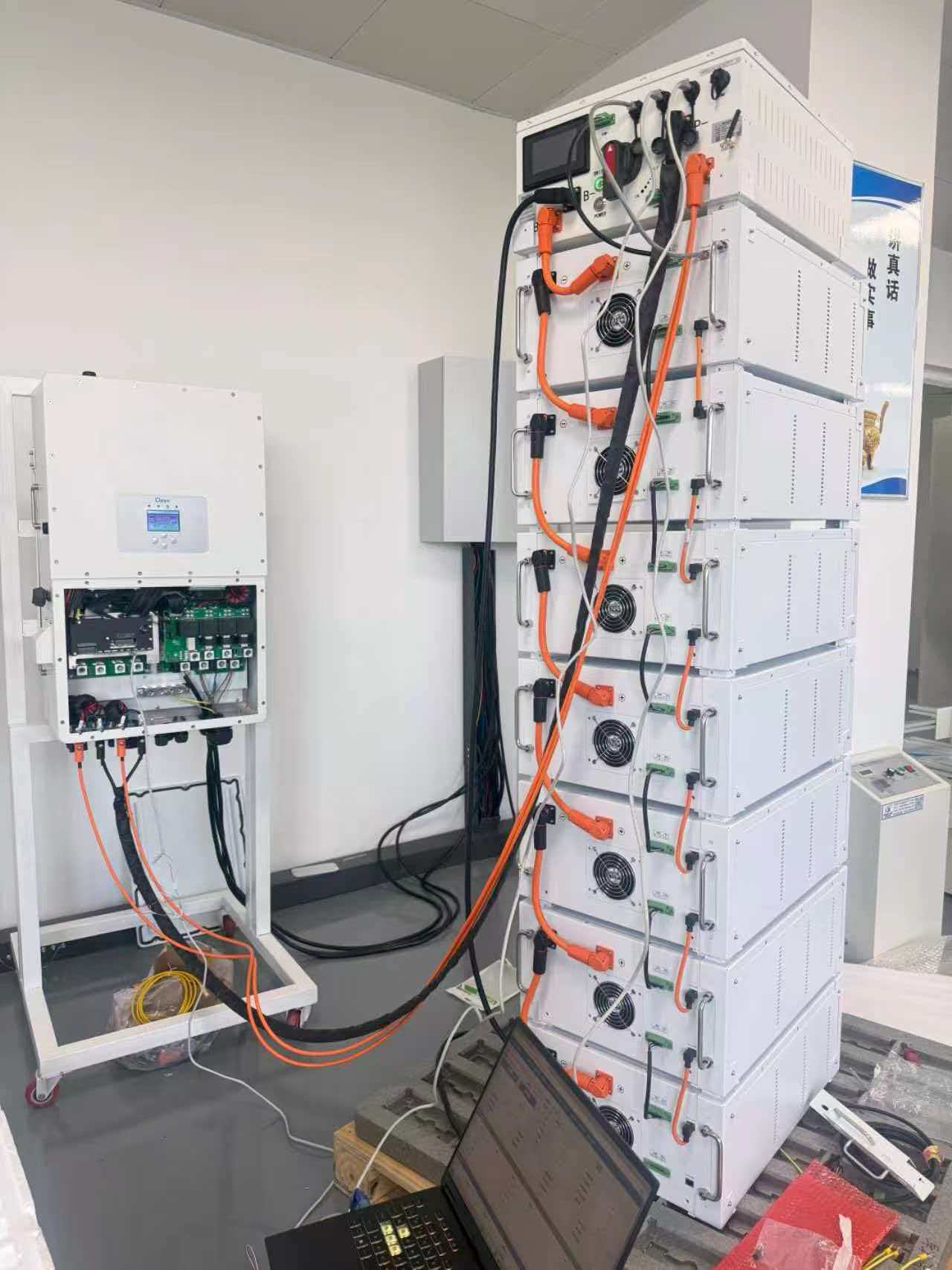

This residential system integrates a 6kW PCENERSYS inverter with a 35kWh PCENERSYS battery to provide stable and reliable power for everyday home use. It ensures critical appliances continue running during grid outages, effectively improving family comfort and daily energy efficiency while reducing dependence on unstable public power supply.

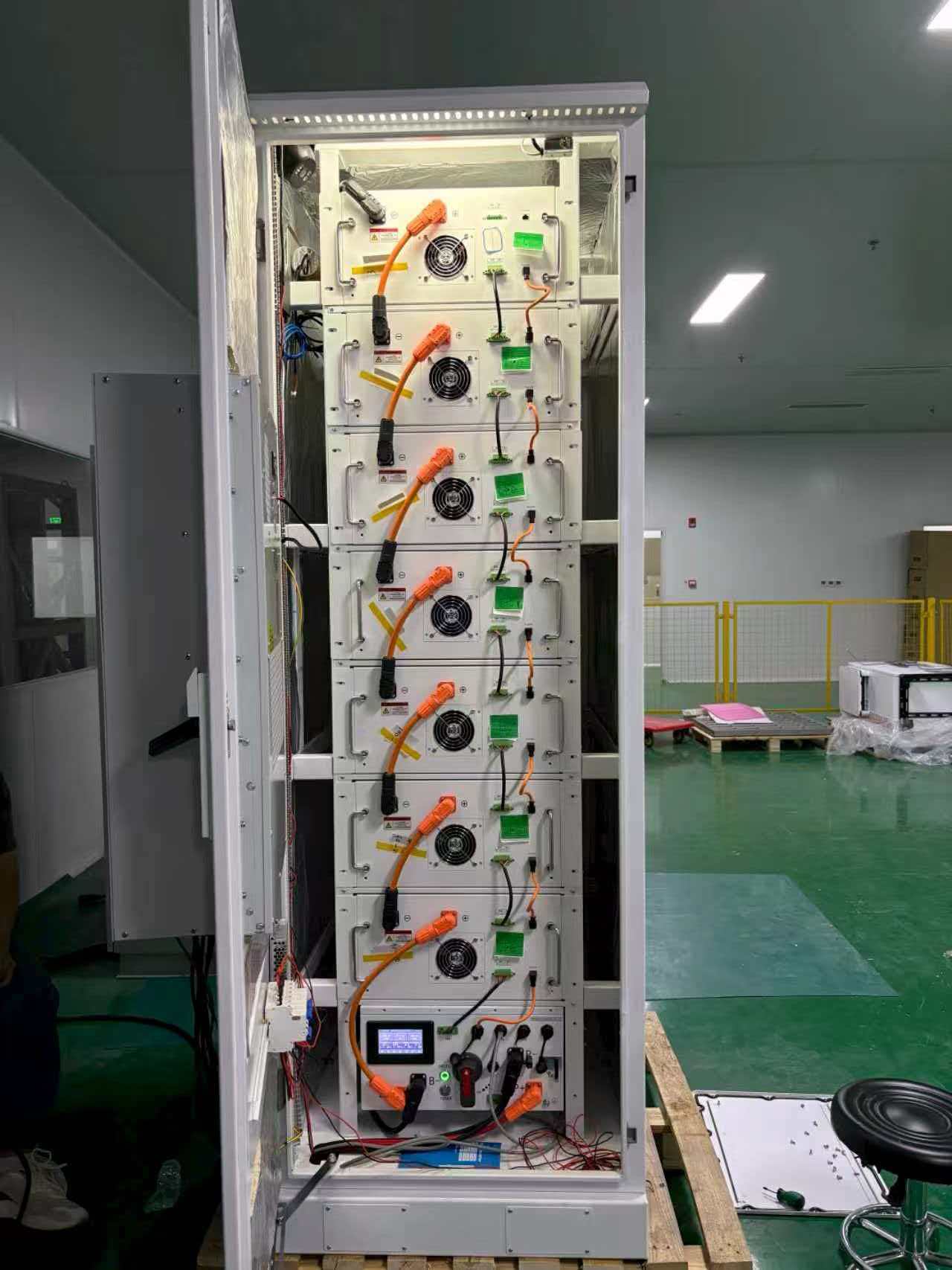

Designed for home environments, this setup combines with a 35kWh PCENERSYS battery to deliver uninterrupted energy supply. The system greatly reduces disruptions caused by frequent power cuts, supports stable operation of essential appliances, and optimizes overall household energy management.

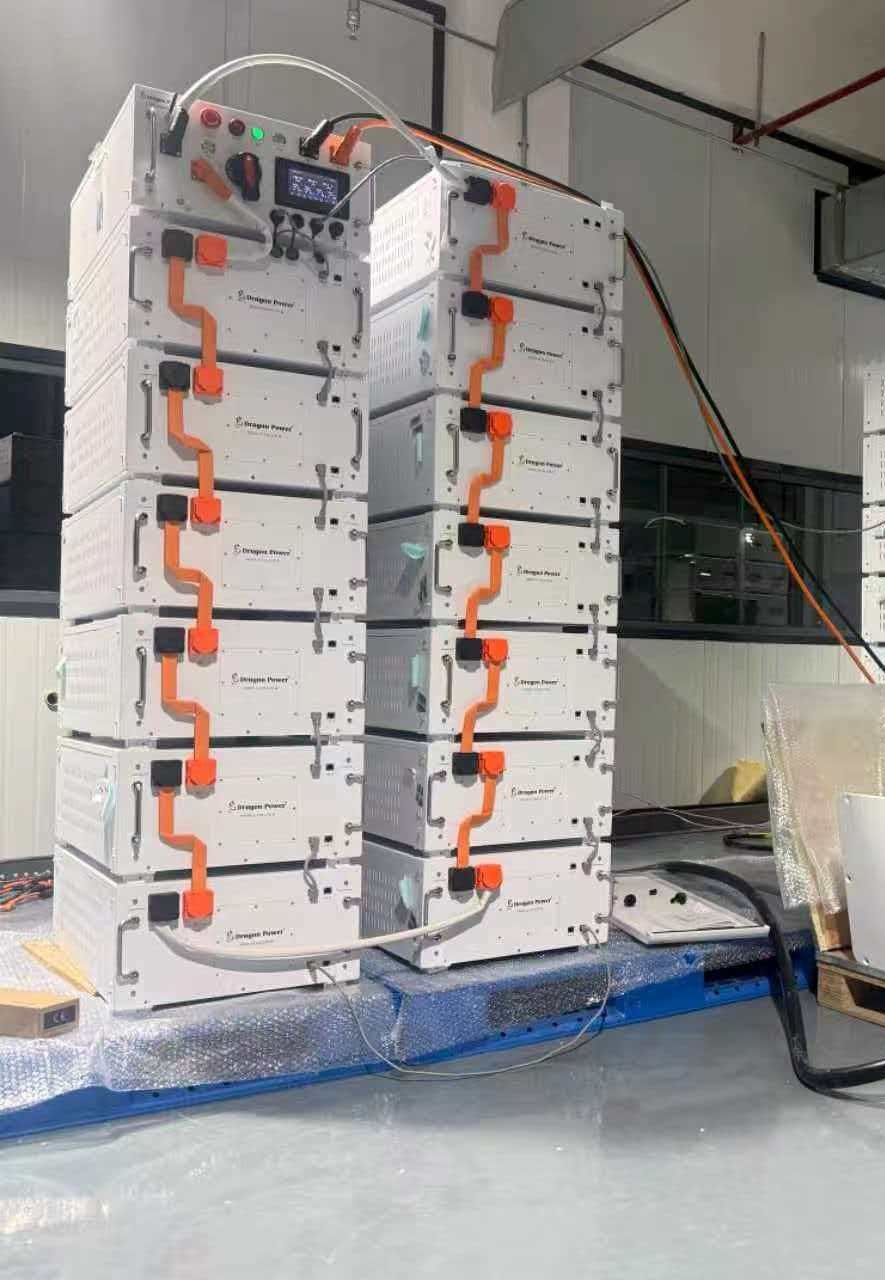

This reliable home energy solution pairs with a 65kWh battery to deliver consistent backup power. It helps homeowners maintain normal power supply for lighting, refrigeration, and other critical loads during blackouts, while maximizing energy utilization and lowering daily energy costs.

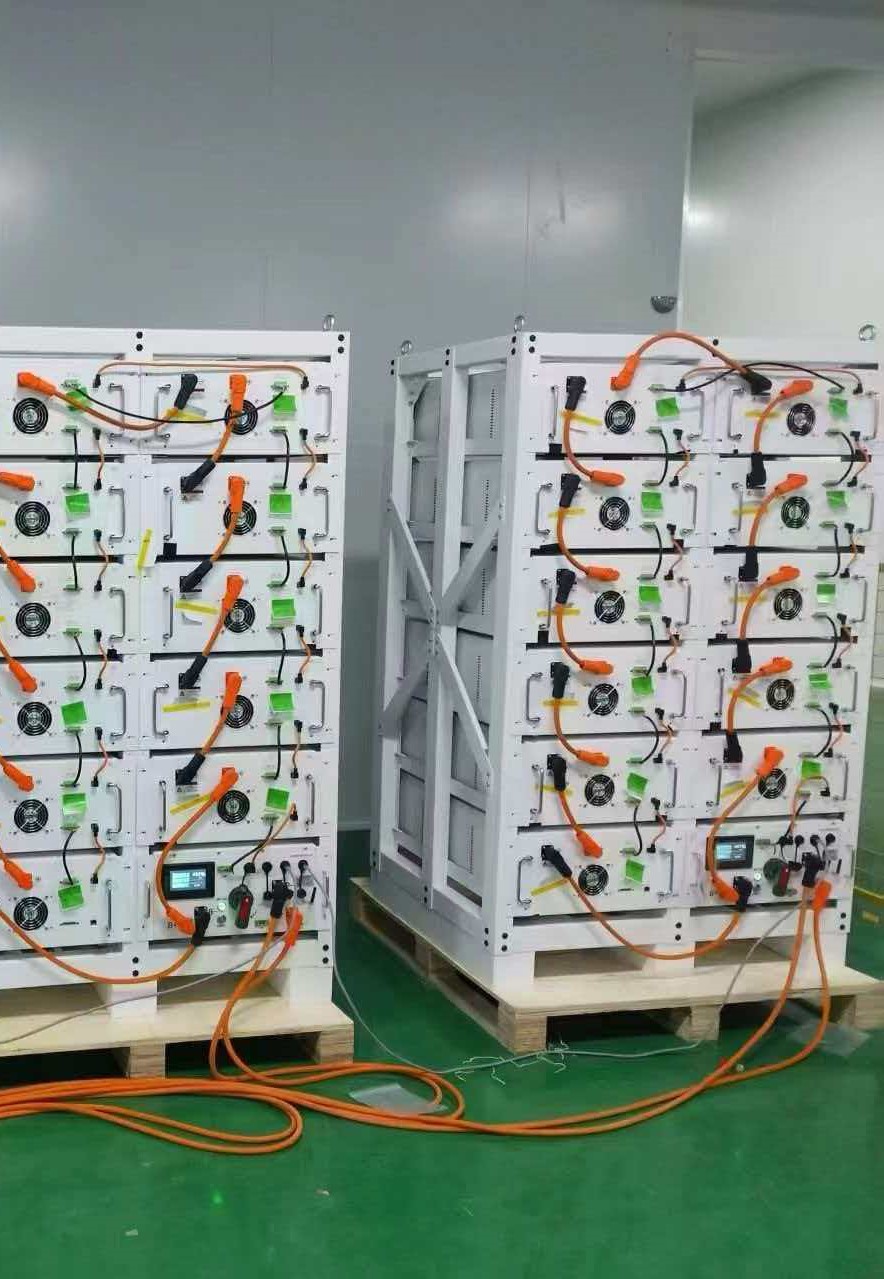

This high-capacity home setup combines with three 55kWh batteries, specially designed for households with higher power demands. It ensures uninterrupted power supply during grid failures, supports smooth operation of multiple electrical appliances, and greatly improves household energy independence and stability.
