38.4V 105Ah/150Ah/230Ah LiFePO4 Golf Cart Batteries
Battery Type：LiFePO4 Golf Cart Batteries
Battery Voltage： 38.4V
Battery Capacity： 105Ah/150Ah/230Ah
Communication：RS485/ CAN (Optional)
Application： Golf cart
Product Category：Lead-Acid Replacement LiFePO₄ Battery
38.4V 105Ah/150Ah/230Ah LiFePO4 Golf Cart Batteries
Product Description

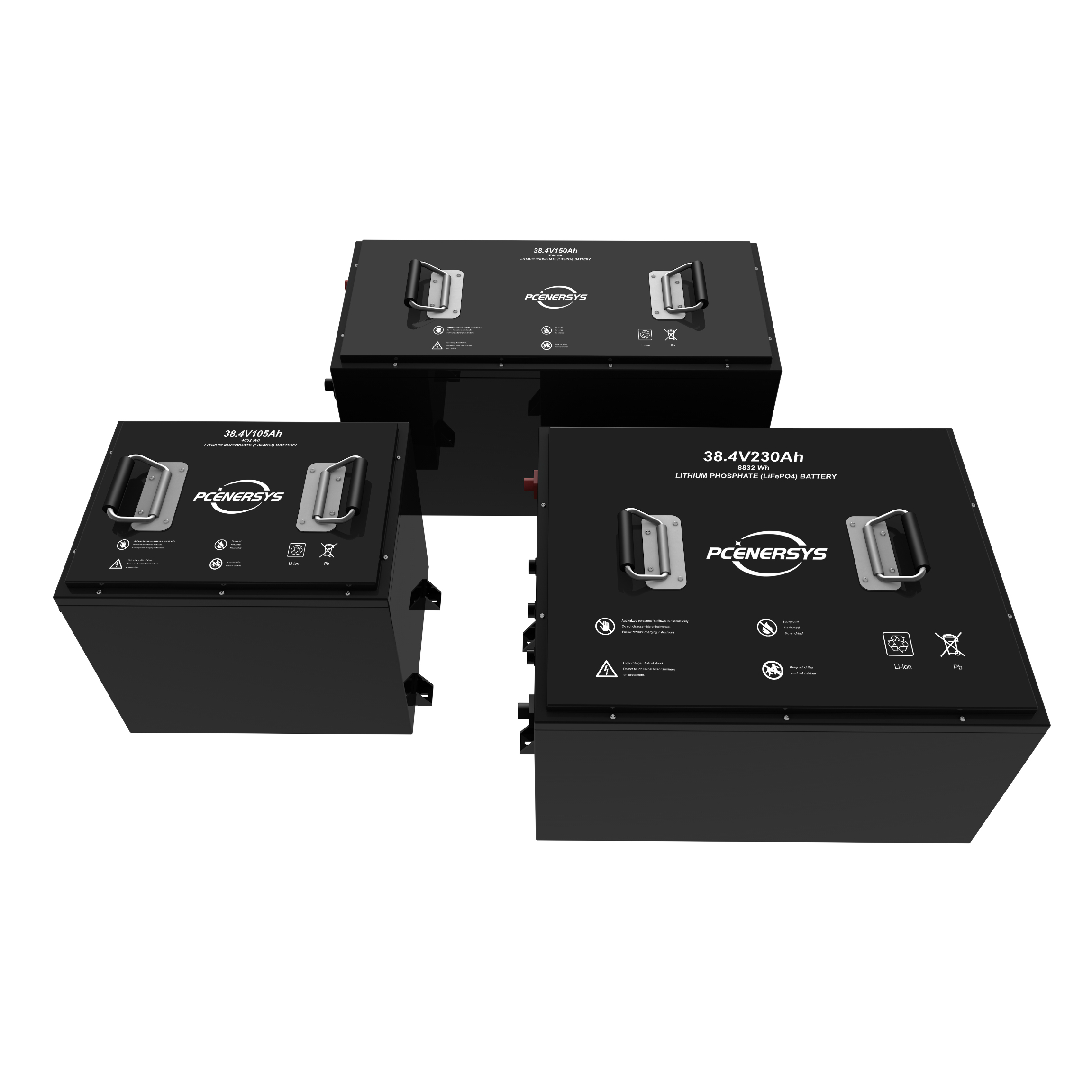

The 38.4V LiFePO4 Golf Cart Battery (Models M12S105BL‑G / M12S150BL‑G / M12S230BL‑G) is a professional lead‑acid replacement lithium iron phosphate battery designed exclusively for golf carts, multi‑seat vehicles and utility electric cars. Built with brand new Grade A LiFePO4 cells and integrated intelligent BMS protection, it ensures ultra‑safe, stable and long‑lasting power supply. Supporting optional RS485/CAN communication protocols, the battery achieves high compatibility with mainstream golf cart systems including EZGO, RXV, YAMAHA and CLUB CAR, featuring easy installation, strong compatibility, flexible parallel expansion and long service life, making it the optimal upgrade solution for golf cart power systems.
Key Advantages
Grade A Cells & Ultra Safe BMS
Adopts brand new A-grade LiFePO4 cells with built-in intelligent BMS protection. Prevents over‑discharge even with lights left on; works with PCENERSYS solenoid valve to fully disconnect power, eliminating safety risks.
Full Brand Compatibility
Perfectly compatible with EZGO, RXV, YAMAHA, CLUB CAR and most golf cart models. Supports regenerative braking systems, with standard brackets and connectors for direct replacement.
10-Year Long Lifespan
Service life up to 10 years, with 5-year limited warranty. Saves up to 80% cost within 5 years compared to lead-acid batteries, greatly reducing replacement and maintenance expenses.
Unlimited Parallel Expansion
Supports unlimited parallel connection to increase capacity and range. Two 38.4V 105Ah batteries in parallel achieve 210Ah, doubling driving distance flexibly.
Easy Installation & Custom Case
Simple plug-and-play installation with standard or custom plastic/metal cases and built‑in handles. Supports customized technical solutions for different vehicle structures.
Smart Monitoring & Communication
Supports RS485/CAN protocols for real-time OEM dashboard monitoring: voltage, current, SOC, cycle count. Enables remote diagnosis and efficient maintenance.
Technical Specifications
| Items | M12S105BL-G | M12S150BL-G | M12S230BL-G |
|---|---|---|---|
| Product Model | M12S105BL-G | M12S150BL-G | M12S230BL-G |
| Cells in series | 12S | 12S | 12S |
| Rated Energy (KWh) | 4.032 | 5.76 | 8.832 |
| Nominal Voltage (V) | 38.4 | 38.4 | 38.4 |
| Nominal Capacity (Ah) | 105 | 150 | 230 |
| Efficiency | ≥96% | ≥96% | ≥96% |
| Cell Type | LiFePO4 | LiFePO4 | LiFePO4 |
| Charge Voltage (V) | 43.8 | 43.8 | 43.8 |
| Standard Charging Current (A) | 21 | 30 | 46 |
| Max. Charging Current (A) | 200 | 250 | 250 |
| Standard Discharge Current (A) | 52.5 | 75 | 115 |
| Max Discharge Current (A) | 200 | 250 | 250 |
| Peak Discharge Current | 500±80A (0.2s) | 500±80A (0.2s) | 500±80A (0.2s) |
| Discharge Cut-off Voltage (V) | 30 | 30 | 30 |
| Charge Temperature Range | 0~60°C | 0~60°C | 0~60°C |
| Discharge Temperature Range | -10°C~60°C | -10°C~60°C | -10°C~60°C |
| Storage Temperature Range | -5~40°C | -5~40°C | -5~40°C |
| Storage Humidity | 65±20%RH | 65±20%RH | 65±20%RH |
| Product Dimensions (L×W×Hmm) | 340×259×280 | 550×265×280 | 485×400×280 |
| Packing Dimensions (L×W×Hmm) | 410×310×320 | 620×315×320 | 555×450×320 |
| Shell Material | Steel | Steel | Steel |
| Net Weight (Kg) | 34 | 48.6 | 73.4 |
| Gross Weight (Kg) | 37 | 52.6 | 78.4 |
| Package Method | 1pc per carton | 1pc per carton | 1pc per carton |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C | ||
| Months Self-discharged | 2% Per Month | 2% Per Month | 2% Per Month |
| SOC Indication | can be customized | can be customized | can be customized |
| Communication Mode | RS485/CAN | RS485/CAN | RS485/CAN |
Application Scenarios & Target Markets
38.4V 105Ah/150Ah/230Ah LiFePO4 Golf Cart Batteries for Low-Speed EVs & Lead-Acid Replacement
Golf Carts (Primary Application)
- Direct replacement for traditional lead-acid batteries in golf carts
- Longer runtime, faster charging, and maintenance-free operation
Electric Sightseeing Vehicles
- Resorts, parks and tourist attraction shuttle vehicles
- Stable power output and extended driving range
Electric Utility Vehicles
- Campuses, factories, warehouses and property management
- Daily transportation, logistics and low-speed mobility
Patrol & Security Vehicles
- Community, industrial park and facility patrol carts
- Reliable power and consistent long-term performance

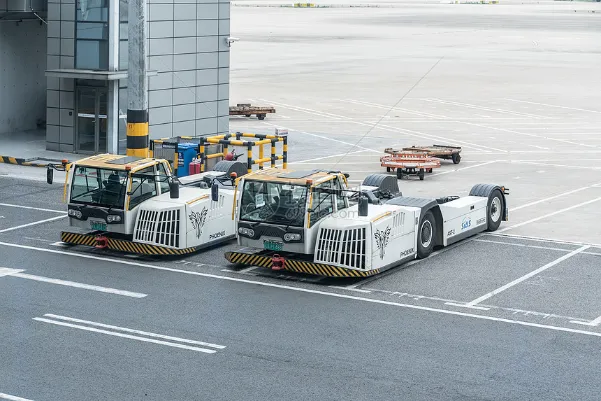

Airport & Large Facility Transport
- Airports, exhibition centers and large venue short-distance transport
- High efficiency, low maintenance and stable power supply
Lead-Acid Battery Replacement
- Upgrade 36V lead-acid systems to high-performance lithium
- Lighter weight, longer life and lower total ownership cost

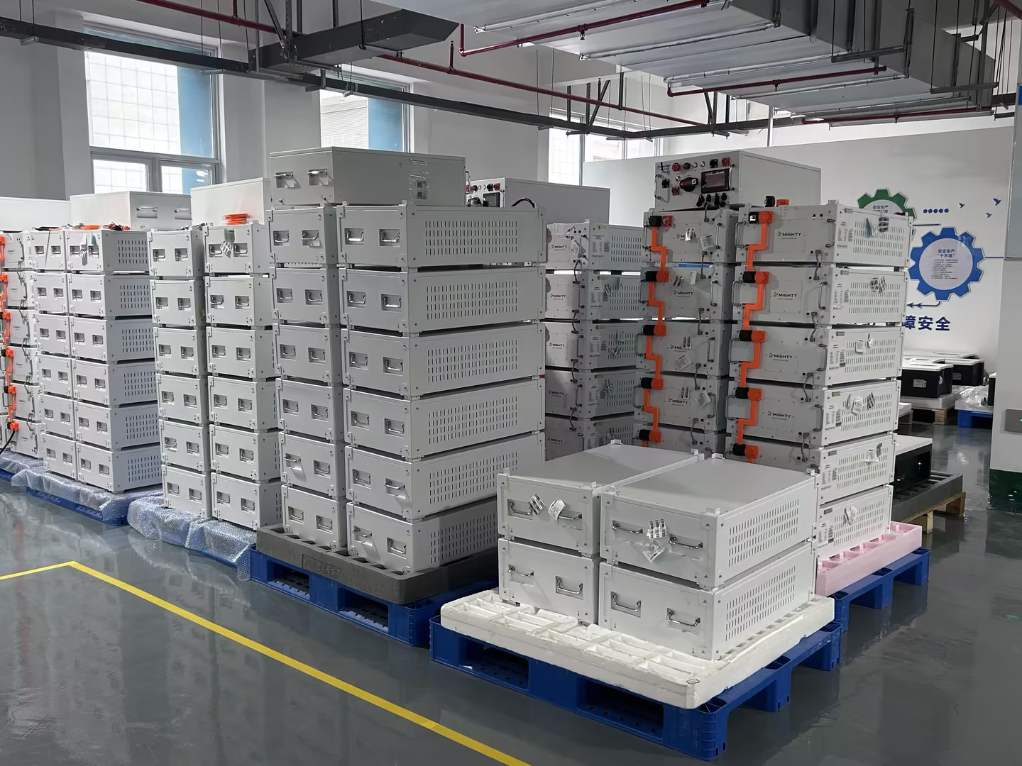

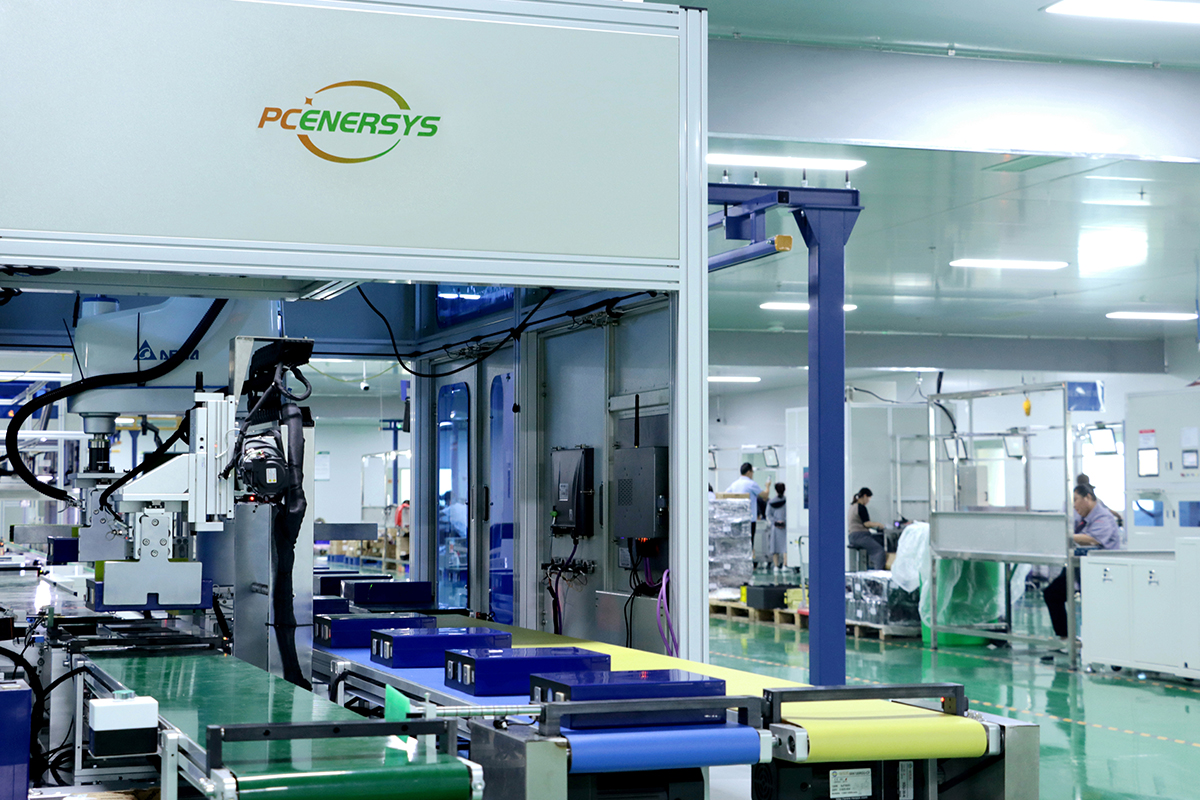

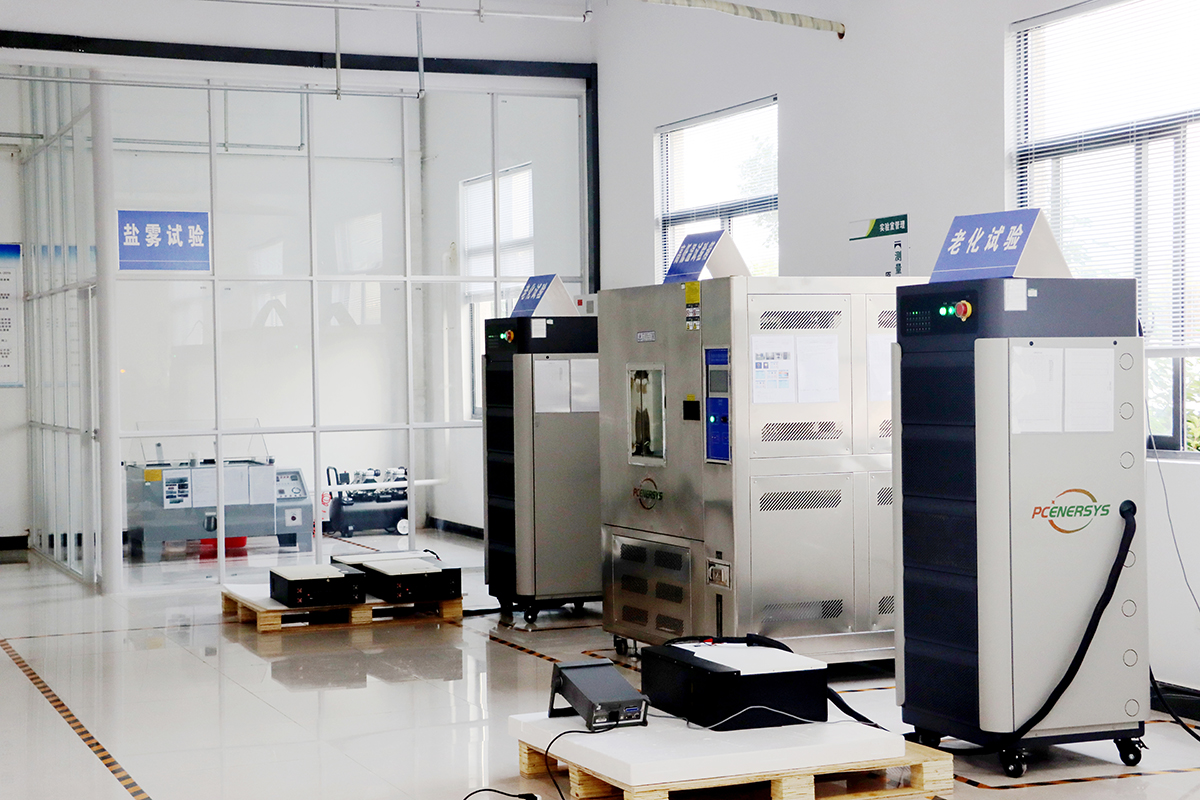

Factory Strength

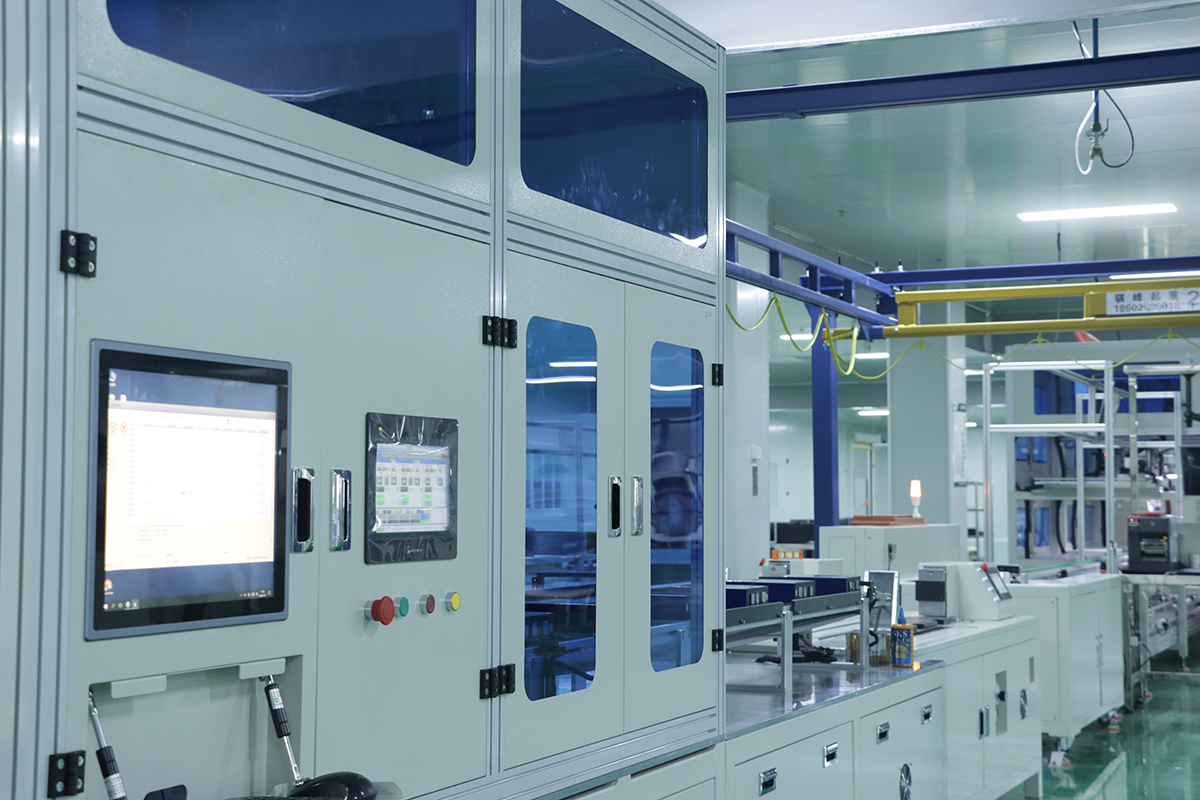

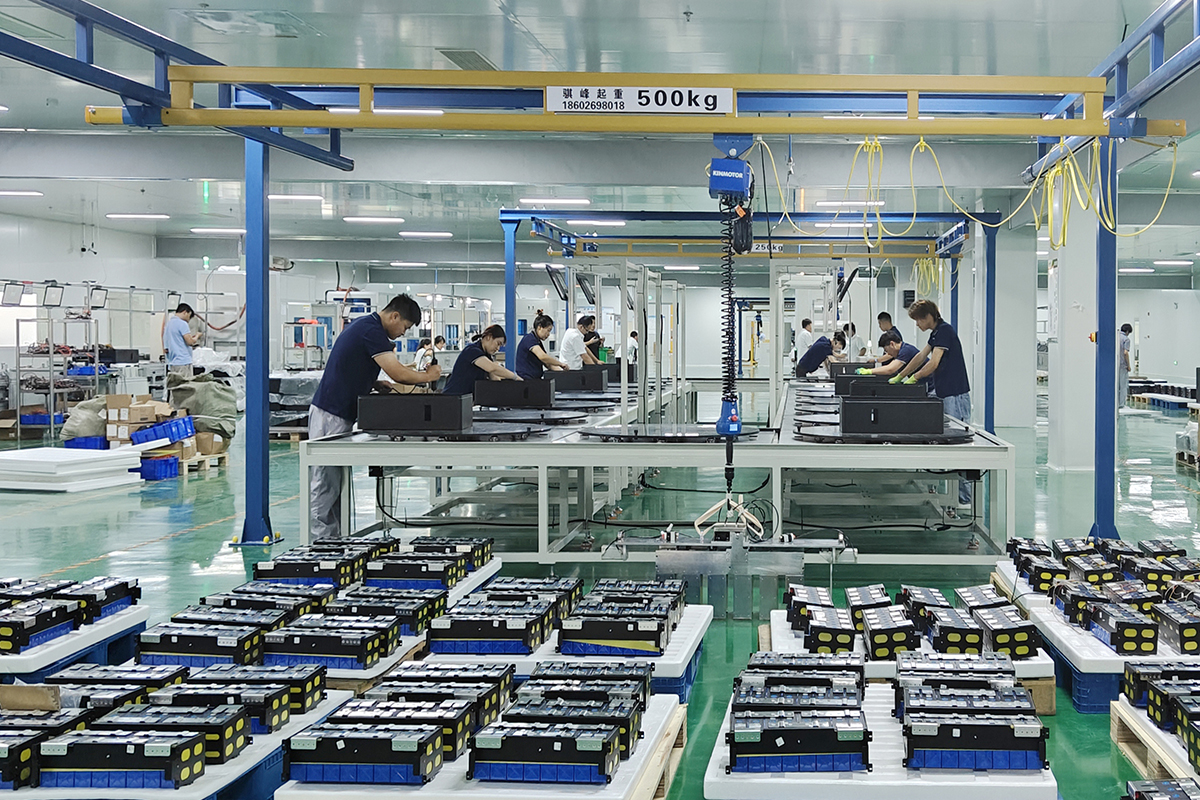

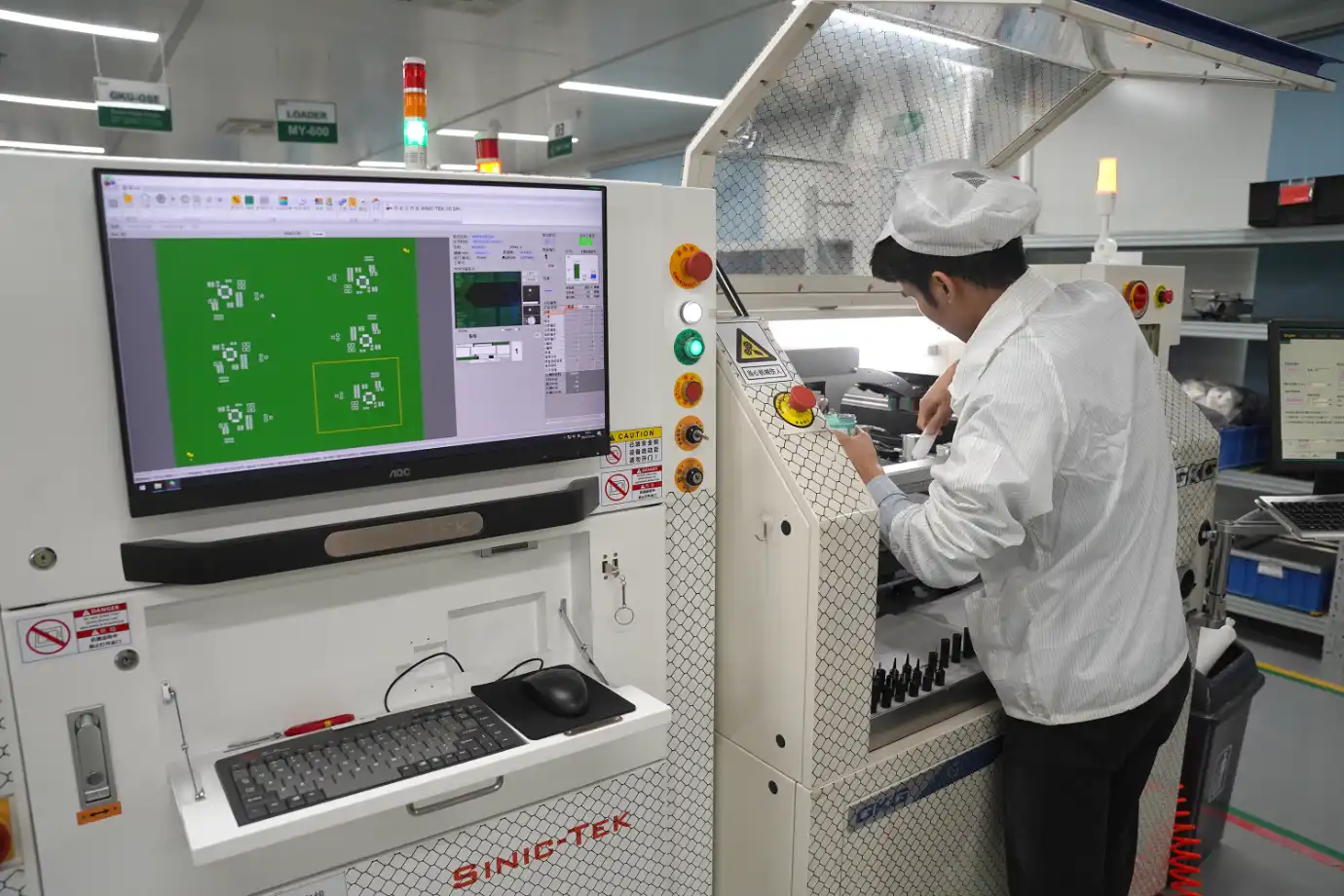

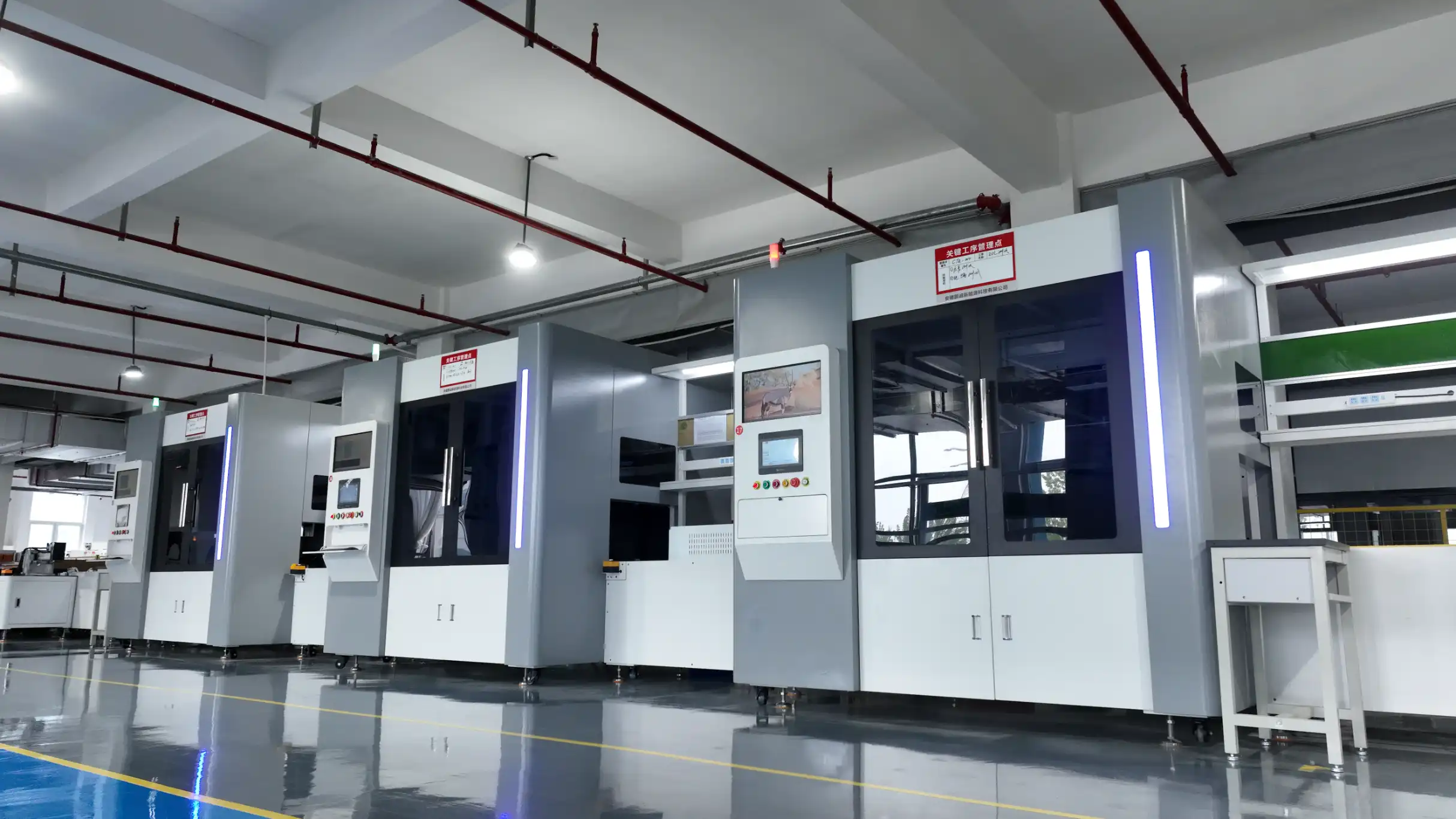

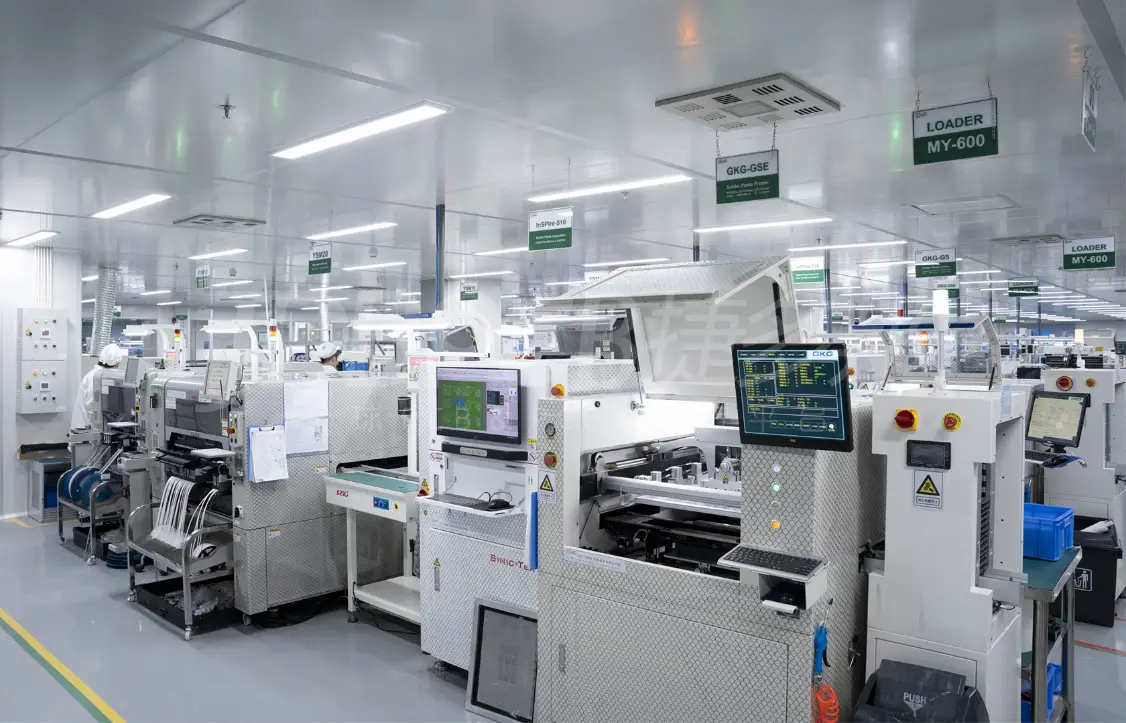

Advanced production equipment, standardized workshop, strict quality control system

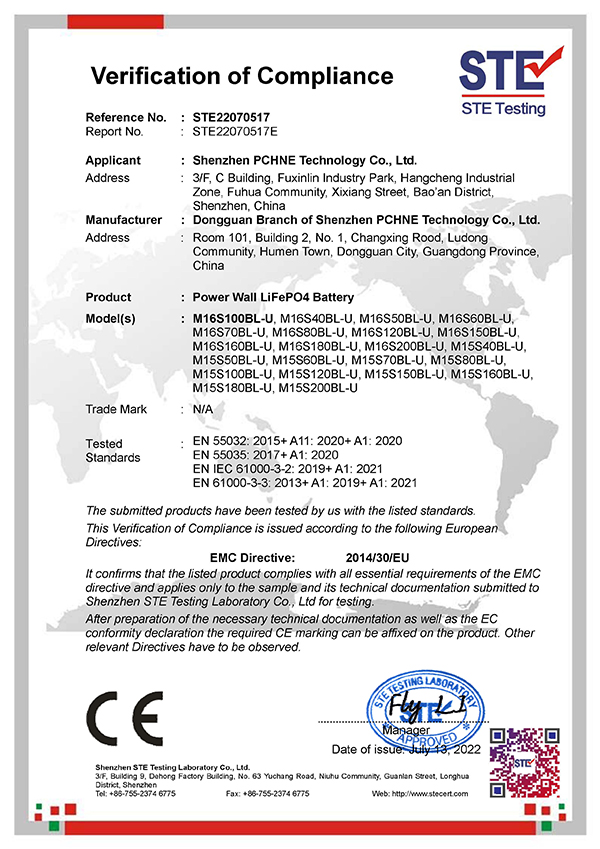

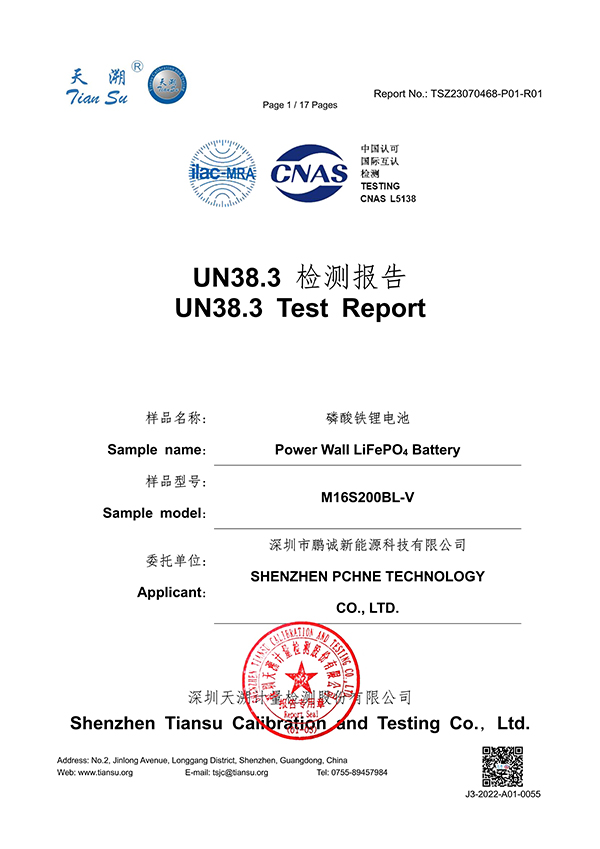

Certifications
