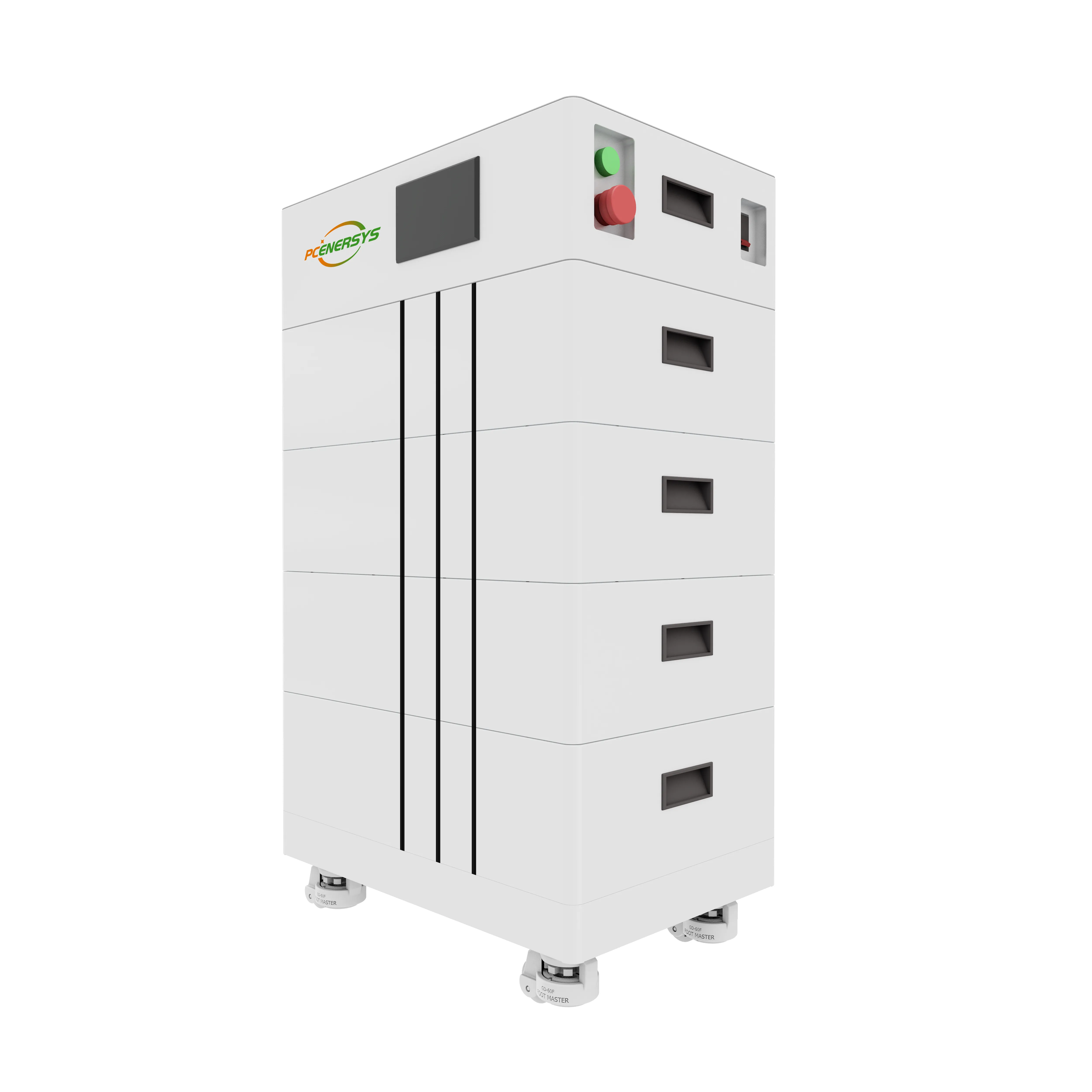

Wall&Floor-Mounted LiFePO4 Energy Storage Battery 51.2V 100Ah 200Ah
2. The charging and discharging efficiency is high, and the number of cycles is more than 6000 times
3. Compatible with most inverters on the market
4. Supporting RS485 and CAN communication
5. Modular design, can be expanded at any time to increase the energy of the system
6. The LCD display monitors the operating status in real time
Product Category：Low Voltage LiFePO₄ Battery System
Wall&Floor-Mounted LiFePO4 Energy Storage Battery 51.2V 100Ah 200Ah
Product Description
The Wall&Floor-Mounted LiFePO4 Energy Storage Battery (51.2V 100Ah/200Ah) is a safe, efficient and flexible low-voltage energy storage system powered by original Grade A LiFePO4 cells. It features ultra-high charging & discharging efficiency, more than 6000 long cycle life, wide inverter compatibility, and intelligent monitoring. Supporting RS485 & CAN communication, it adopts a modular design for flexible capacity expansion. Equipped with an LCD display, it allows real-time working status monitoring, making it an ideal solution for wall-mounted and floor-mounted household and small commercial energy storage applications.
Key Advantages
Original Grade A LiFePO4 Cells
Adopts high-quality original Grade A lithium iron phosphate cells, providing excellent safety performance and high operational reliability for long-term daily use.
Ultra Long Cycle Life
Offers high charging and discharging efficiency with a cycle life of more than 6000 cycles, delivering longer service life and lower long-term operating costs.
Wide Inverter Compatibility
Highly compatible with most mainstream inverter brands in the market, enabling easy system integration and flexible matching for various energy storage solutions.
Intelligent Communication
Supports standard RS485 and CAN communication protocols, realizing stable data transmission and intelligent remote monitoring and control.
Flexible Modular Design
Modular structural design supports free and timely capacity expansion, allowing users to increase system energy and power according to actual demand.
Real-time LCD Monitoring
Built-in LCD digital display for real-time monitoring of battery voltage, current, temperature and working status, ensuring intuitive and safe operation.

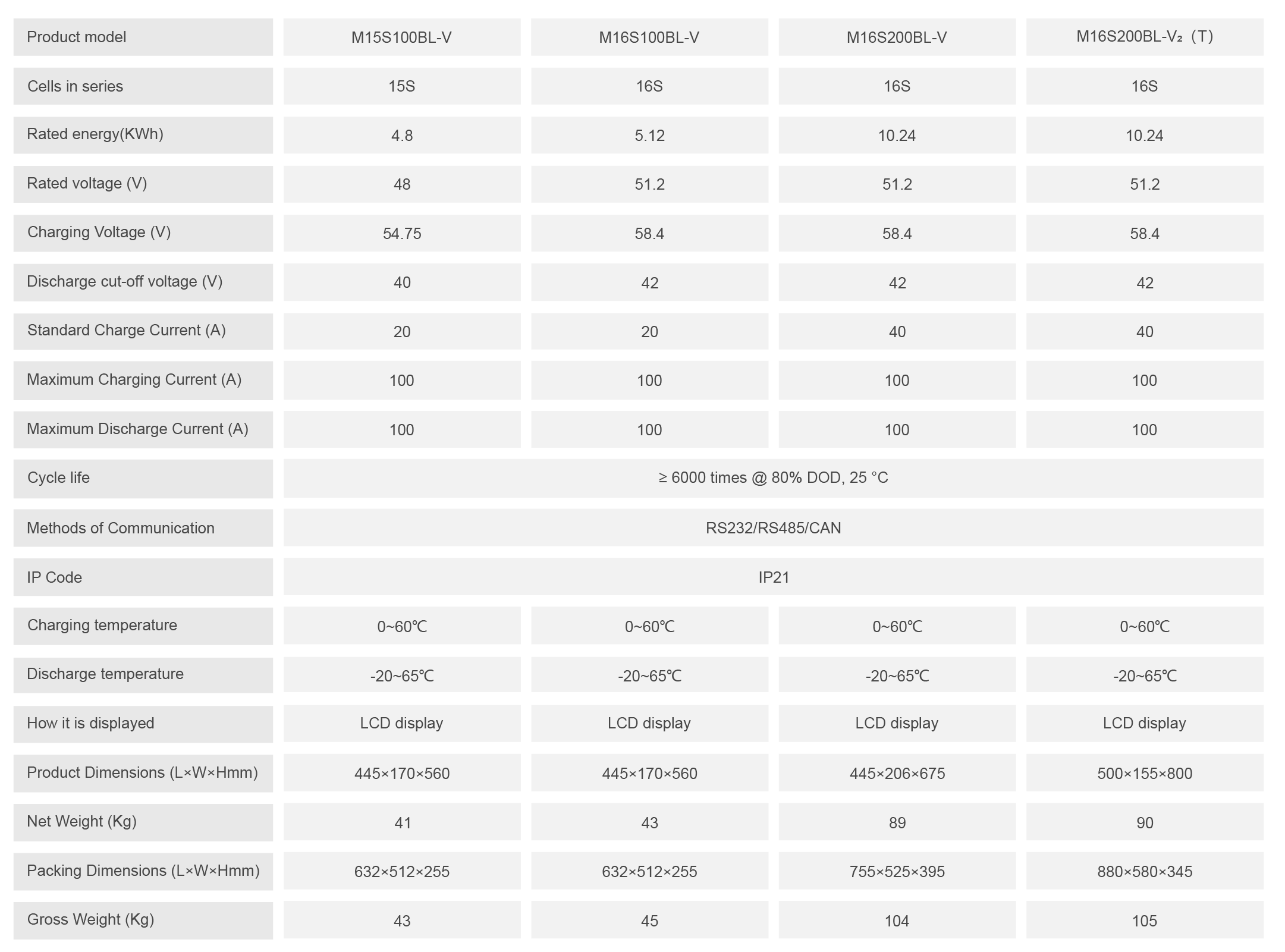

Technical Specifications
| Items | M16S100BL-V₁ | M16S200BL-V₁ |
|---|---|---|
| Product Model | M16S100BL-V₁ | M16S200BL-V₁ |
| Cells In Series | 16S | 16S |
| Rated Energy (KWh) | 5.12 | 10.24 |
| Rated Voltage (V) | 51.2 | 51.2 |
| Charging Voltage (V) | 58.4 | 58.4 |
| Discharge Cut-off Voltage (V) | 42 | 42 |
| Standard Charge Current (A) | 20 | 40 |
| Maximum Charging Current (A) | 100 | 100 |
| Maximum Discharge Current (A) | 100 | 100 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 ℃ | ≥ 6000 times @ 80% DOD, 25 ℃ |
| Methods Of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Charging Temperature | 0~60℃ | 0~60℃ |
| Discharge Temperature | -20~65℃ | -20~65℃ |
| How It Is Displayed | LCD display | LCD display |
| IP Protection | IP21 | IP21 |
| Product Dimensions (L×W×Hmm) | 440×150×560 | 520×150×680 |
| Net Weight (Kg) | ~44 | ~80 |
| Packing Dimensions (L×W×Hmm) | 645×523×340 | 755×595×316 |
| Gross Weight (Kg) | ~50 | ~98 |
Application Scenarios & Target Markets
Wall&Floor-Mounted LiFePO4 Energy Storage Battery 51.2V 100Ah 200Ah for Home & Small Commercial Systems
Residential Solar Energy Storage
- Stores excess PV energy and improves self-consumption rate
- Reduces household electricity costs and optimizes energy usage
Home Backup Power Supply
- Stable backup power during grid outages and blackouts
- Supports lighting, WiFi, refrigerators and essential appliances

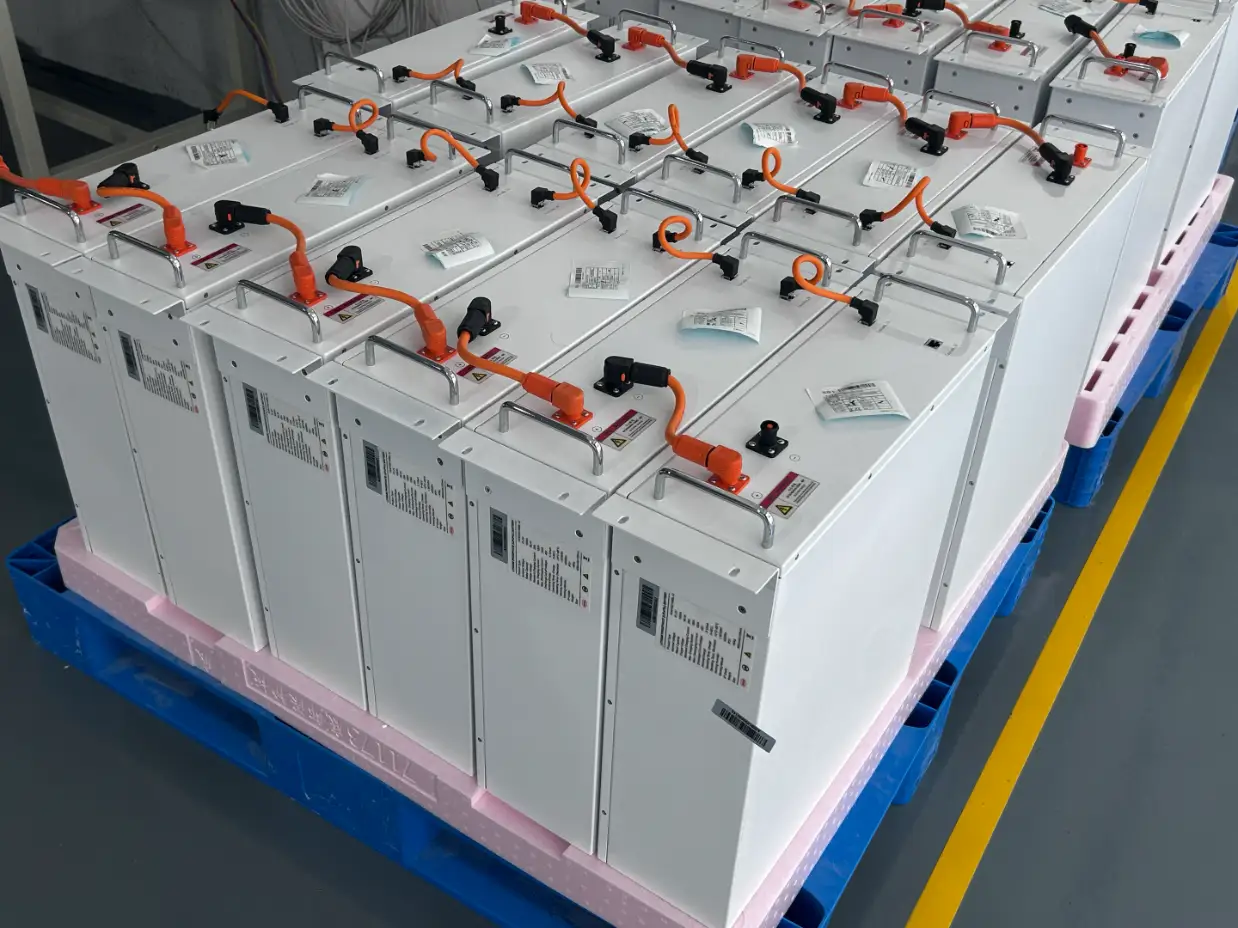

Apartment & Small Space Storage
- Wall-mounted design for limited installation space
- Flexible and space-saving deployment for apartments
Off-Grid & Hybrid Solar Systems
- Ideal for remote homes, cabins and weak-grid areas
- Provides stable and independent off-grid power supply
Small Commercial & Office Use
- Energy storage for offices, retail stores and small businesses
- Reduces energy costs and improves power supply reliability

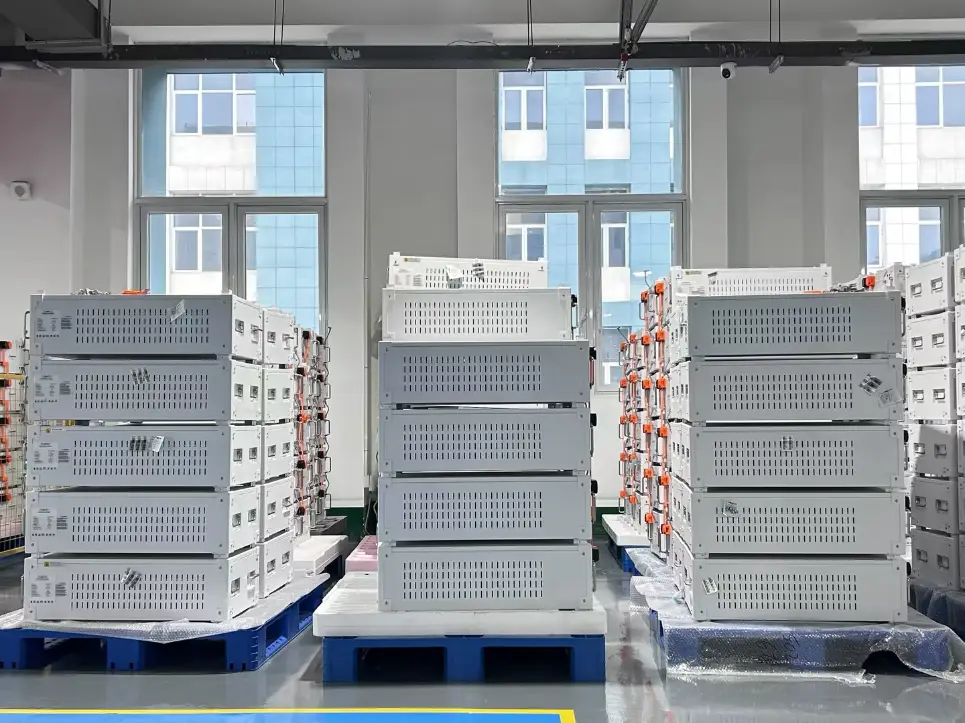

Modular System Capacity Expansion
- Supports parallel connection for flexible capacity expansion
- Scales storage system with growing household energy demands
