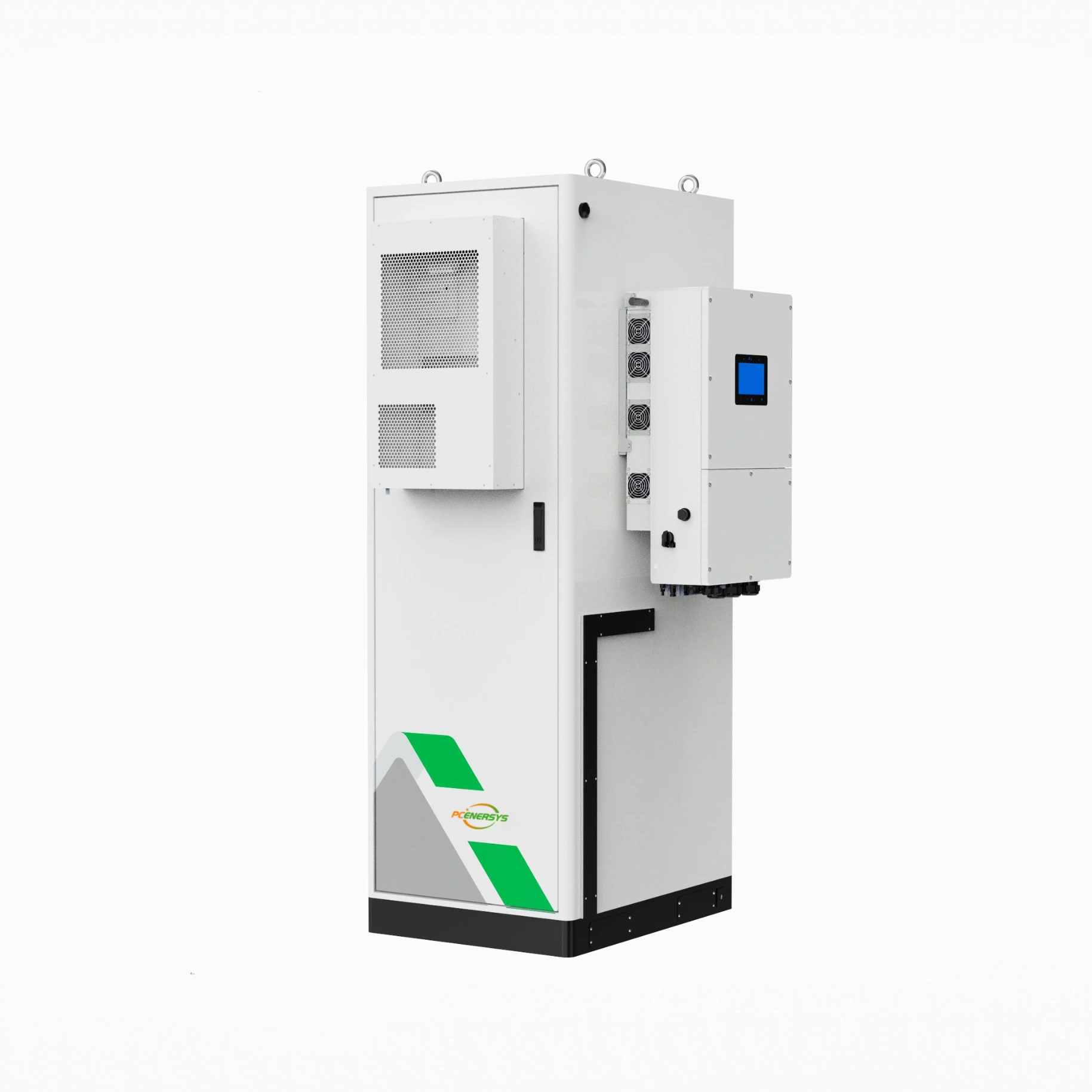

112kWh 50kW Commercial & Industrial LFP Sodium-Ion Battery Energy Storage Cabinet
112kWh 50kW Commercial & Industrial LFP Sodium-Ion Battery Energy Storage Cabinet
Product Description
This 112kWh Commercial & Industrial LFP Battery Energy Storage System is designed for commercial and industrial energy storage applications. Featuring advanced lithium iron phosphate battery technology, a rated battery voltage of 358.4V, and a wide 294–408.8VDC operating range, it delivers reliable energy storage and flexible system integration. Its 157A maximum charge and discharge current, forced air cooling with air conditioning, and modular battery design support efficient energy management, stable temperature control, and flexible system deployment. With an optional external 50kW hybrid inverter, up to 96kW recommended PV module power, integrated BMS protection, a dedicated fire suppression system, and cloud-based intelligent monitoring, it provides a safe, efficient, and scalable solution for diverse C&I energy storage p
Key Advantages
High Energy Storage Capacity
Provides 261kWh rated energy capacity, delivering reliable power storage for commercial and industrial applications with diverse energy demands.
High-Performance LFP Battery System
Features advanced lithium iron phosphate battery technology, a 358.4V rated battery voltage, and a 294–408.8VDC operating range for stable and reliable energy storage.
Efficient Air Cooling & Temperature Control
Adopts forced air cooling with an integrated air conditioner to maintain stable battery operating temperatures, helping improve system reliability under different environmental conditions.
Flexible Hybrid Inverter Integration
Supports an optional external 50kW hybrid inverter with up to 96kW recommended PV module power, enabling flexible solar integration and on-grid and off-grid operation.
Integrated Design & Flexible Expansion
Combines the battery cabinet with integrated BMS, fire suppression, temperature control, and power distribution units, supporting simplified installation and flexible system configuration.
Intelligent Cloud Management & Multi-Level Safety
Features cloud-based remote monitoring, intelligent fault warnings, online diagnosis, and multi-level electrical and fire protection to support reliable operation and efficient system management.
Technical Specifications
| Technical Specifications | ESS-P50E112-B |
|---|---|
| Battery Side Parameters | |
| Battery Type | Lithium Iron Phosphate (LFP) |
| Rated Battery Energy | 112kWh |
| Rated Battery Voltage | 358.4V |
| Battery Voltage Range | 294～408.8V |
| Cell Capacity | 314Ah |
| Battery Pack Configuration | 1P*16S*7S |
| Max.Charge/Discharge Current(DC) | 157A |
| Dimensions of Pure Battery Cabinet (W*D*H) | 1160*760*2300mm |
| Weight | ~1127 Kg |
| Inverter (Optional) | |
| Installation Method | External Mounting |
| Product Model | S6-EH3P50K-H |
| Recommended Max.PV Module Power | 96kW(24kW*4) |
| Rated PV-side Input Voltage | 600V |
| MPPT Voltage Range | 180～850V |
| Max.PV-side Input Current | 40A/40A/40A/40A |
| Rated AC Power | 50kW |
| Rated AC Current | 76.0A/72.2A |
| Rated AC Voltage | 3/N/PE,220V/380V |
| Rated AC Frequency | 50/60Hz |
| Max.Unbalanced Power Per Phase (Off-grid) | 33% of rated power |
| Power Factor | >0.99 |
| Total Current Harmonic Distortion (THDi) | <3% |
| Anti-islanding Protection | Standard equipped |
| Operation Mode | Grid-tied & off-grid integrated |
| System Parameters | |
| Protection Rating | IP54 |
| Operating Humidity | <90% |
| Ambient Temperature | -25℃ ~60℃ (derating above 45℃) |
| Cooling Method | Forced air cooling with air conditioner |
| Altitude | 3000m (derating above 2000m) |
| BMS Communication | CAN/RS485 |
| Dimensions(W*D*H) | 1075mm*1160mm*2300mm(including inverter) |
| Weight | ~1200Kg |
Application Scenarios & Target Markets
Perfect for hybrid solar systems, high electricity price regions and energy-saving users
Commercial Energy Storage Systems
Ideal for commercial buildings and facilities requiring reliable energy storage and flexible power management.
Provides 112kWh rated energy capacity to support daily energy management, peak shaving, and backup power applications.
Supports flexible system integration to accommodate different commercial energy demands.
Industrial Energy Storage Systems
Designed for industrial facilities requiring high-voltage battery storage and reliable power support.
Features an 600V rated battery voltage and 157A maximum charge and discharge current.
Integrates with an external 50kW hybrid inverter to support industrial energy management and power supply.
Solar PV Energy Storage Systems
Ideal for commercial and industrial solar PV projects requiring efficient renewable energy storage and utilization.
Supports integration with an external hybrid inverter featuring up to 100kW recommended PV module power.
Features a wide 150–850V MPPT voltage range to support flexible solar PV system integration.
Backup Power Energy Storage Systems
Suitable for commercial and industrial backup power applications requiring reliable energy supply during grid interruptions.
Supports integrated on-grid and off-grid operation for flexible power management.
Combines LFP battery technology, BMS protection, and multi-level fire protection for enhanced system safety.
Peak Shaving & Energy Arbitrage Systems
Ideal for commercial and industrial facilities seeking to optimize electricity costs through energy storage.
Provides112kWh rated energy capacity to store electricity during off-peak periods and support power demand during peak hours.
Supports flexible energy management through hybrid inverter integration and intelligent EMS monitoring.
Microgrid & Infrastructure Energy Storage Systems
Designed for microgrid, infrastructure, and distributed energy projects requiring flexible energy storage solutions.
Supports on-grid and off-grid operation with an external 50kW hybrid inverter.
Features intelligent liquid cooling, cloud-based monitoring, and remote fault warnings for efficient system management.
