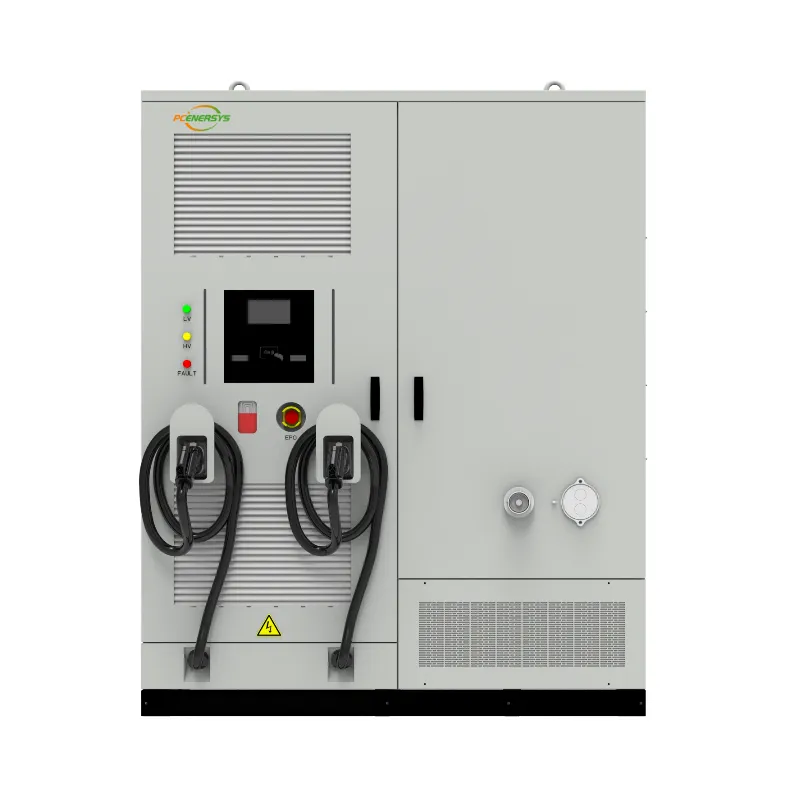

261kWh Solar Energy Storage & EV Charging System 125kW DC Integrated Cabinet
261kWh Solar Energy Storage & EV Charging System 125kW DC Integrated Cabinet
Product Description
Outdoor Energy Storage Cabinet integrates PV generation, battery storage, PCS, and DC fast charging into one compact system, simplifying deployment and reducing installation complexity. Its intelligent energy management prioritizes solar power for EV charging and stores surplus PV energy, helping reduce grid consumption and electricity costs. Dual-path MPPT improves solar energy utilization, while seamless on/off-grid switching provides reliable power for critical loads during outages. With dual-port DC fast charging, modular architecture, IP55 protection, and remote system management, it delivers a flexible and reliable solution for C&I sites, EV charging stations, and distributed energy applications.
Key Advantages
Seamless On/Off-Grid Switching
Automatically switches between grid-connected and off-grid modes during power outages, maintaining reliable power for critical loads.
Dual-Port DC Fast Charging
Supports simultaneous fast charging for two EVs, improving charging efficiency while optimizing the use of solar and stored energy.
Modular & Safe Outdoor Design
Features modular PCS, front-access maintenance, IP55 protection, air cooling, and integrated fire protection for flexible deployment, easier maintenance, and reliable outdoor operation.
All-in-One Solar + Storage + EV Charging
Integrates PV generation, battery storage, PCS, and DC charging into one system, simplifying deployment and reducing installation complexity.
Dual-Path MPPT & High Solar Efficiency
Directly tracks PV maximum power and efficiently charges the battery, reducing energy conversion losses and improving solar utilization.
Intelligent Energy Management
Prioritizes PV power for EV charging and stores surplus energy in the battery, helping reduce grid consumption and electricity costs.
Technical Specifications
| Parameters | Monet‑125TS(DC100)(253kWh)(EV160) |
|---|---|
| Grid port | |
| Rated AC power | 125kW |
| Max.AC power | 137.5kW |
| Rated current | 180A |
| Max.current | 198A |
| Rated voltage | 400Vac, 3W+PE |
| Rated frequency | 50/60Hz (±5Hz) |
| PV port | |
| PV input power | 100kW |
| Max.PV input voltage | 250V~685V |
| PV Max.current | 160A*2 |
| MPPT channels | 2 |
| Battery port | |
| Battery rated capacity | 253kWh |
| Battery rated voltage | 806.4V |
| Battery type | Lithium iron phosphate battery (LFP) |
| Battery cell capacity | 314Ah |
| Series of Battery | 1P*18S*14S |
| Maximum charge and discharge current | 157A |
| EV Charger | |
| Charger connector | CCS2 |
| Output voltage | 150Vdc ~ 1000Vdc |
| Rated output power | 160kW |
| Maximum output current | 250A |
| Authorization | NFC card swiping |
| General Parameters | |
| Cooling mode | Air cooling |
| Degree of protection | IP55 |
| Shutdown self‑discharge | < 0.1%Rated power (Without transformer) |
| Relative humidity | 0 ~ 95% (no condensation) |
| Noise | < 75dB |
| Ambient temperature | -25℃ to +60℃(with derating at temperatures above 45℃) |
| Altitude | 3000m (> 2000m reduction) |
| Display | LCD |
| BMS Communication | CAN |
| EMS Communication | Ethernet / 485 |
| Emergency stop protection | Equipped with emergency stop button, with emergency stop protection function |
| Dimension (W * D * H) | 2000*1350*2300mm |
| Weight (approx.) | 3500kg |
Application Scenarios & Target Markets
Professional Monet Series Designed for Solar, Storage & EV Charging
C&I Solar + Storage
- Stores excess solar energy and increases PV self-consumption for commercial and industrial users
- Reduces electricity costs through intelligent energy management and peak demand optimization
Solar-Powered EV Charging
- Prioritizes PV power for EV charging and stores surplus solar energy in the battery
- Reduces grid electricity consumption and improves renewable energy utilization
Commercial EV Charging Stations
- Supports dual-port DC fast charging for simultaneous charging of two EVs
- Uses battery storage to reduce grid load and improve charging capacity during peak periods
Backup Power for Critical Loads
- Provides seamless on/off-grid switching during grid outages
- Maintains reliable power for EV charging, commercial facilities, and other critical loads
Distributed Energy Microgrids
- Integrates PV generation, battery storage, and intelligent energy management in one system
- Supports flexible energy dispatch and stable operation for distributed microgrid applications
Industrial & Remote Energy Systems
- Provides an integrated solar-storage-charging solution for farms, remote sites, and industrial facilities
- Modular architecture adapts system capacity and functions to different energy requirements
