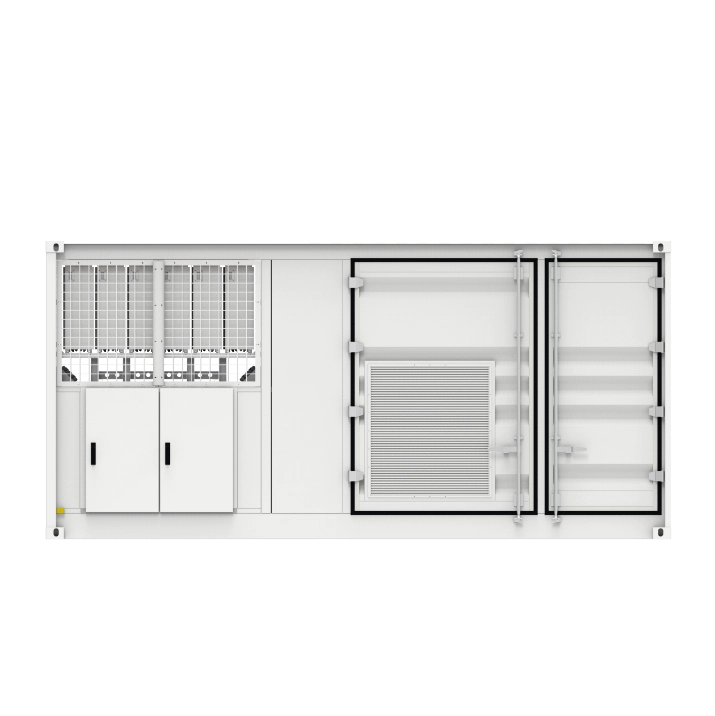

PCS+EMS+Transformer ESS Electrical Container (Dry-type)High Voltage 10KV 15KV 20KV 35KV on grid
PCS+EMS+Transformer ESS Electrical Container (Dry-type)High Voltage 10KV 15KV 20KV 35KV on grid
Product Description
Engineered for utility-scale solar-plus-storage and commercial facilities, the PCS+EMS+Transformer ESS Electrical Container (Dry-type)High Voltage 10KV 15KV 20KV 35KV on grid delivers a fully integrated power station solution combining PCS, step-up transformation, and switchgear in a turnkey enclosure. Its innovative architecture features string-level PCS management that directly couples to battery racks, preventing cross-battery circulating currents and maximizing energy yield during charge and discharge cycles. By combining a dry-type transformer with direct grid-tied AC output, this robust unit minimizes field installation complexity, reduces system downtime, and accelerates payback for project developers.
Key Advantages
2.5MW High Power & Capacity
Delivers high-power output with optimized energy density, meeting the heavy-duty energy storage demands of ground-mounted stations and large industrial facilities.
All-in-One Integrated Architecture
Combines the Power Conversion System (PCS) and step-up transformer into a single integrated unit, maximizing overall energy efficiency, system safety, reliability, and project cost-effectiveness.
High Efficiency & Cluster-Level Management
Features individual string-level management that minimizes parallel battery connections, boosting safety, maximizing capacity utilization, and eliminating circulating current losses.
Fault-Tolerant Safety & Reliability
Employs an interconnected yet physically isolated design between the PCS and transformer, allowing rapid partial isolation and quick troubleshooting in the event of a fault.
Streamlined Installation & Maintenance
Utilizes standardized AC/DC architecture for complete turnkey delivery, significantly accelerating field construction, commissioning, and ongoing maintenance.
Intelligent Monitoring & Scalable Deployment
Supports modular capacity expansion alongside smart remote monitoring, automated fault alarms, and real-time operational optimization across microgrids, industrial parks, and utility stations.
Technical Specifications
| Parameters | Alice‑20C‑2500‑MV‑D/O |
|---|---|
| DC Side Parameters | |
| Operating Voltage Range | 1000~1500V |
| Maximum DC Current | 206A * 12 |
| Number of DC Inputs | 12 |
| AC Low‑Voltage Side Parameters | |
| Rated/Maximum AC Power | 2500/2750kW |
| Rated Grid Voltage | 690V |
| Rated AC Frequency | 50/60 Hz ±5 Hz |
| Total Harmonic Distortion (THDi) | <3% (rated power) |
| Power Factor | -1 leading to +1 lagging |
| AC High‑Voltage Side Parameters | |
| Transformer Rated Power | 2500kW |
| Transformer Maximum Power | 2750 kW |
| Voltage Ratio | 10~35kV |
| Transformer Type | Dry‑type/Oil‑immersed transformer |
| General Parameters | |
| Protection Rating | IP54, C4 Corrosion Protection |
| Relative Humidity | 0~100% (No condensation) |
| Ambient Temperature | -30℃ to 60℃ (Derating above 45℃) |
| Cooling Method | Air‑cooling |
| Altitude | 3000m (Derating above 3000m) |
| Communication Interface | RS485/CAN/Ethernet |
| Dimensions (W*D*H) mm | 6058 * 2438 * 2896mm |
| Weight (approx.) | 13.8t |
