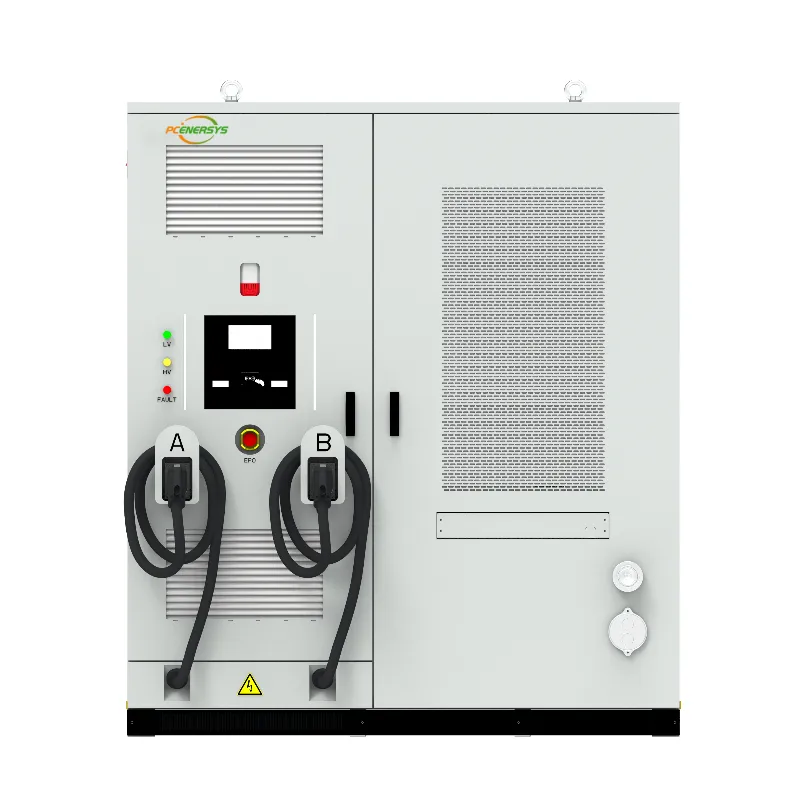

253kWh Solar Energy Storage & EV Charging System 125kW DC Integrated Cabinet
253kWh Solar Energy Storage & EV Charging System 125kW DC Integrated Cabinet
Product Description
Outdoor Energy Storage Cabinet integrates PV generation, battery storage, PCS, and DC fast charging into one compact system, providing a complete solution for solar energy utilization and EV charging. It helps reduce wasted solar power and electricity costs by prioritizing PV power for EV charging and storing surplus energy for later use. With seamless on/off-grid switching, dual-MPPT technology, and dual-port DC fast charging, it ensures flexible and reliable power supply for different operating conditions. Modular architecture, IP55 protection, and intelligent energy management make the system easy to deploy and suitable for commercial sites, EV charging stations, and other distributed energy applications.
Key Advantages
All-in-One Solar + Storage + EV Charging
Integrates battery storage, modular PCS, PV DC modules, EV charging modules, EMS, power distribution, thermal management, and fire protection into one compact system. The integrated architecture simplifies deployment while enabling PV self-consumption, energy storage, and EV charging in a single solution.
Intelligent PV & Energy Management
Uses dual-MPPT technology to directly track and maximize PV power generation, reducing conversion losses and improving renewable energy utilization. The intelligent energy management system prioritizes PV power for EV charging, stores surplus solar energy, and dynamically adjusts charging power when available energy is insufficient.
Seamless On/Off-Grid Switching
Supports automatic and seamless switching between grid-connected and off-grid modes during power outages, helping maintain continuous power for EV charging and critical loads. This provides greater energy resilience for commercial facilities and distributed energy applications.
Dual-Port DC Fast Charging
Features dual-port DC fast charging to support simultaneous charging of two EVs, improving charging efficiency and equipment utilization. The integrated solar-storage-charging architecture also helps reduce grid demand and optimize charging costs during high-load periods.
Safe, Reliable & Outdoor-Ready Design
Built with IP55 protection, forced-air cooling, and comprehensive active safety, fire protection, and explosion prevention measures for stable outdoor operation. The integrated environmental and fire control systems provide enhanced protection for batteries, power electronics, and charging equipment.
Modular & Intelligent System Management
Adopts a modular architecture that allows different functional modules to be configured according to site capacity and application requirements. The local control screen enables real-time system monitoring and energy strategy management, while remote upgrade capabilities simplify operation and maintenance.
Technical Specifications
| Parameters | Monet‑125TS(DC100)(253kWh)(EV160) |
|---|---|
| Grid port | |
| Rated AC power | 125kW |
| Max.AC power | 137.5kW |
| Rated current | 180A |
| Max.current | 198A |
| Rated voltage | 400Vac, 3W+PE |
| Rated frequency | 50/60Hz (±5Hz) |
| PV port | |
| PV input power | 100kW |
| Max.PV input voltage | 250V~685V |
| PV Max.current | 160A*2 |
| MPPT channels | 2 |
| Battery port | |
| Battery rated capacity | 253kWh |
| Battery rated voltage | 806.4V |
| Battery type | Lithium iron phosphate battery (LFP) |
| Battery cell capacity | 314Ah |
| Series of Battery | 1P*18S*14S |
| Maximum charge and discharge current | 157A |
| EV Charger | |
| Charger connector | CCS2 |
| Output voltage | 150Vdc ~ 1000Vdc |
| Rated output power | 160kW |
| Maximum output current | 250A |
| Authorization | NFC card swiping |
| General Parameters | |
| Cooling mode | Air cooling |
| Degree of protection | IP55 |
| Shutdown self‑discharge | < 0.1%Rated power (Without transformer) |
| Relative humidity | 0 ~ 95% (no condensation) |
| Noise | < 75dB |
| Ambient temperature | -25℃ to +60℃(with derating at temperatures above 45℃) |
| Altitude | 3000m (> 2000m reduction) |
| Display | LCD |
| BMS Communication | CAN |
| EMS Communication | Ethernet / 485 |
| Emergency stop protection | Equipped with emergency stop button, with emergency stop protection function |
| Dimension (W * D * H) | 2000*1350*2300mm |
| Weight (approx.) | 3500kg |
Application Scenarios & Target Markets
Professional Monet Series Designed for Solar, Storage & EV Charging
C&I Solar + Storage
- Stores excess solar energy and increases PV self-consumption for commercial and industrial users
- Reduces electricity costs through intelligent energy management and peak demand optimization

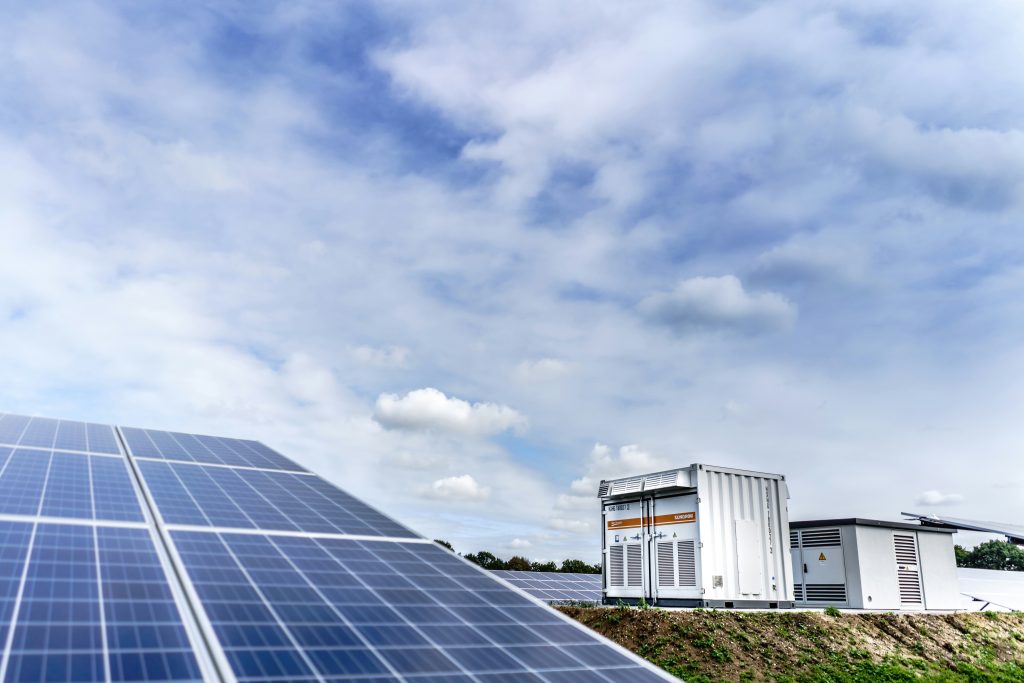

Solar-Powered EV Charging
- Prioritizes PV power for EV charging and stores surplus solar energy in the battery
- Reduces grid electricity consumption and improves renewable energy utilization
Commercial EV Charging Stations
- Supports dual-port DC fast charging for simultaneous charging of two EVs
- Uses battery storage to reduce grid load and improve charging capacity during peak periods
Backup Power for Critical Loads
- Provides seamless on/off-grid switching during grid outages
- Maintains reliable power for EV charging, commercial facilities, and other critical loads
Distributed Energy Microgrids
- Integrates PV generation, battery storage, and intelligent energy management in one system
- Supports flexible energy dispatch and stable operation for distributed microgrid applications
Industrial & Remote Energy Systems
- Provides an integrated solar-storage-charging solution for farms, remote sites, and industrial facilities
- Modular architecture adapts system capacity and functions to different energy requirements
