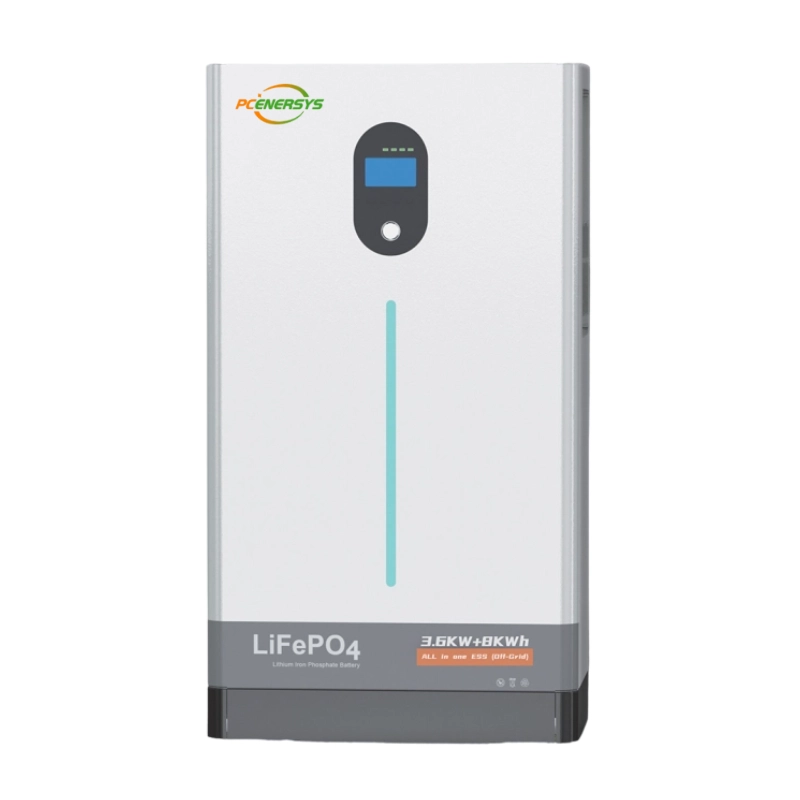

3.6kW 8kWh All-in-One Home Energy Storage System
3.6kW 8kWh All-in-One Home Energy Storage System
Product Description
This 3.6kW/8kWh all-in-one home energy storage system combines Grade A LiFePO4 battery cells with a high-efficiency pure sine wave inverter to provide reliable solar energy storage and backup power for residential applications. Featuring 6,000+ charge-discharge cycles, an integrated BMS protection system, and support for both solar PV and grid inputs, it ensures safe, stable, and efficient operation. Its compact design, enclosed protective structure, and real-time LCD monitoring make it a space-saving and user-friendly solution for modern home energy storage.
Key Advantages
Grade A LiFePO4 Battery Cells
Uses premium Grade A lithium iron phosphate cells, delivering high charging and discharging efficiency, enhanced safety, and over 6,000 charge-discharge cycles.
3.6kW Pure Sine Wave Inverter
Features a high-efficiency 3.6kW pure sine wave inverter, providing stable power output and reliable electricity for household appliances.
Comprehensive Safety Protection
Integrates an enclosed protective structure and coordinated BMS-inverter protection to reduce electrical risks and ensure stable, reliable operation.
Compact All-in-One Design
Combines the battery and inverter in an integrated structure, saving installation space while making transportation, installation, and operation easier.
Solar PV & Grid Compatibility
Supports both solar photovoltaic and mains power inputs, offering flexible energy management for residential solar storage and backup applications.
Real-Time LCD Monitoring
Features an intuitive LCD display that provides real-time information on PV input, AC input, output, load, and battery status for convenient system monitoring.
Technical Specifications
| Product Type | ESS-P08E008-C |
|---|---|
| Battery parameters | |
| Type of battery | LFP |
| Rated energy | 8kWh |
| Cell voltage | 25.6V |
| Voltage range | 21～29.2V |
| Standard charge and discharge | 157A |
| AC input parameters | |
| Input voltage range | 90~280Vac |
| Input frequency | 50/60Hz |
| Maximum charging current | 20A |
| AC output parameters | |
| Rated power | 3600W |
| Nominal voltage | 208/220/230/240Vac |
| Output mode | L+N+PE |
| Rated current | 15.7A |
| Rated frequency | 50/60Hz |
| Photovoltaic parameters | |
| Solar charging type | MPPT |
| MPPT input voltage range | 40~450Vdc |
| Maximum photovoltaic input voltage | 500Vdc |
| Maximum photovoltaic input current | 18A |
| Maximum photovoltaic input power | 5000W |
| General information | |
| Storage temperature | -10℃～65℃ |
| Running temperature | 0～60℃ |
| Operating humidity | <90%RH |
| Working altitude | ≤1000m |
| IP rating | IP20 |
| Product size (L×W×H) | 450×254×81mm |
| Weight | 68Kg |
Application Scenarios & Target Markets
Perfect for hybrid solar systems, high electricity price regions and energy-saving users
Residential Solar Energy Storage
Ideal for homes seeking reliable solar energy storage and backup power.
Stores excess solar energy for use during nighttime and low-sunlight periods.
Helps increase solar self-consumption and reduce grid electricity costs.
Home Backup Power
Provides reliable backup power during unexpected grid outages.
Keeps essential household appliances running during power interruptions.
Ensures greater household energy security and continuity.
Off-Grid Solar Systems
Suitable for homes in remote areas without reliable grid access.
Stores solar energy to support daily household electricity needs.
Provides an integrated solution for independent power supply.
Daily Household Electricity Supply
Supports daily electricity consumption for essential home appliances.
Stores energy for flexible use throughout the day and night.
Helps optimize household energy usage and reduce dependence on grid power.
Hybrid Solar Energy Systems
Works with both solar PV and grid power inputs.
Enables flexible energy management between solar generation and grid electricity.
Provides a practical solution for homes combining renewable energy with utility power.
Remote Homes & Rural Electrification
Ideal for rural houses, cabins, and properties in areas with limited grid infrastructure.
Provides a compact energy storage solution with easy installation.
Supports more reliable electricity access in locations with unstable power supply.
