5MWh Liquid-Cooled Energy Storage Battery Container (DC-side)
5MWh Liquid-Cooled Energy Storage Battery Container (DC-side)
Product Description
This 5MWh liquid-cooled energy storage battery container (DC-side) adopts a professional 12-cluster integrated design, with a single cluster capacity of 418kWh and a wide DC output voltage range of 1000–1500V, specially built for large‑scale commercial and industrial energy storage scenarios. When matched with a 2.5MW C&I containerized string PCS MV skid, it forms a complete and high‑performance battery energy storage system (BESS). The system features advanced liquid cooling technology, intelligent thermal control, and multi‑cluster management architecture, which effectively improve energy density, extend battery cycle life, reduce power loss, and optimize overall costs. It is widely used in large industrial and commercial energy storage plants to stabilize power fluctuations, improve energy utilization efficiency, and provide safe, reliable, and efficient energy storage support for large‑scale renewable energy grid connection and peak shaving applications.
Key Advantages
High-Voltage 1500V System Architecture
1500V high-voltage design significantly improves energy density, power density and system efficiency, effectively reducing the overall cost of large-scale C&I energy storage projects.
Advanced Liquid Cooling Technology
High-efficiency liquid cooling system optimizes heat dissipation, enhances battery discharge performance, reduces auxiliary power consumption and extends battery service life.
Intelligent Thermal Management Control
Smart temperature control system ensures consistent and uniform battery cell temperature, greatly improving long-term cycle stability and operational reliability.
Multi-Cluster Intelligent Management
Supports independent multi-branch cluster control, maximizes battery utilization rate, and eliminates parallel circulation current risks in the system.
Compact Structure & Space Saving
Integrated and compact container design reduces floor space occupation, making the layout of energy storage stations more efficient and reasonable.
Cost & Energy Loss Optimization
Optimized design lowers station construction investment, cuts energy loss during operation, and brings higher economic benefits for large-scale energy storage projects.
Technical Specifications
| Model | PC-20C-5MWH-L |
|---|---|
| Battery Side Parameters | |
| Battery Rated Capacity | 418kWh*12 |
| Battery Rated Voltage | 1331.1V |
| Battery Voltage Range | 1164.8~1497.6V |
| Number of Battery Strings | 12P*52S*8S |
| Compatible Batteries | LFP |
| Cell Capacity | 314Ah |
| General Parameters | |
| Protection Rating | IP54 |
| Operating Temperature | -25℃~60℃ (derating above 45℃) |
| Relative Humidity | 0~95% (No condensation) |
| Fire Extinguishing System | Perfluorohexane/Heptafluoropropane piped fire suppression system |
| Cooling Method | Intelligent liquid cooling |
| Altitude | 3000m (Derating above 2000m) |
| Communication Interface | RS485 / CAN |
| Dimensions (W*D*H) | 6058*2438*2896mm |
| Weight (approx.) | 42t |
Application Scenarios & Target Markets
Professional 5MWh liquid-cooled energy storage container for large-scale utility & commercial industrial projects
Utility-Scale Energy Storage
- Grid peak shaving and frequency regulation for ancillary service revenue
- Stabilizes wind & solar output and reduces renewable energy curtailment
- Provides grid backup power and black start emergency support
Commercial & Industrial Energy Storage
- Peak load shifting to reduce electricity costs and penalty charges
- Backup power for critical industrial and commercial equipment
- Ideal for factories, data centers and industrial parks
DC-Coupled Solar + Storage Systems
- Direct DC connection with PV systems to reduce conversion losses
- Higher system efficiency and better investment returns
- Suitable for large ground-mounted PV plants and renewable bases
Microgrids & Off-Grid Applications
- Stable power supply for islands, mines and remote regions
- Reduces diesel consumption and fuel operation costs
- Hybrid integration of solar, wind, storage and diesel generators
Data Centers & High-Reliability Power
- High-performance long-duration backup for IDC and cloud facilities
- Millisecond-level switching and ultra-high power continuity
- Upgrade and replacement for traditional UPS systems

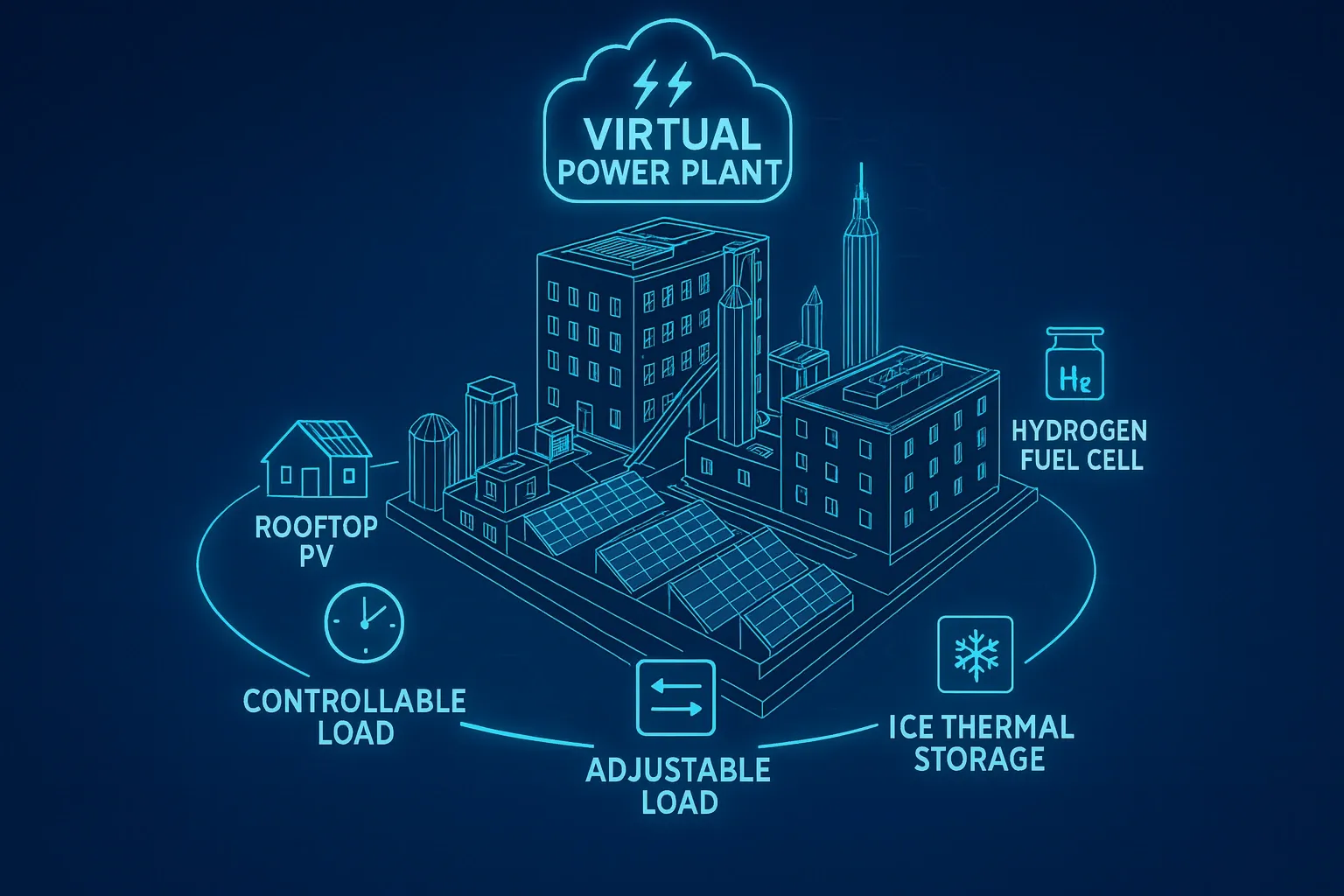

Virtual Power Plant & Energy Trading
- Aggregates distributed storage for grid and market participation
- Multi-scenario revenue stacking through energy arbitrage
- AI intelligent optimized dispatch for maximum economic benefits
