Vertical stacked all-in-one energy storage system
Maximum peak power：10,000VA
Output mode：Off-grid/Hybrid
Battery Type：LiFePO4 Battery Module
Battery Voltage： 51.2V
Battery Capacity： 100Ah
Product Category：Low Voltage LiFePO₄ Battery System
Vertical Stacked All-in-One Energy Storage System
Product Description
The Vertical Stacked All-in-One Energy Storage System is an integrated low-voltage energy solution combining an inverter and LiFePO4 battery modules in one compact unit. With a maximum peak power of 10,000VA, it supports both off-grid and hybrid working modes, delivering high efficiency and stable output. Adopting premium Grade A LiFePO4 cells and a smart BMS, it features ultra-long cycle life up to 6000+ cycles, wide temperature adaptability, and strong safety performance. The vertical stacked design allows flexible capacity expansion from 5.12kWh to 20.48kWh, with plug-and-play installation, LCD monitoring and WiFi APP control, making it an ideal choice for household, small commercial and backup power applications.
Key Advantages
Modular Stacked Design
Integrated vertical stacked structure supports 1–4 battery modules in parallel, expanding capacity from 5.12kWh to 20.48kWh. Two full systems can be paralleled for higher power and energy.
High Safety & Reliability
Built with Grade A LiFePO4 cells, green and environmentally friendly. Equipped with a sturdy metal shell that is waterproof and explosion-proof for superior safety.
Intelligent BMS Protection
Full-function smart Battery Management System provides all-round overcharge, over-discharge, overcurrent, short circuit and temperature protection with real-time fault detection.
Plug & Play Installation
Simplified wiring without complicated debugging, truly plug-and-play. Easy to install and operate, greatly reducing installation time and labor costs.
Smart Monitoring & Control
Built-in LCD display shows real-time working status. Supports WiFi connection for remote monitoring and data viewing via mobile APP anytime and anywhere.
Wide Adaptability & Long Life
Wide working temperature range with strong environmental adaptability. Up to 6000+ deep cycles, long service life and supports off-grid/hybrid output modes.
Technical Specifications
| Items | Specification |
|---|---|
| Inverter module (INV05KLP1) | |
| Output | |
| Rated output power | 5,000W |
| Maximum peak power | 10,000VA |
| Motor load capacity | 4HP |
| Wave form | Pure Sine Wave (PSW) |
| Rated output voltage | 220V AC (Single Phase) |
| Maximum parallel capacity | 2 units (Up to 10KW) |
| Output mode | Off-grid / Hybrid |
| Solar input | |
| Types of solar charging | MPPT |
| Maximum solar array power | 5,500W |
| Maximum solar open-circuit voltage | 500Vdc |
| Grid/generator inputs | |
| Input voltage range | 90~280Vac |
| Bypass overload current | 40A |
| Battery charging | |
| Maximum solar charging current | 100A |
| Maximum grid/generator charging current | 60A |
| Routine | |
| Dimensions (L×W×Hmm) | 400×580×145 |
| Weight (Kg) | ~18 |
| Battery module (PC-AIOV05B) | |
| Battery power | 5.12KWh |
| Rated voltage | 51.2V |
| Rated capacity | 100Ah |
| Battery type | Prismatic cell |
| Cycle life | ≥6000 (80% DOD, 0.5C, 25°C) |
| Maximum parallel capacity | 4 units (Max. 20.48KWh) |
| Dimensions (L×W×Hmm) | 480×580×145 |
| Weight (Kg) | ~45 |
| Standard | UN38.3, MSDS, IEC62619-2017, EN IEC61000-3-2, EN IEC61000-6-1, RoHS |
Application Scenarios & Target Markets
Vertical Stacked All-in-One Energy Storage System for Integrated Home & Commercial Energy Solutions
Residential Solar Energy Storage
- All-in-one integrated inverter and battery design for home PV systems
- Stores excess solar energy and improves self-consumption efficiency

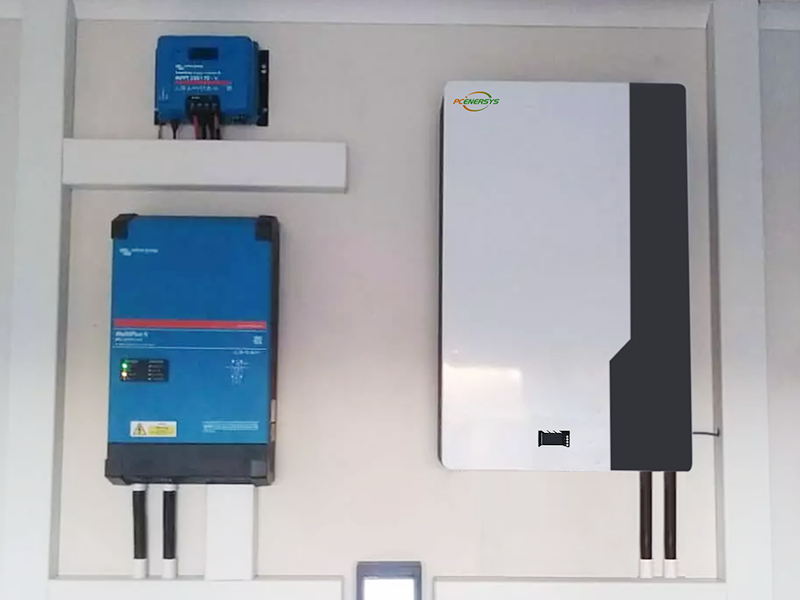

Home Backup Power Supply
- Provides reliable backup power with fast switching during grid outages
- Ensures uninterrupted operation for essential household appliances

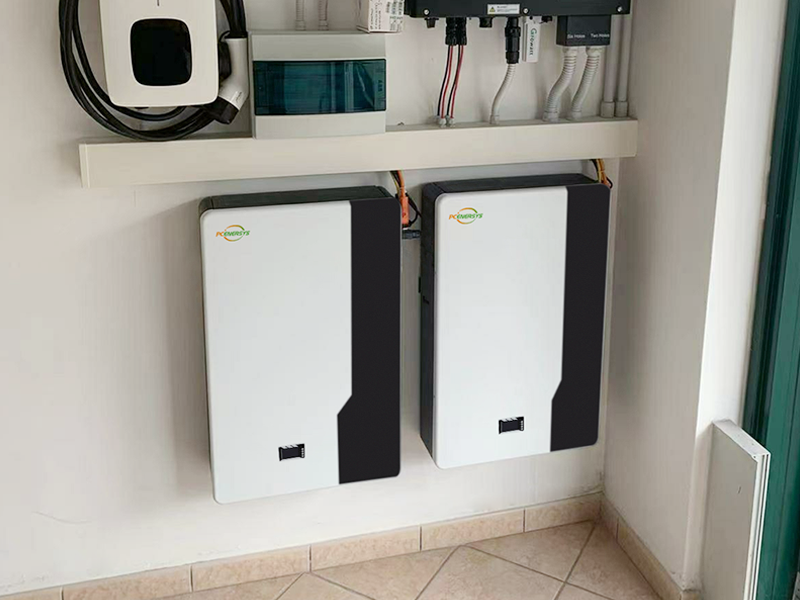

Off-Grid Residential Systems
- Ideal for villas, cabins and remote homes without stable grid access
- Delivers independent and continuous stable power supply
Small Commercial & Office Use
- Suitable for offices, retail stores and small business sites
- Reduces electricity costs and enhances power supply reliability
Quick Deployment Projects
- Plug-and-play design for fast installation and commissioning
- Ideal for projects requiring minimal engineering complexity

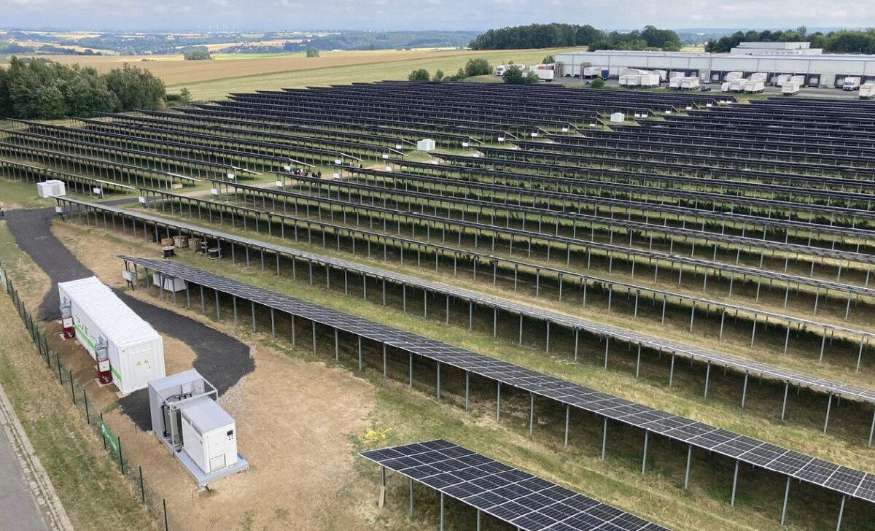

Scalable Home Energy Systems
- Supports modular stacking for flexible capacity expansion
- Scales system power with growing household energy demands
