2MWh Commercial and Industrial ESS Container Module Design 40-FT Outdoor Container
Battery Type：LiFePO4
PV Voltage Range： 728-936V
Battery Rated Capacity： 2MWh
Rated AC Power： 1000KW
Rated DC Power(Optional)： 1000KW
Communication Interfaces： CAN/Ethernet/485
Product Category：Commercial & Industrial ESS
2MWh Commercial and Industrial ESS Container Module Design 40-FT Outdoor Container
Product Description
The PC-BESS2MWh is a 40-foot outdoor integrated container energy storage system with 2MWh super large battery capacity and 1000kW rated AC/DC power. Adopting high-performance LiFePO4 battery cells and standard 40FT container structure, it integrates battery clusters, high-power PCS, BMS, EMS, fire protection and air conditioning systems in one integrated cabinet. Supporting 728-936V PV voltage and rich communication interfaces (CAN/Ethernet/485), it features high integration, strong outdoor durability, large capacity, high power and long service life, specially designed for large industrial and commercial energy storage, power grid peaking, microgrid and large-scale renewable energy storage projects.
Key Advantages
Standard 40FT Container Design
Adopts international standard 40-foot outdoor container structure with high strength, good sealing and strong weather resistance, suitable for long-term outdoor all-weather operation.
2MWh Ultra-High Capacity
Built with 2MWh large-capacity LFP battery system and 1000kW high power output, fully satisfying large-scale industrial and commercial high-power energy storage demands.
All-in-One Highly Integrated
Highly integrated design integrates batteries, PCS, BMS, EMS, fire control and temperature control systems, realizing plug-and-play and fast project deployment.
High Safety & Reliability
Equipped with complete battery management, intelligent temperature control and professional fire suppression system, ensuring safe and stable long-term operation.
Strong Scalability & Compatibility
Modular structure supports flexible capacity expansion and high compatibility with PV, wind power and grid systems for multi-scenario applications.
Intelligent Remote Management
Supports multiple communication protocols and remote intelligent monitoring, realizing real-time data control, fault alarm and automatic operation optimization.
Technical Specifications

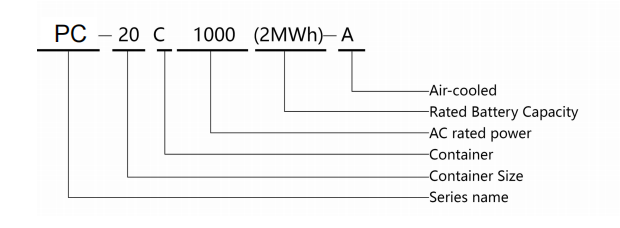

| Model | PC-20C-1000(2MWh)-A |
|---|---|
| DC Side Parameters | |
| Operating Voltage Range | 580~1000V |
| Maximum DC Current | 200A*8 |
| Compatible Batteries | Lithium-ion/Lead-acid/Photovoltaic modules |
| Charging Method | Follows BMS commands/Three-stage/MPPT |
| Operating Mode | Constant current, constant power, MPPT, AC voltage source, DC voltage source |
| AC Side Parameters (Grid-Connected) | |
| Rated/Maximum AC Power | 1000/1100 kW |
| Rated AC Current | 180 A * 8 |
| Rated AC Voltage | 400 V, 3W + PE |
| Rated AC Frequency | 50/60 Hz ± 5 Hz |
| Total Harmonic Distortion (THDi) | <3% (rated power) |
| Power Factor | -1 leading to +1 lagging |
| Battery Side Parameters | |
| Battery Rated Capacity | 253.2 kWh*8 |
| Battery Rated Voltage | 806.4 V |
| Battery Voltage Range | 705.6~907.2 V |
| Number of Battery String Groups | 8P*18S*14S |
| Compatible Batteries | LFP |
| Cell Capacity | 314 Ah |
| General Parameters | |
| Protection Rating | IP54 |
| Operating Temperature | -25°C~60°C (derating above 45°C) |
| Relative Humidity | 0~95% (No condensation) |
| Fire Suppression System | Perfluorohexane/Heptafluoropropane pipe-type fire suppression system |
| Battery Compartment Cooling Method | Air conditioning and refrigeration |
| Electrical Compartment Cooling Method | Intelligent air cooling |
| Altitude | 3000m (Derating above 2000m) |
| Communication Interface | RS485 / CAN |
| Dimensions (W×D×H) mm | 6058*2438*2591mm |
| Weight (approx.) | 28.5t |
Application Scenarios & Target Markets
Professional 2MWh 20FT Outdoor Container ESS for large-scale commercial & industrial energy management
Large-Scale Peak Shaving & Demand Reduction
- Stores energy during off-peak periods and discharges at peak demand
- Greatly reduces electricity costs for factories and industrial parks
Solar + Storage High-Capacity Integration
- Stores excess PV generation for full self-consumption
- Improves renewable energy efficiency and grid independence
Backup Power for Critical Infrastructure
- Provides long-duration high-capacity backup power
- Ideal for data centers, hospitals, plants and complexes
Industrial Microgrid & Hybrid Systems
- Core energy storage unit for microgrid systems
- Stable off-grid/weak-grid operation with PV & generators
EV Charging Hub Energy Management
- Buffers peak loads for large EV charging stations
- Reduces grid impact and optimizes operation efficiency
Distributed Energy & Virtual Power Plants
- Flexible asset for distributed energy networks
- Supports VPP, peak regulation and electricity trading
