1MWh Commercial and Industrial ESS Container Module Design 20-FT Outdoor Container
Battery Type：LiFePO4
PV Voltage Range： 728-936V
Battery Rated Capacity： 1MWh
Rated AC Power： 500KW
Rated DC Power(Optional)： 500KW
Communication Interfaces： CAN/Ethernet/485
Product Category：Commercial & Industrial ESS
1MWh Commercial and Industrial ESS Container Module Design 20-FT Outdoor Container
Product Description

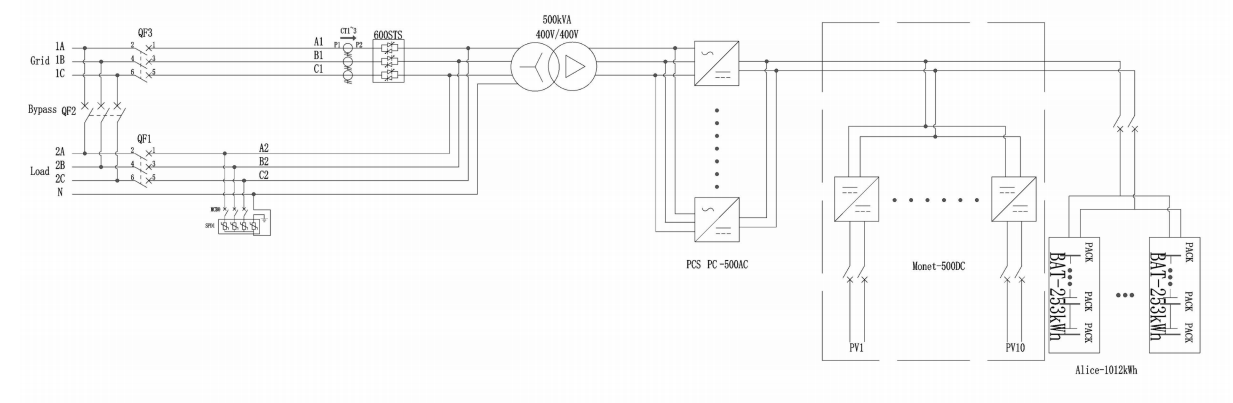

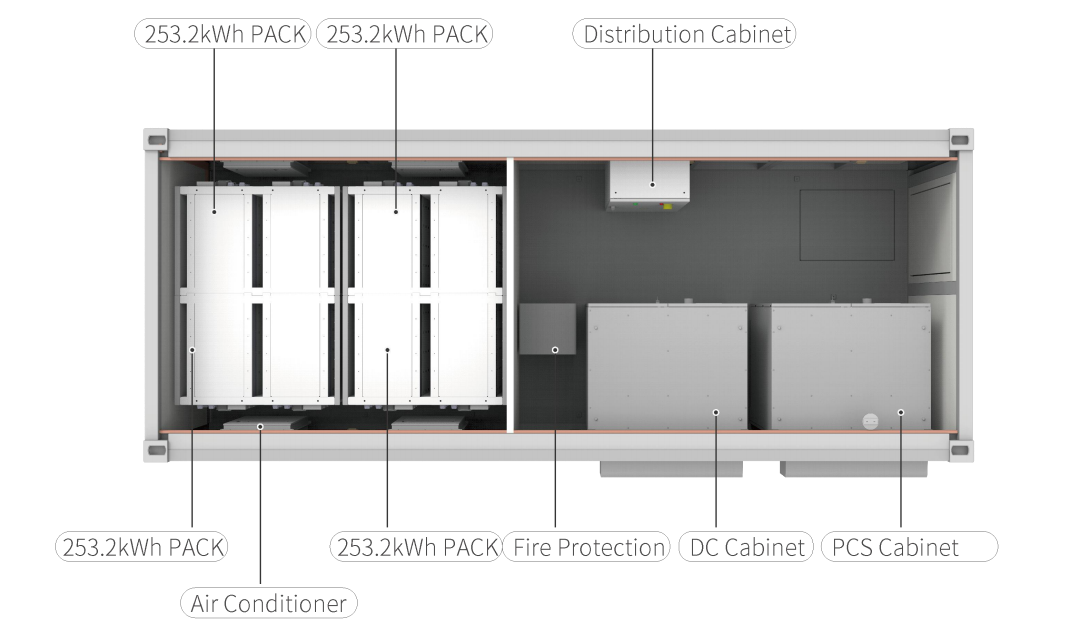

The PC-BESS1MWh is a 20-foot outdoor integrated container energy storage system with 1MWh battery capacity and 500kW rated AC/DC power. Adopting high-performance LiFePO4 battery cells and modular container design, it integrates battery packs, power conversion system, BMS, EMS, fire protection and environmental control systems in one standard container. Supporting 728-936V PV voltage and rich communication interfaces (CAN/Ethernet/485), it features high integration, strong weather resistance, easy deployment and long service life, ideal for large-scale industrial & commercial energy storage, peak shaving, microgrid and renewable energy integration projects.
Key Advantages
Standard 20FT Container Design
Adopts industrial standard 20-foot outdoor container structure, with high structural strength, good sealing and excellent weather resistance for all-weather outdoor operation.
1MWh High-Capacity Energy Storage
Configured with 1MWh large-capacity LFP battery system and 500kW high power output, meeting the high-power energy storage demands of large industrial and commercial scenarios.
All-in-One Integrated System
Highly integrated design integrates batteries, PCS, BMS, EMS, fire control and air conditioning systems, realizing plug-and-play and fast on-site deployment.
High Safety & Stability
Equipped with professional battery management system, temperature control and fire protection system, ensuring safe, stable and long-term reliable operation of the whole system.
Flexible & Scalable Application
Modular design supports flexible capacity expansion, suitable for large-scale energy storage power stations, microgrids, industrial parks and other multi-scenario applications.
Intelligent Monitoring & Control
Supports multiple communication protocols and remote intelligent monitoring, enabling real-time data management, fault alarm and automatic operation strategy optimization.
Technical Specifications
| Parameters | PC-500TS | Monet-(DC500) | Alice-(1012kWh) |
|---|---|---|---|
| DC Side Parameters | |||
| Operating Voltage Range | 580~1000V | 312-500V (minimum voltage -20V) | 672~864V |
| Maximum DC Current | 200A*4 | 10*160A | / |
| Compatible Batteries | Lithium-ion/lead-acid/photovoltaic modules | / | 4P*18S*14S |
| Charging Method | BMS-controlled/Three-stage/MPPT | Number of MPPT channels | Compatible Batteries |
| Operating Mode | Constant current, constant power; AC voltage source, DC voltage source | / | / |
| AC Side Parameters (Grid-Connected) | |||
| Rated/Maximum AC Power | 500/550kW | / | / |
| Rated AC Current | 180A*4 | / | / |
| Rated AC Voltage | 400V, 3W+N+PE | / | / |
| Rated AC Frequency | 50/60Hz ±5Hz | / | / |
| Total Harmonic Distortion (THDI) | <3% (rated power) | / | / |
| Power Factor | -1 leading to +1 lagging | / | / |
| AC Side Parameters (Off-Grid) | |||
| Rated AC Voltage | / | / | / |
| Rated AC Frequency | / | / | / |
| Total Voltage Harmonic Distortion (THDU) | / | <3% (linear load) | / |
| Overload Capacity | / | 110% long-term operation; 120% for 1 minute | / |
| General Parameters | |||
| Protection Rating | IP21 (indoor) | IP21 (indoor) | IP54 |
| Protection Level | I | I | / |
| Isolation Method | Transformer isolation | / | / |
| Standby Power Consumption | < 0.1% rated power (excluding transformer) | < 0.1% rated power (excluding transformer) | / |
| Display | Touch LCD touchscreen | LCD touchscreen | / |
| Relative Humidity | 0~95% (no condensation) | 0~95% (no condensation) | 0~95% (no condensation) |
| Noise | <78dB | <78dB | / |
| Ambient Temperature | -25℃~60℃ (derating above 45℃) | -25℃ to 60℃ (derating above 45℃) | -25℃~60℃ (derating above 45℃) |
| Cooling Method | Intelligent air cooling | / | Air conditioning and refrigeration |
| Altitude | 3000m (derating above 3000m) | 3000m (derating above 3000m) | 3000m (derating above 2000m) |
| Communication Interface | RS485/CAN/Ethernet | RS485 / CAN / Ethernet | RS485 / CAN |
| Dimensions (W*D*H) mm | 1200*1000*2100mm (indoor) | 1200 × 1000 × 2100 mm (indoor) | 6058*2438*2591mm |
| Weight (approx.) kg | 1960kg (approx.) | 900 kg (approx.) | 1t |
| Battery Side Parameters (Alice Exclusive) | |||
| Battery Rated Capacity | / | / | 253.2kWh*4 |
| Battery Rated Voltage | / | / | 768V |
| Number of Battery Strings | / | / | / |
| Cell Capacity | / | / | LFP 314Ah |
| Electrical Compartment Cooling Method | / | / | Intelligent air cooling |
| Fire Suppression System | / | / | Perfluorohexane/Heptafluoropropane piped fire suppression system |
Application Scenarios & Target Markets
Professional 1MWh 20FT Outdoor Container ESS for large-scale commercial & industrial energy management

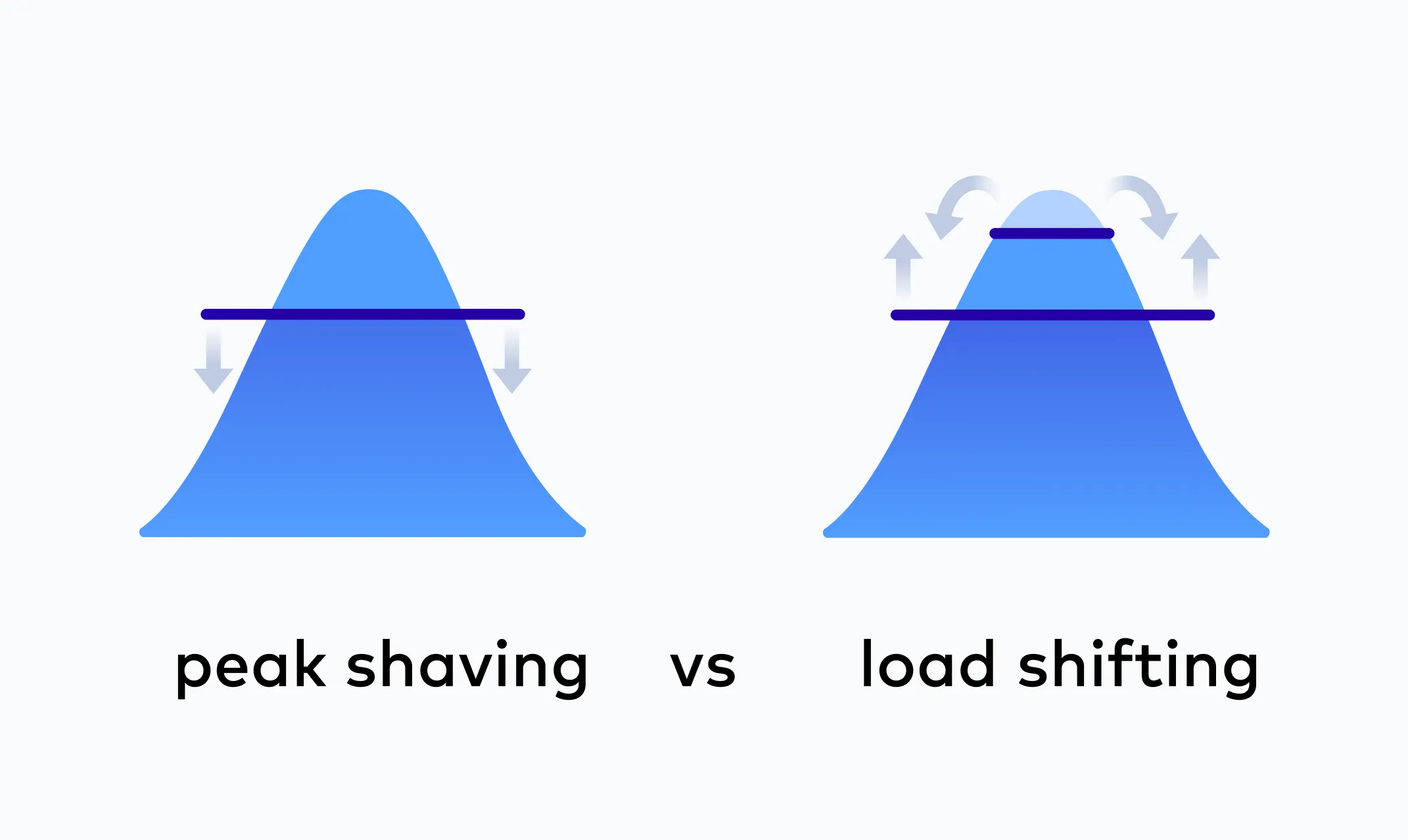

Large-Scale Peak Shaving & Demand Reduction
- Stores energy during off-peak periods and discharges at peak demand
- Greatly reduces electricity costs for factories and industrial parks
Solar + Storage High-Capacity Integration
- Stores excess PV generation for full self-consumption
- Improves renewable energy efficiency and grid independence
Backup Power for Critical Infrastructure
- Provides long-duration high-capacity backup power
- Ideal for data centers, hospitals, plants and complexes
Industrial Microgrid & Hybrid Systems
- Core energy storage unit for microgrid systems
- Stable off-grid/weak-grid operation with PV & generators
EV Charging Hub Energy Management
- Buffers peak loads for large EV charging stations
- Reduces grid impact and optimizes operation efficiency
Distributed Energy & Virtual Power Plants
- Flexible asset for distributed energy networks
- Supports VPP, peak regulation and electricity trading
