Commercial Energy Storage 100kWh Energy Storage system Cabinet with 50kw inverter
Commercial Energy Storage 100kWh Energy Storage System Cabinet
Product Description
This 100kWh commercial energy storage system integrates a high-performance 50kW inverter, lithium iron phosphate battery pack, intelligent BMS battery management system and EMS energy management system into a single integrated cabinet. Adopting a modular structural design, it provides safe, stable and efficient energy storage and discharge services for commercial and industrial scenarios. The system supports flexible capacity expansion, reliable long-cycle operation, and convenient installation and maintenance, making it an ideal choice for industrial and commercial peak shaving, backup power and energy optimization projects.
Key Advantages
Highly Integrated All-in-One Design
Combines battery system, BMS, EMS and 50kW inverter in one compact cabinet with modular PACK architecture for easier installation and maintenance.
Safe & Eco-Friendly LFP Chemistry
Uses cobalt-free lithium iron phosphate batteries to ensure high safety, excellent thermal stability and environmentally friendly operation.
Stable & Efficient C&I Performance
Optimized for industrial and commercial scenarios with stable output, high conversion efficiency and long cycle life for long-term reliable use.
Flexible & Scalable Deployment
Modular structure supports system capacity expansion and can be flexibly configured to meet different project scale and application demands.
Long Warranty Period
Supports up to 10 years of warranty coverage, providing long-term assurance for system investment and operation.
Professional Global Support
Backed by professional technical support and complete global after-sales service capabilities to ensure stable system operation.
Technical Specifications
| Parameter | PNG-50kW-100kWh | PNG-50kW-114kWh |
|---|---|---|
| Battery Data | ||
| Nominal Energy | 100.3kWh | 114.6kWh |
| Nominal Voltage | 358.4V | 409.6V |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | |
| Cycle Life | ≥8000 cycles (@25℃/0.5P) | |
| Cell Specification | 3.2V 280Ah | |
| Battery Pack Energy | 14.336kWh | |
| Number of Racks | 1 | |
| String Configuration | 1P112S | 1P128S |
| Operation Voltage | 313.6V~408.8V | 358.4V~467.2V |
| Rated Charging Power | 0.5P | |
| Rated Discharging Power | 0.5P | |
| Safety | ||
| Fire Suppression System | Aerosol fire extinguishing | |
| Inverter Data | ||
| Rated Power | 50kW | |
| Please Refer To The Pcs Section For More Details. | ||
| General | ||
| Dimensions (W*D*H) | 1050*1180*2250mm | |
| Weight | Approximately 1200kg | Approximately 1250kg |
| IP Rating | IP55 | |
| Cooling Method | Liquid cooling | |
| Operation Temperature | -20℃ ~+ 50℃ | |
| Storage Temperature | -20℃~+ 45℃ | |
| Relative Humidity | 15%~90% (Non-condensing) | |
| Operating Altitude | ≤3000m | |
| Communication Interfaces | LAN/CAN/RS485 | |
| Compliance | IEC 62619, IEC/EN 61000, UN 38.3, MSDS | |
Application Scenarios & Target Markets
Professional 100kWh 50kW energy storage system for commercial & industrial energy management solutions
Peak Shaving & Load Shifting
- Store off-peak power and discharge during peak periods to reduce energy costs
- Ideal for factories, commercial buildings and industrial parks
Backup Power Supply
- Provide stable backup power for critical equipment during grid outages
- Suitable for data rooms, manufacturing and mission-critical facilities

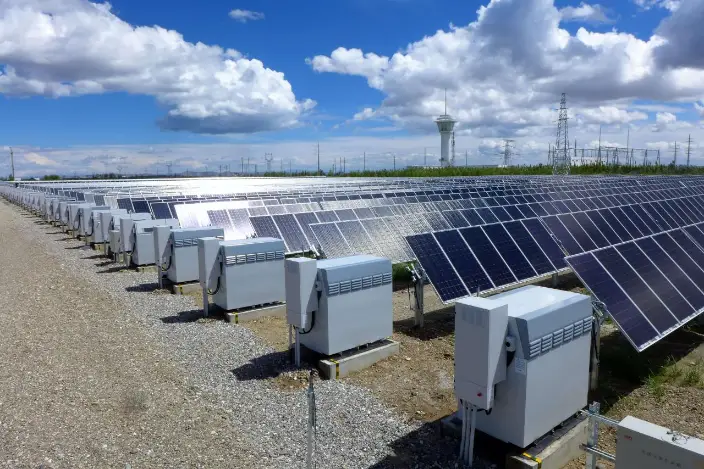

Solar + Storage Integration
- Store excess solar energy for night use to improve self-consumption rate
- Widely used in commercial rooftops and industrial PV projects

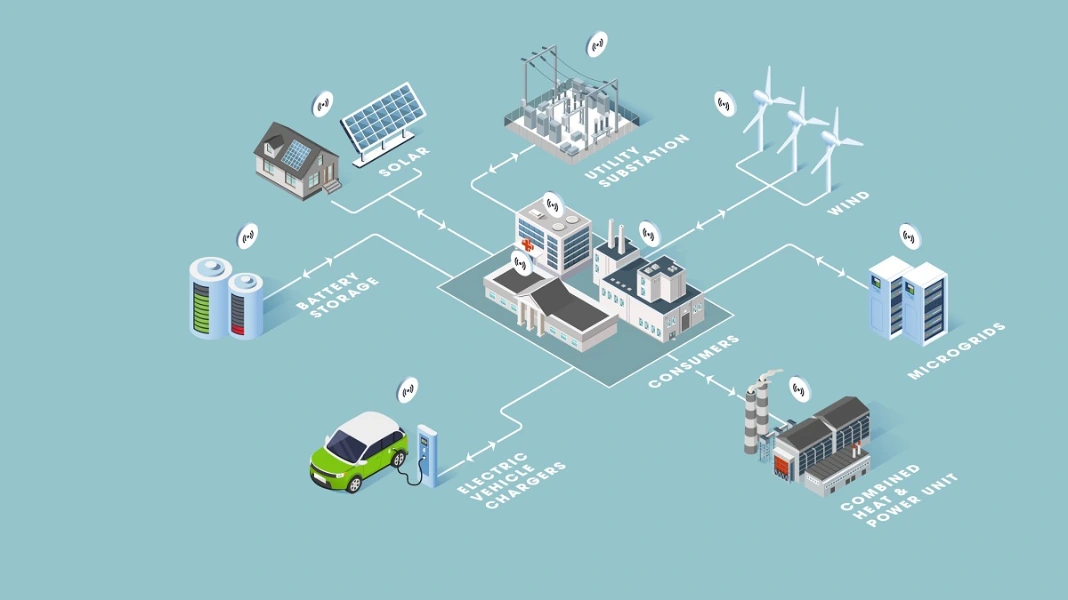

Demand Response & Grid Support
- Participate in demand response programs to create extra revenue
- Support grid stability during peak power consumption periods

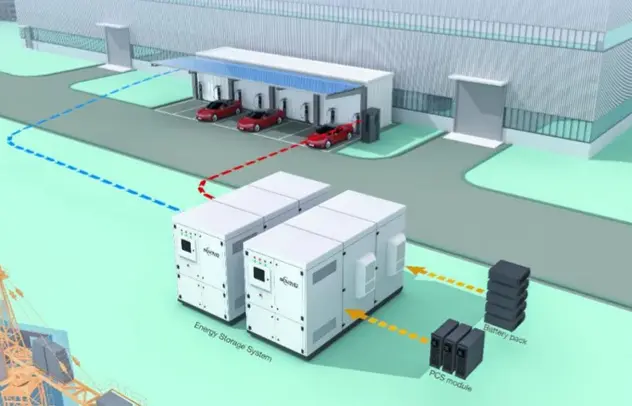

Power Capacity & EV Charging Support
- Avoid expensive grid upgrades by supplying peak power capacity
- Stabilize power supply for high-demand EV charging stations
Microgrid & Off-Grid Applications
- Build independent energy systems for remote areas and islands
- Flexible deployment for construction sites and weak grid regions
