HMiWay High Voltage Commercial & Industrial Hybrid Inverter 60KW
HMiWay High Voltage Commercial & Industrial Hybrid Inverter 60KW
Product Description
This energy storage inverter is designed for small and medium-sized microgrids, integrating PV, battery storage, and EMS for efficient energy management. It supports rapid on/off-grid switching, multi-unit parallel operation, and hybrid operation with diesel generators, enabling flexible and reliable power supply. Designed for small C&I applications, island microgrids, farms, villas, and battery repurposing projects, it offers a scalable solution for diverse energy storage applications.
Key Advantages
High-Efficiency SiC & IGBT Power Conversion
Utilizes imported SiC and IGBT components to deliver efficient and reliable power conversion, helping improve system performance and long-term operational stability for energy storage applications.
Multi-MPPT & High-Current PV Input
Features a multi-MPPT design with up to 42A string input current, providing excellent compatibility with high-power PV modules and maximizing solar energy harvesting across different operating conditions.
<10ms Seamless On/Off-Grid Switching
Achieves grid-connected to off-grid switching in less than 10ms, helping maintain uninterrupted power for critical loads and providing reliable backup power during grid outages.
Intelligent Generator Integration
Supports diesel generator integration with intelligent start/stop control, enabling coordinated operation between solar, battery storage, and generators for flexible and reliable hybrid energy management.
Scalable Parallel Operation & High-Current Charging
Supports up to 10 units in parallel for flexible system capacity expansion, while delivering up to 160A single-channel charge/discharge current and supporting 314-cell battery configurations for high-power energy storage systems.
Flexible BMS & Smart Remote Monitoring
Supports multiple BMS protocols, including CATL, Pylontech, Sunwoda, EVE, and other major battery platforms, providing greater battery selection flexibility. Built-in mobile app and cloud monitoring enable remote system monitoring, maintenance, and operational management.
Technical Specifications
| Parameters | HMiWay‑60S |
|---|---|
| DC Input(PV side) | |
| Max. PV Power | 100kW |
| Vmax PV | 1000V |
| Start‑up Voltage | 180V |
| MPPT Input Range | 150~950V |
| Max. Operating PV Input Current | 4*42A |
| Max. Isc PV | 4*60A |
| MPPT number/ Input strings number | 4/8 |
| Battery | |
| Battery Type | LFP |
| Battery Voltage Range | 168V‑950V |
| Battery Starting Voltage | 150V |
| Charging/Discharging Rated Current | 100A*2 |
| Number of battery ports | 2 |
| AC Output(On‑Grid side) | |
| AC Rated Output Power | 60kW |
| AC Max.Output Power | 66kVA |
| AC Voltage Range | 3/N/PE,230V/400V |
| AC Rated Frequency | 50/60Hz |
| AC Rated Output Current | 87A |
| Power Factor | >0.99 |
| THDi | < 3% |
| AC Input(On‑Grid side) | |
| Max.Input Current | 174A |
| AC Voltage Range | 3/N/PE,230V/400V, 50/60Hz |
| AC Output(Off‑Grid Side) | |
| AC Rated Output Power | 60kW |
| Overload Capacity | 110% continuous operation; 120% for 1 minute; 150% for 10 seconds |
| AC Voltage Range | 3/N/PE,230V/400V, 50/60Hz |
| Load Unbalance | 100% |
| Backup Switching Time | < 10ms |
| THDv | < 3% |
| Generator Input | |
| Max. Input Power | 60kW |
| Rated Input Current | 87A |
| Efficiency | |
| MPPT Efficiency | 99.9% |
| European Efficiency | 97.0% |
| Max. Efficiency | 97.6% |
| Protective Function | Features islanding protection, AC output overcurrent protection, AC short‑circuit protection, integrated DC switch, leakage current detection, insulation resistance testing, fault logging and fault waveform recording |
| General Parameters | |
| Topology | Non‑transformer |
| Ingress Protection | IP66 |
| Corrosion Rating | C4 (C5 customizable) |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | -30~60℃ (Derating above 45℃) |
| Altitude | 3000m (Derating above 3000m) |
| Dimensions (W×D×H) | 650*750*290mm |
| Weight | 80kg |
| Display | 4.3"LCD displays + 3 LED status indicators + 4 buttons |
| Communication Interface | CAN/RS485/Ethernet/Dry contact/Wi‑Fi & Bluetooth & 4G (optional) |
Application Scenarios & Target Markets
Professional 20C-2500-MV-D_O Electrical Container (Dry-type) ESS for large-scale commercial & industrial energy management
Small C&I Energy Storage
- Reduces peak electricity demand and optimizes energy consumption for commercial and industrial users
- Supports PV self-consumption, battery storage, and flexible energy management
Solar + Storage Microgrids
- Integrates high-power PV modules with battery storage for efficient renewable energy utilization
- Supports on/off-grid operation to improve energy independence and system resilience

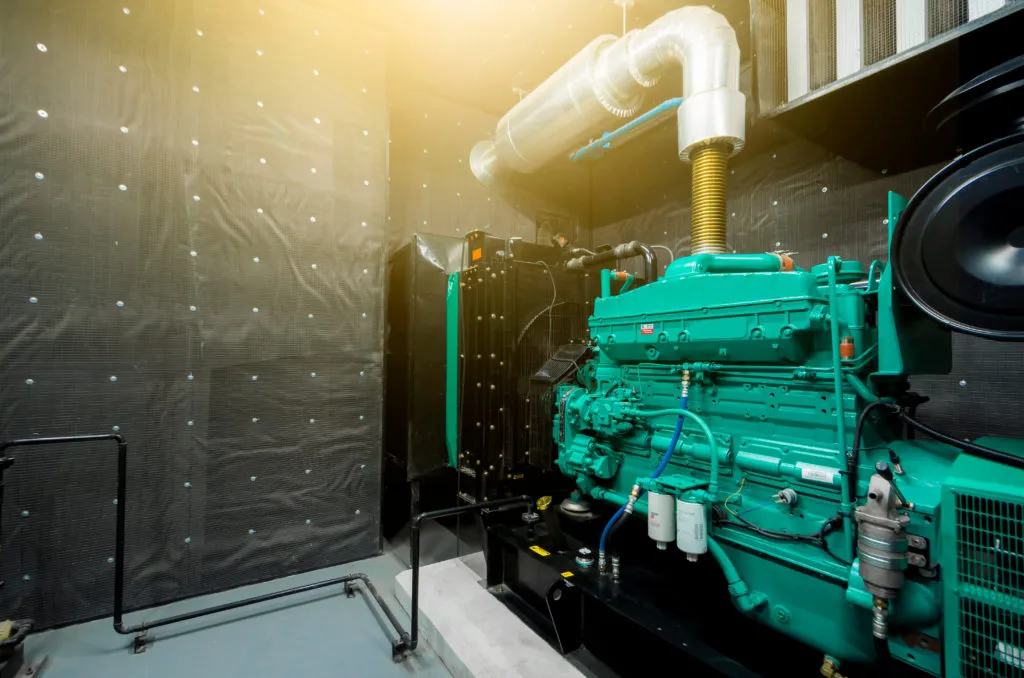

Diesel Generator Hybrid Systems
- Coordinates solar, battery, and diesel generators through intelligent generator start/stop control
- Reduces generator runtime and fuel consumption while maintaining reliable power supply
Backup Power for Critical Loads
- Provides<10ms on/off-grid switching to maintain continuous power for critical loads
- Ideal for farms, commercial facilities, remote sites, and other applications requiring reliable backup power
Island & Remote Microgrids
- Enables stable off-grid power supply in areas with limited or unreliable grid access
- Supports PV, batteries, and generators for flexible multi-source energy management
Scalable Energy Storage Systems
- Supports up to 10 units in parallel for flexible system capacity expansion
- Compatible with multiple battery systems and BMS protocols for diverse energy storage configurations
