Single Phase Solar Inverter 48V 6KW Inverter
Rated Capacity：6KW
Type：Single Phase Hybrid Inverter
Application：Solar Household System
Product Category：Inverter & Panels Products
Single Phase Solar Inverter 48V 6KW Inverter
Product Description
The PC4806KLP1 is a high-frequency off-grid inverter adopting the latest technology. It features a compact and aesthetic design, and supports parallel operation of multiple units, allowing flexible expansion of inverter power according to load conditions. Equipped with dual-output functionality, it enables setting of load power supply time periods as needed. With a built-in ATS, it can automatically switch between mains power and generator power supply. This product boasts high cost performance and its quality leads the industry standards.
Key Advantages
Smart Dual Load Management
Supports dual-output functionality with flexible load scheduling, allowing users to independently manage different power loads and optimize energy usage.
High Power Output & Flexible Expansion
Delivers stable 6KW rated power with 1.0 power factor and supports up to 9 units in parallel for scalable system expansion.
Advanced Solar Charging Performance
Equipped with dual MPPT charge controllers, 8000W maximum PV input capacity, and 500Vdc high PV voltage compatibility for efficient solar energy harvesting.
Flexible Power Supply Solutions
Supports battery-free operation and direct load power supply, while built-in ATS enables seamless switching between grid and generator power.
Intelligent Remote Monitoring
Optional WiFi monitoring function allows real-time access to inverter operating status and system performance anytime, anywhere.
Comprehensive Safety Protection
Integrates multiple protection functions including overload, short circuit, and deep discharge protection to ensure reliable and safe operation.
Technical Specifications
| Category | Item | Specification |
|---|---|---|
| Spec | Model | PC4806K1P1 |
| AC Input Voltage | AC Input | 220/230/240VAC |
| Input Voltage Range | 170–280VAC ±3V (Normal Mode) | |
| Frequency | 50/60Hz (Adaptive) | |
| Output | Rated Power | 6000W |
| Output Voltage | 220/230/240VAC ±5% | |
| Output Frequency | 50/60Hz ±0.1% | |
| Output Wave | Pure Sine Wave | |
| Transfer Time | 10ms (PC), 20ms (Household) | |
| Peak Power | 12000VA | |
| Battery | Rated Voltage | 48Vdc |
| Voltage Range | 40–60Vdc | |
| Max Charging Current | 100A | |
| Grid Operation | Output Voltage | 220/230/240VAC |
| Grid Voltage Range | 195–253VAC | |
| Grid Frequency | 49–51Hz / 59–61Hz | |
| Output Current | 40A | |
| Power Factor | >0.99 | |
| Efficiency | 98% | |
| Charger | MPPT | Dual MPPT |
| Max PV Input | 2 × 4000W | |
| MPPT Range | 60–450Vdc | |
| Best VMP Range | 360–430Vdc | |
| Max PV Voltage | 450Vdc | |
| PV Input Current | 16A / 16A | |
| PV Charging Current | 100A | |
| AC Charging Current | 80A | |
| Interface | Communication | USB / CAN / RS485 |
| Monitoring | WiFi (Optional) | |
| Environment | Operating Temp | -10°C ~ 50°C |
| Storage Temp | -15°C ~ 60°C | |
| Humidity | 5%–95% (Non-condensing) | |
| Noise | ≤60dB | |
| Protection Level | IP20 | |
| Dimensions | 387 × 282 × 133.5mm | |
| Certification | Standards | CE, IEC62109-1, IEC62109-2 |
Application Scenarios & Target Markets
Perfect for hybrid solar systems, high electricity price regions and energy-saving users
Residential Hybrid Solar Systems
- Ideal for homes seeking energy independence with solar + battery storage solutions
- Increases solar self-consumption and reduces reliance on expensive grid electricity
- Provides reliable backup power for essential household loads during outages
Small Commercial Energy Storage
- Helps small businesses reduce electricity costs through peak shaving and load shifting
- Supports flexible energy management for daily commercial power consumption
- Scalable parallel design meets increasing energy demands as businesses grow
High Electricity Cost Regions
- Suitable for Europe, Middle East, South Africa, and Latin America markets with high electricity prices
- Maximizes solar energy utilization to reduce monthly electricity expenses
- Enables smarter energy scheduling based on time-of-use electricity rates
Off-Grid & Remote Power Applications
- Provides stable off-grid power supply for remote homes, cabins, and rural facilities
- Supports generator integration with automatic switching for continuous power availability
- Dual load outputs enable priority control of critical and non-critical loads
Backup Power & Energy Management Systems
- Ensures uninterrupted power supply for essential appliances during grid outages
- Supports intelligent load management to optimize battery usage and extend backup time
- Automatically switches between grid, battery, and generator power through built-in ATS
Solar Installers & EPC Projects
- Flexible system configuration with up to 9 units parallel operation for different project scales
- Compatible with various PV configurations through dual MPPT and wide voltage input range
- Simplifies installation and commissioning with intelligent monitoring and energy management features
Project Cases
Global home energy storage solutions with reliable inverters and batteries

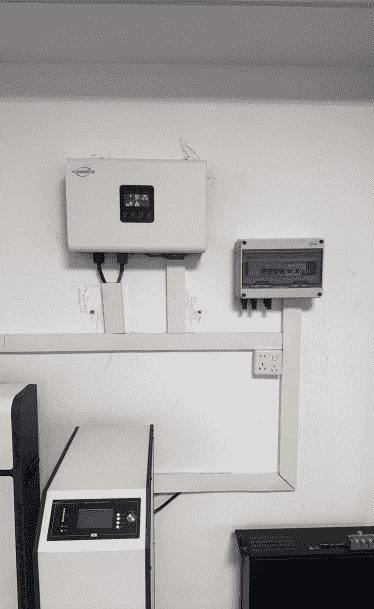

This residential system integrates a 6kW PCENERSYS inverter with a 10kWh PCENERSYS battery to provide stable and reliable power for everyday home use. It ensures critical appliances continue running during grid outages, effectively improving family comfort and daily energy efficiency while reducing dependence on unstable public power supply.

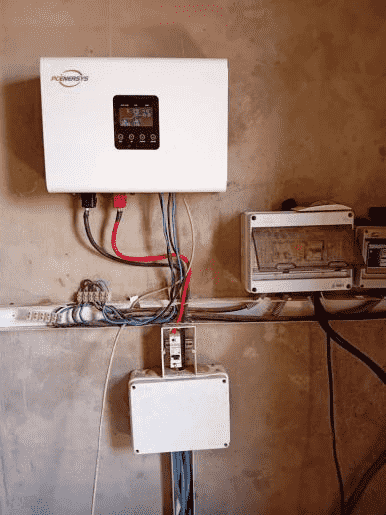

Designed for home environments, this setup combines a 6kW PCENERSYS inverter with a 10kWh PCENERSYS battery to deliver uninterrupted energy supply. The system greatly reduces disruptions caused by frequent power cuts, supports stable operation of essential appliances, and optimizes overall household energy management.

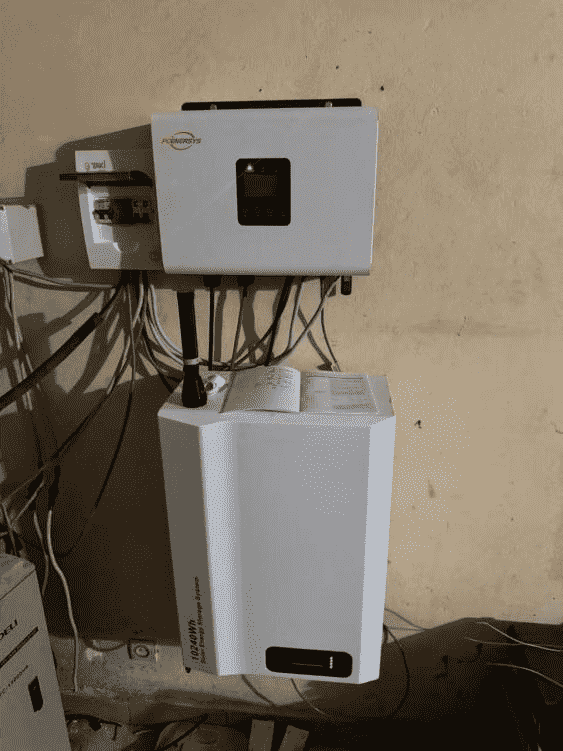

This reliable home energy solution pairs a 6kW PCENERSYS inverter with a 10kWh battery to deliver consistent backup power. It helps homeowners maintain normal power supply for lighting, refrigeration, and other critical loads during blackouts, while maximizing energy utilization and lowering daily energy costs.

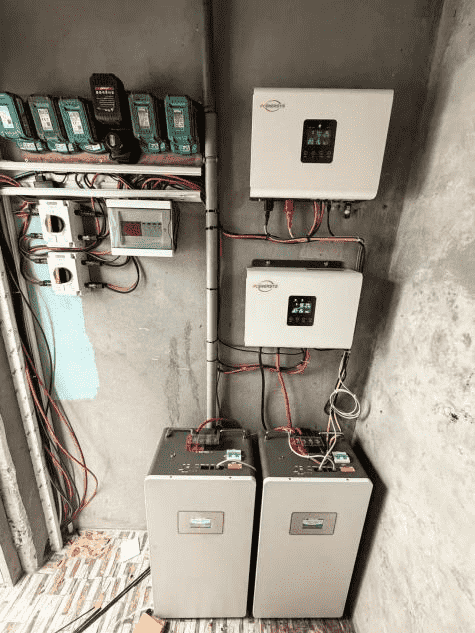

This high-capacity home setup combines two 6kW PCENERSYS inverters with two 15kWh batteries, specially designed for households with higher power demands. It ensures uninterrupted power supply during grid failures, supports smooth operation of multiple electrical appliances, and greatly improves household energy independence and stability.
