Model No: Solis Data Loggers
Solis Data Loggers

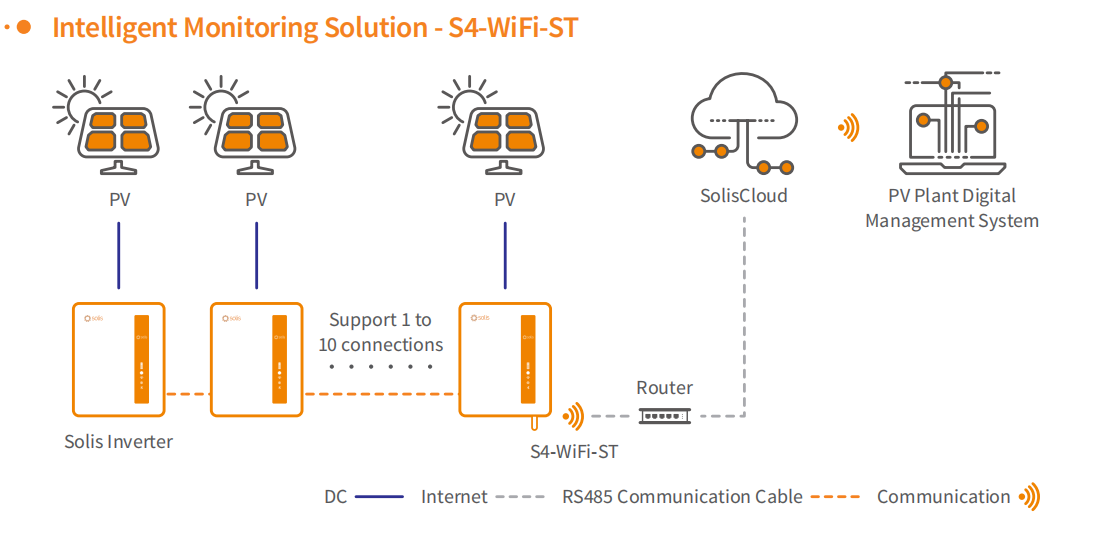

Use RS485 communication method to connect the inverters, up to 10 inverters can be connected at the same time. Data communication with the monitoring system through wireless WiFi network, which can realize remote control and monitoring. The network transmits intuitive data, which is convenient for customers to monitor anytime and anywhere.
Quantity :
| Models | S4-WiFi-ST |
|---|---|
| Communication | |
| Supported device type | Solis inverter |
| Number of connected inverters ① | ≤ 10 |
| Data collection intervals | 5 minutes |
| Status indicator | 3 LED Indicator Lights |
| Communication interface | External USB Port |
| Wireless communication | 802.11b/g/n, 2.412-2.484GHz ② |
| Max. output power | 802.11b: 18dBm; 802.11g: 16.5dBm; 802.11n: 15.5dBm |
| Configuration method | APP / WEB |
| Electrical | |
| Operating voltage | DC 5V (+ / - 5%) |
| Typical power consumption | 2 W |
| Environment | |
| Operating temperature | -30 ~ +65℃ |
| Operating humidity | 5%~95%, Relative humidity, non-condensing |
| Storage temperature | -40 ~ +70℃ |
| Storage humidity | < 40% |
| Max. operating altitude | 4000 m |
| Ingress protection | IP65 |
| Mechanical | |
| Dimensions (L × W × H) | 113 × 50 × 34 mm |
| Installation method | Externally Insert + Tab Lock |
| Weight | 65 g |
| Others | |
| Certification | CE, FCC |
| ① Inverters must first be hand-in-hand connected by RS485. ② 5 GHz Wi-Fi networks are not supported. | |
