Sodium-ion Battery Selection Guide: How to Choose the Right Energy Storage System for Your Project (2026)

Introduction — How to Choose the Right Sodium-ion Battery for Your Project

As sodium-ion battery technology rapidly advances, it is beginning to enter the grid scale battery market as a promising alternative to lithium-based systems. According to the International Energy Agency, emerging battery chemistries are expected to play a key role in future energy storage deployment.

This guide is designed to help you understand how to choose a sodium battery for your specific application. It answers critical questions such as whether sodium-ion battery vs lithium-ion is the better option, and how to balance cost vs performance in real projects. By the end, you will have a clear framework for making informed energy storage decisions.

A sodium battery—more precisely, a sodium-ion battery—is a type of rechargeable energy storage device that uses sodium ions (Na⁺) as the charge carriers. It is widely regarded as a next generation battery technology because it leverages abundant raw materials (such as sodium salts) while offering a similar working principle to lithium-based systems.

At the core of sodium ion battery technology is a reversible electrochemical process: during charging and discharging, sodium ions move between the cathode and anode through an electrolyte, while electrons flow through an external circuit to deliver power. This mechanism is conceptually similar to lithium-ion batteries, but the materials and electrochemical properties differ, which leads to distinct performance characteristics.

Key Comparison: Sodium-ion vs Lithium-ion

Feature	Sodium-ion Battery	Lithium-ion Battery
Raw Materials	Abundant, low cost	Limited, higher cost
Energy Density	Lower	Higher
Safety	High (stable chemistry)	Moderate
Maturity	Emerging	Mature

From an engineering perspective, sodium-ion batteries are particularly attractive for grid-scale and renewable energy storage, where cost, safety, and material availability are often more critical than energy density. However, compared to lithium-ion systems, they are still in an earlier stage of commercialization, and their performance continues to evolve as the technology matures.

Understanding these fundamentals is essential before moving into system selection and application-specific decision-making.

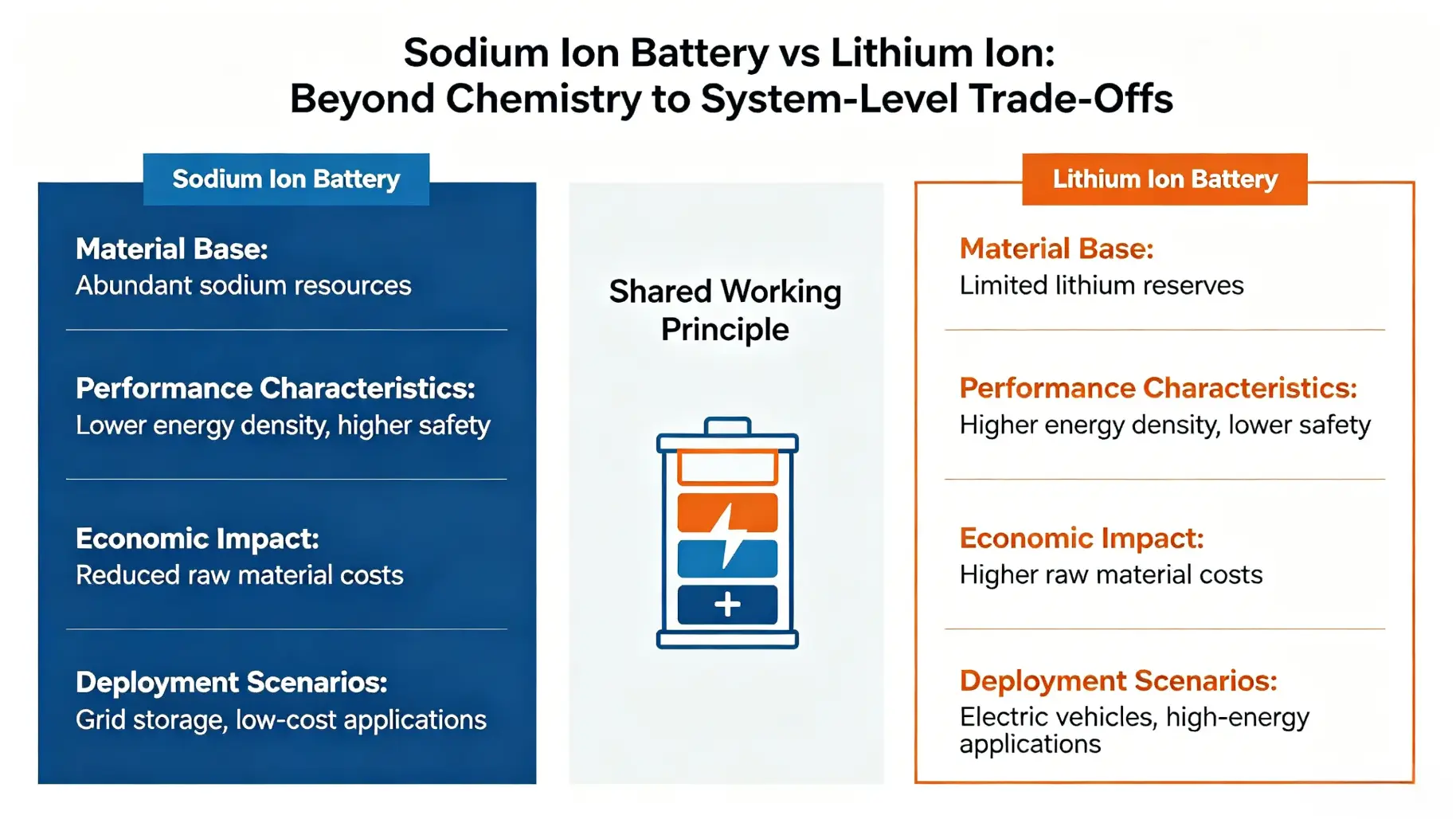

Sodium-ion Battery vs Lithium-ion: Key Differences

When evaluating sodium ion battery vs lithium ion, the distinction goes beyond chemistry—it directly affects project economics, safety profile, and deployment scenarios. Both technologies share a similar working principle, but their material base and performance characteristics create clear trade-offs that must be understood at the system level.

Feature	Sodium-ion	Lithium-ion
Cost	Lower	Higher
Energy Density	Lower	Higher
Safety	Higher	Medium
Supply Chain	Abundant	Resource constrained

From a cost perspective, sodium-ion batteries benefit from widely available raw materials such as sodium, which reduces exposure to price volatility seen in lithium, cobalt, and nickel markets. This makes them increasingly attractive for large-scale applications where cost per kWh is critical.

However, lithium-ion batteries maintain a clear advantage in energy density, allowing more compact system designs. This is particularly important in space-constrained applications like residential storage or electric vehicles.

Safety is another key differentiator. Sodium-ion systems typically exhibit greater thermal stability, reducing risks associated with overheating or thermal runaway. This characteristic is valuable in grid-scale battery storage, where system safety is paramount.

Finally, the supply chain for sodium-ion is less constrained, which may become a strategic advantage as global demand for batteries continues to grow. In contrast, lithium-ion relies on more limited and geographically concentrated resources.

In summary, lithium-ion remains the dominant solution today, but sodium-ion is emerging as a strong alternative for cost-sensitive and large-scale energy storage projects.

Where Sodium-ion Batteries Are Used (Application Scenarios)

Residential (Limited)

In the residential energy storage market, sodium-ion batteries are still in early adoption stages. The main limitation is lower energy density compared to lithium-ion, which results in larger system size for the same capacity. This makes them less suitable for compact home energy storage systems, where space efficiency and aesthetic integration are important.

However, sodium-ion technology offers strong safety advantages, including higher thermal stability and reduced risk of thermal runaway. This makes it potentially useful for off-grid homes or harsh environments where safety is prioritized over compact design. Pilot deployments in small microgrid systems have shown that sodium-ion can operate reliably under high-temperature conditions, although commercial-scale residential adoption remains limited.

Commercial (Emerging)

In the commercial energy storage sector, sodium-ion batteries are beginning to appear in early-stage deployments, particularly for backup systems and peak shaving applications. Industrial users such as factories, logistics hubs, and data centers are evaluating sodium-ion as a cost-stable alternative for renewable energy storage integration.

The key advantage in this segment is lower material cost and reduced dependency on lithium supply chains. In some pilot projects in Asia, sodium-ion systems have been deployed at multi-MWh scale for demand response and backup power. Their improved safety profile also makes them suitable for indoor installations where thermal risk control is critical.

Utility-scale (Main Growth)

The most important growth area is grid scale battery storage. At this level, cost per kWh, lifecycle stability, and supply chain security are more important than energy density—areas where sodium-ion is highly competitive.

According to the International Energy Agency, global energy storage deployment is rapidly scaling alongside renewable expansion, with utility-scale systems becoming the dominant growth driver.

Sodium-ion is increasingly considered for large renewable energy storage projects such as wind and solar farms. Several 100MWh-class pilot projects in China have already demonstrated its ability to support grid balancing and peak shifting, positioning it as a potential complementary technology to lithium-ion in future large-scale deployments.

How to Choose Sodium-ion Battery (Core Selection Guide)

Selecting the right sodium-ion battery for a project requires evaluating multiple technical parameters beyond simple cost comparison. In real-world grid scale battery storage and renewable energy storage applications, performance is determined by system-level design rather than a single specification.

Capacity defines how much energy the system can store and deliver. For utility-scale projects, sodium-ion systems are typically deployed in modular configurations ranging from 50MWh to 200MWh blocks, depending on grid requirements. Proper sizing must match load profile and discharge duration, especially in peak shaving applications.

2️⃣ Cycle Life

Cycle life is critical for long-term economics. Most commercial sodium-ion systems currently achieve 2,000–5,000 cycles, depending on chemistry and operating conditions. This is lower than mature lithium-ion systems but improving with next-generation cathode materials.

3️⃣ Efficiency

Round-trip efficiency typically ranges from 80% to 90%. Higher efficiency directly reduces operational losses in energy arbitrage and frequency regulation use cases.

4️⃣ Temperature Range

One advantage of sodium ion battery technology is its strong thermal tolerance. Many systems operate reliably between -30°C to 60°C, making them suitable for harsh climates such as desert solar farms or cold-region microgrids.

5️⃣ Depth of Discharge (DoD)

Most sodium-ion systems support 80%–100% DoD, enabling higher usable capacity compared to older battery chemistries. This improves effective energy output per cycle.

Practical Example

A 100MWh sodium-ion installation used in a wind-solar hybrid project in China was designed with:

• 85% round-trip efficiency
• 3,000 cycle design life
• 90% DoD

It was deployed to stabilize renewable output fluctuations and reduce curtailment losses in a grid scale battery storage system.

Industry Reference

According to the International Energy Agency, emerging battery technologies like sodium-ion are expected to play a growing role in diversifying energy storage supply chains and reducing reliance on lithium resources.

Sodium-ion Battery Sizing Guide (How to Calculate System Size)

Correctly sizing a sodium-ion battery system is critical for performance, cost control, and long-term reliability in grid scale battery storage and renewable energy storage projects. Unlike simple capacity selection, proper sizing must align load demand, discharge duration, and inverter compatibility.

1️⃣ How to Calculate System Size

A basic sizing formula used in how to calculate system size is:

Required Storage (kWh) = Average Load (kW) × Backup Hours

For example, if a commercial facility has an average load of 500 kW and requires 4 hours of backup:

→ Required capacity = 500 × 4 = 2,000 kWh (2 MWh)

Considering sodium-ion usable DoD (~90%), the installed system should be slightly larger:

→ Adjusted size ≈ 2.2 MWh system

2️⃣ Load vs Capacity Matching

Load profile determines whether the system is optimized for peak shaving, backup, or renewable shifting. Sodium-ion batteries are best suited for medium-duration discharge (2–6 hours) applications. Oversizing increases cost without improving efficiency, while undersizing leads to energy shortages during peak demand.

3️⃣ Inverter Matching

Proper inverter sizing is essential. A common rule is:

Inverter power (kW) ≈ 0.5–1 × battery capacity (kWh/hour rating)

For a 2 MWh sodium-ion system, a 500 kW–1 MW inverter is typically used depending on discharge strategy and grid requirements.

Practical Example

A solar + storage project in a commercial park deployed a 2 MWh sodium-ion system with a 750 kW inverter, enabling peak shaving during 4-hour evening demand peaks and reducing grid dependency by over 30%.

Industry Reference

According to the International Energy Agency, proper system sizing is one of the key factors determining lifecycle efficiency and economic viability in modern energy storage deployments.

Sodium-ion Battery Selection Parameters Explained (Engineering View)

When evaluating a sodium-ion battery for energy storage system deployment, selection is not only about capacity but also key electrochemical parameters that directly impact lifecycle performance and safety.

Internal resistance affects efficiency and heat generation. Lower resistance improves charge/discharge efficiency, typically targeting <50 mΩ in utility-grade systems. Higher resistance leads to energy loss and faster degradation under high-load cycling.

Voltage window defines usable operating range. Most sodium ion battery technology operates within ~2.0V–3.8V per cell, and maintaining operation within this window prevents overcharge stress and capacity loss.

Thermal behavior is a major advantage of sodium systems. Compared with lithium-ion, sodium chemistry is more stable at elevated temperatures (often validated up to 60°C in field tests), reducing thermal runaway risk in grid scale battery storage environments.

Degradation rate determines long-term economics. Commercial systems typically show ~10–20% capacity loss over 2,000–3,000 cycles depending on duty profile.

Example: A 1 MWh pilot project in Asia operating under daily cycling conditions showed only ~12% degradation after 2.5 years, primarily due to controlled temperature management and optimized voltage window operation.

These parameters collectively determine whether a sodium-ion system is suitable for high-frequency renewable integration or long-duration backup applications.

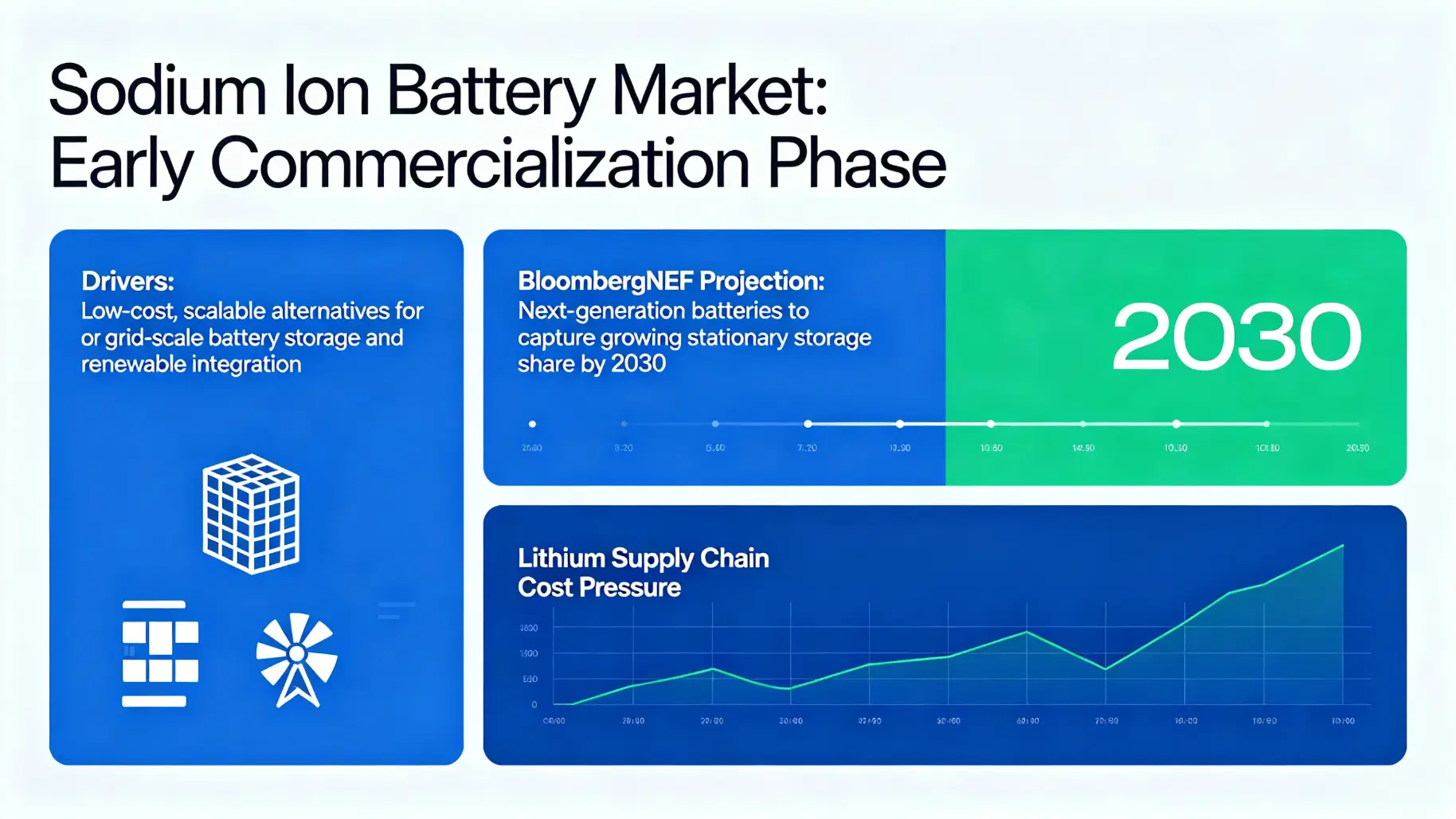

Sodium-ion Battery Market Overview (Growth & Outlook)

The sodium ion battery market is entering an early commercialization phase, driven by demand for low-cost, scalable alternatives in grid scale battery storage and renewable integration. According to BloombergNEF, next-generation battery technologies are expected to capture a growing share of stationary storage deployment by 2030 as cost pressure increases across lithium supply chains.

By 2030, sodium-ion is projected to become a complementary technology rather than a full replacement, mainly serving cost-sensitive and large-scale energy storage applications.

Sodium Battery Manufacturer Landscape (Key Players & Supply Chain)

The global sodium battery manufacturer landscape is still emerging, but it is rapidly forming around leading battery giants and early-stage innovators. Among them, CATL plays a central role, having introduced sodium-ion prototypes with reported energy density improvements and successful pilot deployments in hybrid storage systems.

BYD is also actively exploring sodium-ion integration, particularly for cost-sensitive energy storage and urban backup applications, leveraging its strong system integration capability across battery energy storage systems (BESS).

Manufacturer Comparison Snapshot

Manufacturer	Strength	Typical Focus
CATL	Advanced R&D, pilot deployment	Utility-scale storage
BYD	System integration capability	Commercial + residential
Emerging suppliers	Cost competition	Early-stage grid storage

Emerging suppliers are primarily targeting regional grid scale battery storage projects, focusing on cost reduction rather than long cycle-life optimization.

Example: CATL’s early sodium-ion pilot systems (multi-MWh scale) have been deployed in hybrid wind-solar storage projects, demonstrating stable operation under daily cycling conditions.

Overall, the supply chain is still consolidating, with CATL and BYD setting the benchmark for next-generation sodium ion battery technology commercialization.

Advantages and Limitations of Sodium-ion Technology

Sodium-ion battery technology is gaining attention as a viable option for grid scale battery storage, but it presents a clear set of trade-offs that must be understood before deployment.

✔ Key Advantages

One of the strongest benefits is the use of cheap and widely available materials, reducing exposure to lithium supply constraints. This improves long-term cost stability in the sodium ion battery market. Safety is another advantage—sodium chemistry offers higher thermal stability, reducing risk of thermal runaway. In field tests, systems have demonstrated stable operation in high-temperature environments up to ~60°C. Additionally, low-temperature performance is stronger than many lithium systems, making it suitable for cold-region renewable storage.

❌ Key Limitations

Factor	Impact
Energy Density	Lower system compactness
Commercial Maturity	Early-stage deployment

Lower energy density means larger physical systems for the same kWh capacity. For example, a 1MWh sodium system may require up to 20–30% more space than lithium-ion equivalents. Commercialization is still in early stages, with most deployments limited to pilot-scale or hybrid projects.

Example: A 50MWh pilot project in Asia demonstrated strong safety and temperature resilience but required larger installation footprint compared to lithium-based energy storage systems.

Grid Scale Battery Market Impact

The rapid expansion of grid scale battery storage is reshaping global renewable energy systems, especially in wind and solar integration projects. As renewable penetration increases, grid instability caused by intermittency is driving strong demand for large-scale battery energy storage systems (BESS).

According to the International Energy Agency, utility-scale storage deployment is accelerating sharply, with hybrid renewable + storage projects becoming the new standard in regions such as Europe and the Middle East.

A typical example is a 1GW wind + storage project configuration, where 500MWh–1GWh battery systems are deployed to stabilize output and shift energy to peak demand periods. These systems significantly reduce curtailment losses and improve renewable utilization efficiency by more than 15–30% in some pilot cases.

How to Evaluate Sodium-ion Battery Suppliers

Selecting a reliable sodium battery manufacturer requires evaluating both technical capability and system-level integration experience. In B2B procurement, performance claims must be validated through certification and long-term testing rather than marketing data alone.

Evaluation Factor	Industry Requirement	Importance
Certification	IEC / UL compliance	Safety assurance
Cycle Testing	≥2000–5000 cycles	Lifecycle validation
Warranty	5–10 years typical	Risk control
System Integration	BMS + PCS compatibility	Performance stability

For example, grid projects in Asia have rejected low-cost suppliers due to insufficient cycle testing, despite lower upfront pricing, because degradation risks increase lifecycle cost significantly.

Future of Sodium-ion Battery Technology

The future of sodium-ion battery technology is closely tied to cost reduction and scalability improvements in the next generation battery technology landscape. Industry analysts expect sodium-ion to complement lithium-ion rather than replace it, especially in cost-sensitive grid applications.

Pilot deployments in China have already demonstrated 100MWh-scale systems operating in renewable smoothing and peak shaving scenarios, showing early-stage commercial viability.

According to International Energy Agency, diversified battery chemistries will be essential for achieving long-term energy transition goals as global storage demand increases exponentially.

A typical roadmap suggests:

• Short term (2025–2028): pilot + hybrid systems
• Mid term (2028–2032): cost optimization and scaling
• Long term (post-2032): partial parity in grid applications

Overall, sodium-ion is positioned as a strategic supplement in the global energy storage ecosystem rather than a replacement technology.

FAQ

1.What is a sodium-ion battery?

A sodium-ion battery is a rechargeable energy storage system that uses sodium ions (Na⁺) as charge carriers. It is based on sodium ion battery technology, which works similarly to lithium-ion but uses more abundant raw materials. This makes it a promising next generation battery technology for large-scale energy storage, especially in cost-sensitive applications such as grid scale battery storage.

2.How to choose a sodium-ion battery?

To select the right system, you must evaluate:

• Capacity (kWh / Ah) based on load demand
• Cycle life (long-term durability)
• Efficiency (typically 80–90%)
• Temperature range (important for outdoor storage)
• Depth of Discharge (usable energy ratio)

These parameters determine whether the system is suitable for renewable energy storage or backup applications. Proper sizing ensures cost efficiency over the full lifecycle.

3.Sodium-ion battery vs lithium-ion: which is better?

Neither is universally “better.”

Lithium-ion: higher energy density, more mature, widely used

Sodium-ion: lower cost, better safety, stronger supply chain resilience

For grid scale battery storage, sodium-ion is increasingly competitive, while lithium-ion remains dominant in compact and high-performance systems.

4.What is sodium-ion battery sizing guide?

A sizing guide defines how much storage is needed based on:

Load × Backup time ÷ efficiency

For example, a 500kW load requiring 4 hours:

• → 2MWh system (adjusted upward for losses)
• This ensures proper alignment with inverter capacity and system design.

5.Are sodium-ion batteries good for grid storage?

Yes, especially for large-scale applications. Sodium-ion systems are well suited for grid scale battery storage because they offer:

• Lower material cost
• Stable thermal performance
• Long cycle stability for stationary use

They are already being tested in pilot renewable energy storage systems for wind and solar integration, particularly where cost and safety are more critical than energy density.

Conclusion

The development of sodium-ion battery technology marks an important shift in the global energy storage landscape. While sodium-ion systems are emerging as a promising alternative for grid scale battery storage due to lower cost and improved supply chain resilience, lithium-ion batteries remain the dominant solution today because of higher energy density and mature deployment experience.

In practice, the choice between technologies is not absolute. It depends on application requirements such as cost sensitivity, system scale, and performance expectations. For many renewable energy storage projects, sodium-ion will increasingly complement lithium-ion rather than replace it, forming a diversified battery ecosystem for the future.

If you are interested in sodium batteries, you are welcome to contact us, or check out more of our articles about sodium batteries.
