Flow Battery vs. Lithium-Ion: Which Offers Better Long-Duration Performance for a Utility?

Key Conclusion: For grid applications requiring 1 to 4 hours of storage, Lithium-Ion (specifically LiFePO4) is the superior choice due to its lower upfront CAPEX, compact footprint, high round-trip efficiency (85–92%), and mature global supply chain. For long-duration energy storage (6 to 12+ hours), Flow Batteries (such as Vanadium Redox Flow systems) deliver better overall performance and lower Levelized Cost of Storage (LCOS). Flow batteries offer decoupled power-and-energy scaling, near-zero chemical degradation over 20+ years, and zero thermal runaway risk, making them ideal for multi-hour renewable shifting despite their higher initial equipment costs and larger physical footprint.

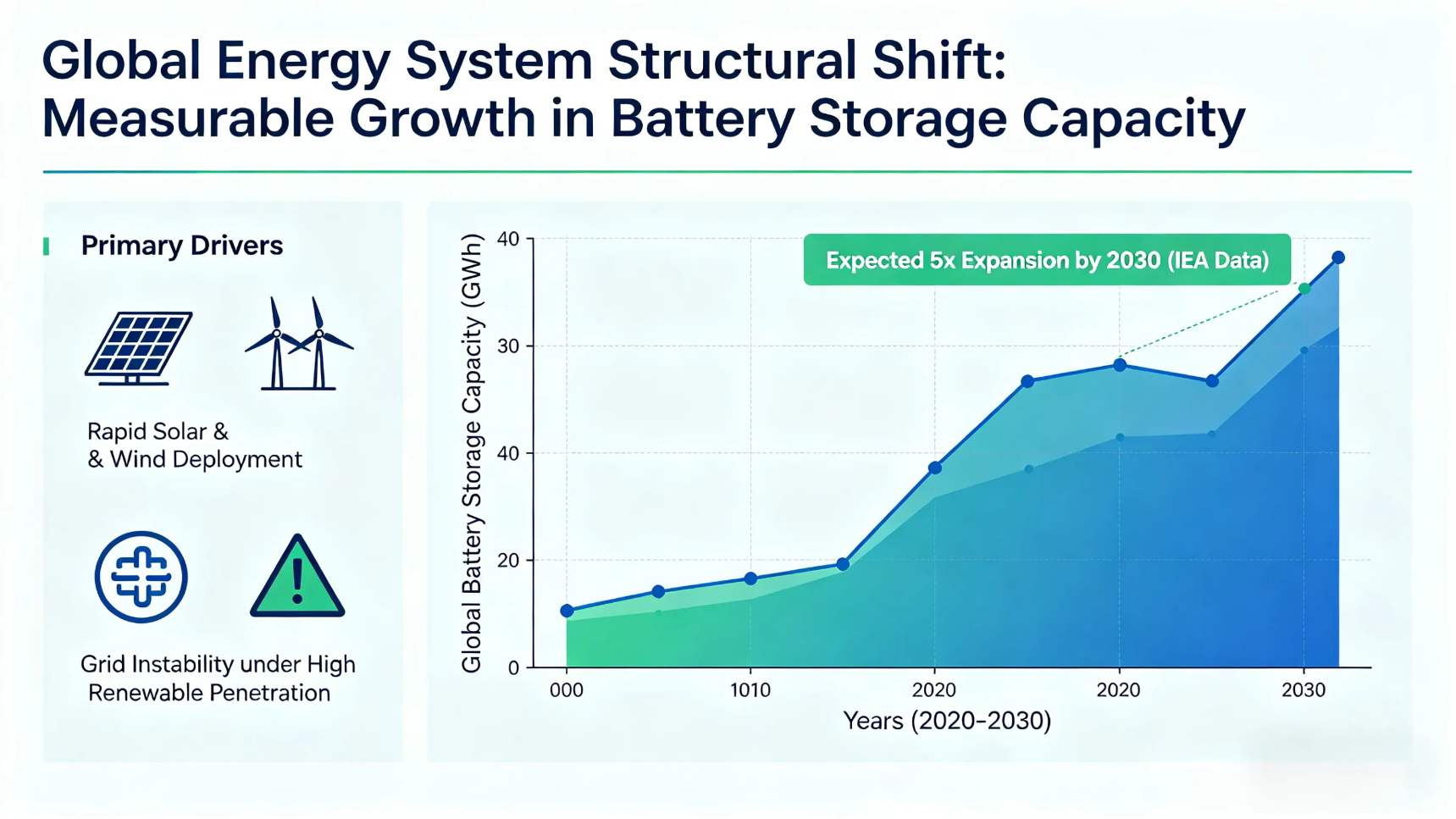

The global energy transition has reached a critical structural inflection point. As renewable energy penetration accelerates, power grids worldwide face unprecedented volatility. Modern utility engineers, Independent Power Producers (IPPs), and Engineering, Procurement, and Construction (EPC) contractors no longer ask simply how to store energy, but how long that energy can be stored cost-effectively, safely, and without rapid asset degradation.

Evaluating these technologies requires moving beyond initial equipment costs. This technical guide breaks down the architecture, lifecycle economics, safety metrics, and operational suitability of flow batteries versus lithium-ion systems to help utilities select the optimal battery energy storage system (BESS) for their grid architecture.

Executive Technology Comparison

• Volumetric Energy Density: Lithium-Ion is high (~200–350 Wh/kg); Flow Battery is low (~15–25 Wh/L at system level).
• Round-Trip Efficiency (RTE): Lithium-Ion delivers 85%–92%; Flow Battery delivers 65%–75%.
• System Lifecycle: Lithium-Ion lasts 10–15 Years (3,000–8,000 cycles); Flow Battery lasts 20–25+ Years (15,000–20,000+ cycles).
• Economic Discharge Duration: Lithium-Ion is optimal for 1 to 4 hours; Flow Battery is optimal for 6 to 12+ hours.
• Physical Footprint: Lithium-Ion is compact (Standard 20ft/40ft containers); Flow Battery is substantial (requires tanks, pumps, and piping).
• Safety & Thermal Runaway: Lithium-Ion requires active HVAC & suppression (UL 9540A); Flow Battery is inherently safe (water-based, non-flammable).
• Scaling Architecture: Lithium-Ion is coupled (power & capacity scale linearly); Flow Battery is decoupled (power & capacity scale independently).
• CAPEX vs. OPEX Profile: Lithium-Ion has lower upfront CAPEX / higher augmentation OPEX; Flow Battery has higher upfront CAPEX / lower long-term OPEX.

1. Flow Battery vs. Lithium-Ion: Architectural Philosophy and System Scaling

To understand why these technologies serve different operational roles, one must examine their fundamental electrochemical architectures.

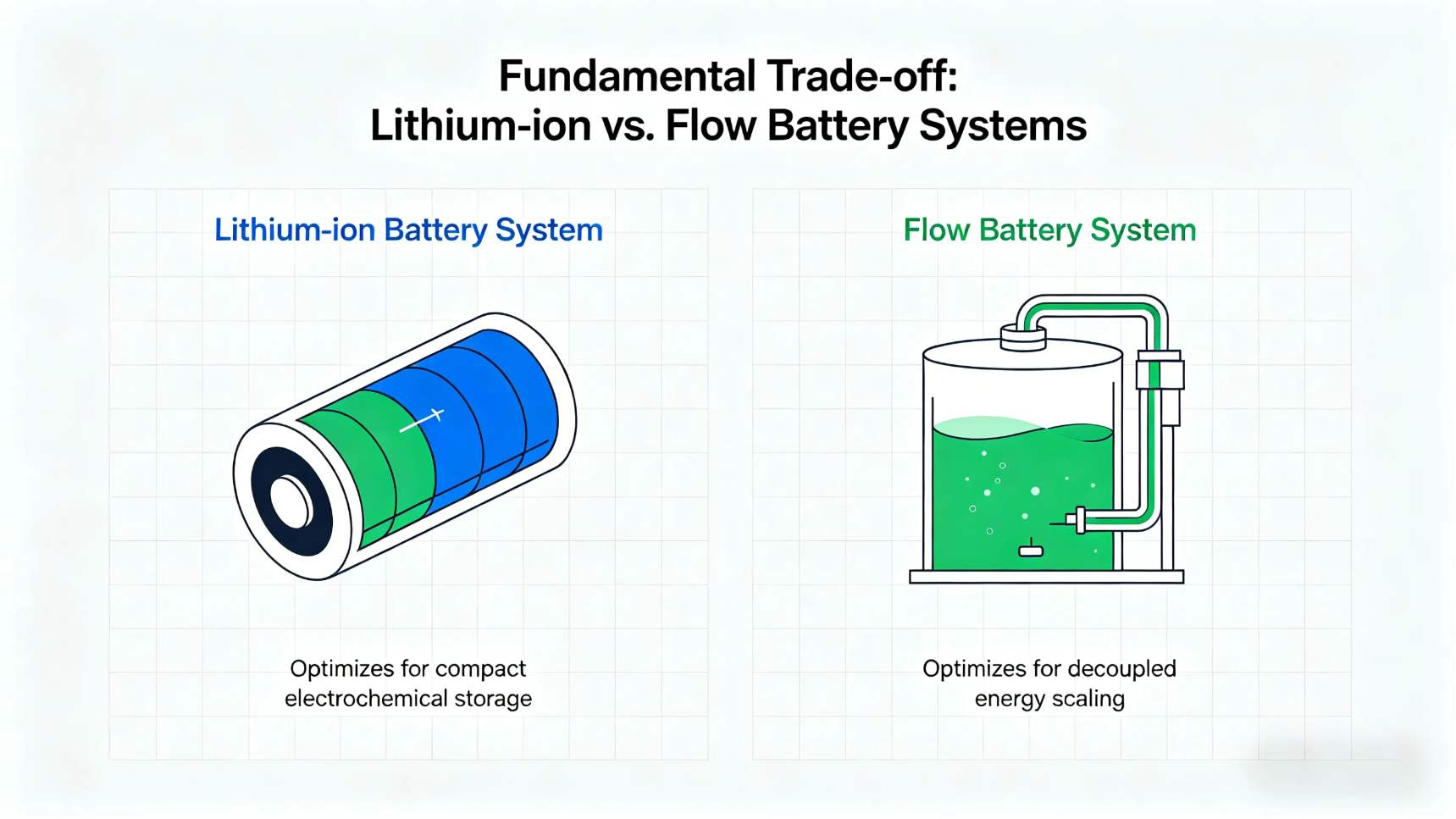

Coupled vs. Decoupled Energy Scaling

Lithium-ion batteries operate on a coupled power-and-energy architecture. Electrodes, electrolytes, and separators are self-contained inside sealed individual cells. Consequently, scaling a lithium-ion system requires adding more modules, racks, and enclosure containers. If a utility needs to double its energy capacity (kWh) while keeping output power (kW) constant, it must still buy twice as many battery cells, power management channels, and containerized structures.

In contrast, flow batteries feature a decoupled architecture:

• Power (kW) is determined by the surface area and number of cells in the electrochemical membrane stack.
• Energy (kWh) is determined strictly by the volume of liquid electrolyte stored in external tanks.

To scale energy capacity in a flow battery, project developers do not need to replace or expand the expensive electrochemical stack. They simply increase the size of the liquid storage tanks and supply additional liquid electrolyte. This decoupled model creates powerful economies of scale as required discharge durations extend past 6 hours.

Spatial Footprint and Land Requirements

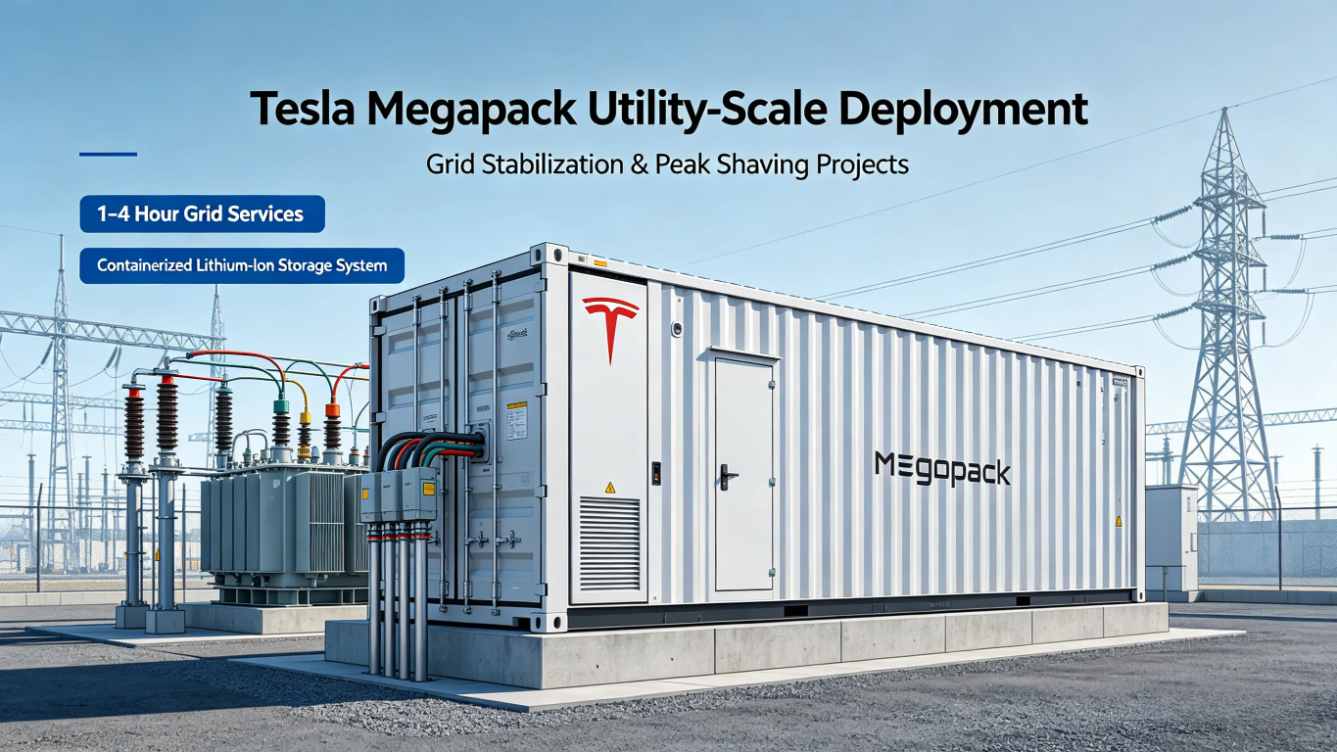

Because lithium-ion batteries feature high energy density, they minimize land utilization. A standard 40-foot modular containerized lithium-ion BESS can easily house up to 3.4 MWh to 5 MWh of capacity, complete with liquid cooling and integrated fire suppression.

Conversely, flow batteries exhibit much lower volumetric energy density. Storing equivalent megawatt-hours requires substantial tanks, pumps, piping manifolds, and secondary containment basins to catch chemical leaks. For urban microgrids or land-constrained substations, lithium-ion remains the clear structural winner. For expansive rural utility substations or co-located solar farms where land cost is negligible, the physical footprint of flow batteries poses far less constraint.

2. Flow Batteries vs. Lithium-Ion: Safety, Degradation, and Cycle Life

Asset managers and project financiers evaluate grid-scale BESS installations based on risk mitigation, thermal safety, and structural lifecycle reliability.

Thermal Runaway Risks and Fire Safety Standards

Lithium-ion cells—particularly chemistry variants containing nickel or cobalt—possess flammable organic liquid electrolytes. While Lithium Iron Phosphate (LFP) has significantly raised thermal runaway thresholds compared to NMC chemistries, LFP packs can still experience severe thermal events if subjected to internal short circuits, mechanical puncture, or manufacturing defects. Compliance with strict standards like NFPA 855 and UL 9540A requires comprehensive explosion venting, gas detection, deflagration panels, and specialized fire suppression fluids, increasing overall installation costs.

Flow batteries, such as Vanadium Redox systems, utilize non-flammable, water-based acid solutions as their liquid electrolyte. They present zero risk of thermal runaway, fire propagation, or explosion. This inherent thermal safety drastically simplifies municipal permitting, reduces site safety clearances, and lowers annual insurance premiums for utility-scale projects.

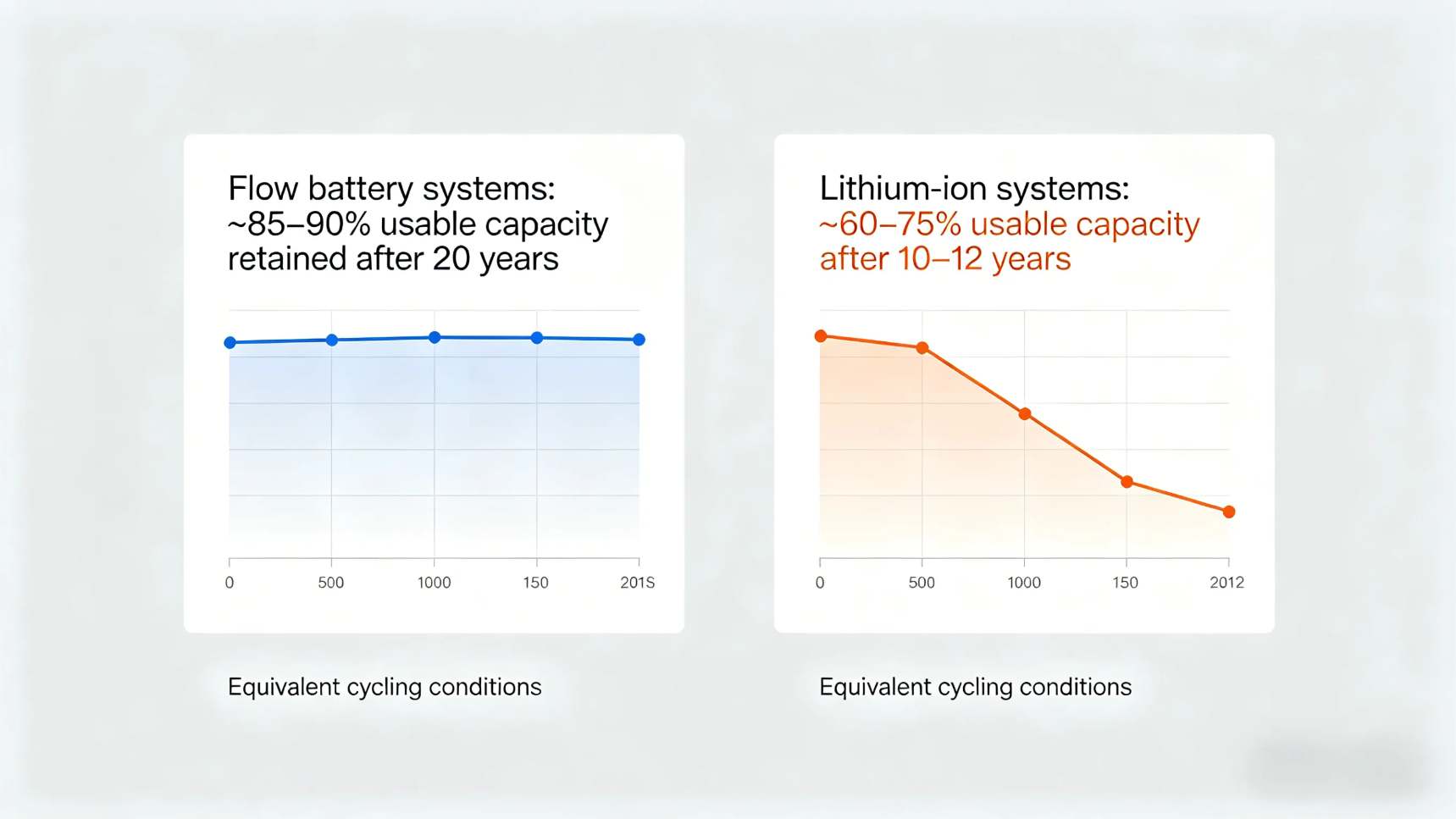

Degradation Mechanisms: Chemical Aging vs. Mechanical Wear

The underlying physical decay mechanisms between these technologies diverge sharply:

• Lithium-Ion Chemical Fade: Every charge and discharge cycle induces mechanical stress on solid electrodes. Over time, Solid Electrolyte Interphase (SEI) layer growth, lithium plating, and active material isolation degrade capacity. High ambient operating temperatures (>35°C), high C-rates, and deep depth-of-discharge (100% DoD) accelerate this degradation. Typical LFP utility assets experience 2% to 4% capacity fade annually, requiring asset operators to plan for system augmentation (adding fresh battery packs) at year 8 to 10 to maintain contractual capacity.
• Flow Battery Structural Longevity: Because the active energy-bearing elements in flow batteries reside entirely in liquid form, the active material experiences zero lattice structural degradation during charge/discharge cycles. Vanadium electrolyte solutions do not degrade chemically over time; they retain 100% of their energy capacity for 20 to 25+ years. System aging is restricted entirely to mechanical components (pumps, valves, seals) and membrane stack wear—all of which can be serviced, refurbished, or swapped modularly without discarding the primary chemical storage asset.

3. Lithium Ion Battery Storage vs. Flow Battery Storage: Cost Economics and TCO Comparison

Utility CFOs and project developers must carefully analyze the trade-off between Capital Expenditure (CAPEX), Operational Expenditure (OPEX), and Levelized Cost of Storage (LCOS).

CAPEX Dynamics and Supply Chain Maturity

Lithium-ion technology benefits from enormous global manufacturing capacity driven by the electric vehicle (EV) industry. Multi-gigawatt-hour cell production lines have driven lithium-ion pack costs down significantly, making LFP the undisputed leader in upfront CAPEX ($/kWh).

Flow batteries suffer from a less mature manufacturing supply chain. Key raw materials—such as high-purity vanadium pentoxide (V2​O5​) or specialized ion-exchange membranes—along with custom fluid-handling pumps keep initial equipment CAPEX roughly 1.5x to 2x higher than lithium-ion on a pure per-kilowatt-hour basis for short-duration configurations.

Levelized Cost of Storage (LCOS) over a 20-Year Horizon

While lithium-ion boasts a lower initial CAPEX, its Total Cost of Ownership (TCO) climbs over extended periods due to round-the-clock parasitic HVAC energy consumption and mandatory mid-life cell augmentation.

In contrast, flow batteries yield a declining $/kWh cost curve as duration increases. Because adding hours of storage simply requires larger liquid tanks rather than additional membrane stacks, the marginal cost per added kWh of storage drops rapidly past 6 to 8 hours.

Furthermore, vanadium electrolyte retains nearly 100% of its intrinsic material value at the end of project life. The liquid can be recovered, purified, and re-sold or deployed in a new facility, yielding a substantial residual asset value that significantly lowers 20-year LCOS calculations for long-duration applications.

4. Flow Battery vs. Lithium Ion: Which Offers Better Long Duration Performance for a Utility?

When determining which technology offers superior long-duration performance for utility applications, the operational requirement hinges on discharge duration and grid service profiles.

The 4-to-8 Hour Duration Turning Point

• Short-Duration Applications (1 to 4 Hours): Lithium-ion remains the clear industry leader. For fast frequency response (FFR), synthetic inertia, spinning reserves, and short-duration evening peak shaving, lithium-ion's superior Round-Trip Efficiency (RTE of 85-92%) minimizes wasted power. Its fast response time (sub-100 milliseconds) easily satisfies dynamic grid compliance codes.
• Long-Duration Energy Storage (LDES - 6 to 12+ Hours): Flow batteries outperform lithium-ion on key operational metrics. When a utility must store excess midday solar generation and discharge it continuously through the overnight hours (or bridge multi-day wind droughts), lithium-ion system economics degrade rapidly due to linear cell costs. Flow batteries provide steady, multi-hour power output without depth-of-discharge penalties or cell degradation risks.

5. Decision Framework: Best Lithium vs. Flow Battery Storage for Grid Applications?

To assist utility planners, system integrators, and project engineers in selecting the optimal technology platform, use the following key selection criteria:

Required Discharge Duration:

< 4 Hours: Select Lithium-Ion. Highly competitive CAPEX, compact footprint, and optimal RTE.

4 to 8 Hours: Hybrid / Transition Zone. Evaluate regional land costs, localized ambient temperature conditions, and augmentation contracts.

> 8 Hours: Select Flow Battery. Lower marginal cost per kWh, unlimited cycle life, and no degradation under continuous long-duration cycling.

Site Safety Constraints & Permitting Thresholds:

If installing adjacent to dense urban populations, indoor substations, or strict environmental zones, the inherent non-flammability of flow batteries dramatically reduces regulatory and safety compliance friction.

Thermal Management & Ambient Climate:

Lithium-ion assets installed in hot desert regions demand continuous HVAC power consumption to prevent rapid cell degradation, reducing net plant efficiency. Flow batteries handle higher operational thermal thresholds with far lower parasitic cooling overhead.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between a flow battery and a lithium-ion battery?

A: The main difference lies in their system architecture. Lithium-ion batteries store energy inside solid cell electrodes where power and capacity are fixed together. Flow batteries store energy in external liquid electrolyte tanks separated from the cell stack, allowing power (kW) and energy capacity (kWh) to scale independently.

Q: Why are lithium-ion batteries dominant in grid storage today?

A: Lithium-ion batteries (especially LiFePO4) dominate due to high energy density, excellent round-trip efficiency (85–92%), fast response times (<100ms), and a highly mature global manufacturing supply chain that keeps upfront equipment costs (CAPEX) low.

Q: Why are flow batteries considered better for long-duration energy storage (LDES)?

A: Flow batteries become more cost-effective as discharge duration extends past 6 to 8 hours because scaling energy capacity requires simply adding larger, inexpensive fluid tanks rather than purchasing expensive additional battery cells. They also experience virtually no chemical degradation over 20+ years.

Q: Do flow batteries pose a fire or thermal runaway risk?

A: No. Flow batteries utilize water-based liquid electrolytes that are inherently non-flammable and non-explosive. They present zero thermal runaway risk, simplifying fire safety permitting under NFPA 855 and UL 9540A standards.

Q: Which battery type has a lower Total Cost of Ownership (TCO)?

A: For short discharge durations (1–4 hours), lithium-ion offers a lower TCO. For long discharge durations (>8 hours) operating over a 20-year lifetime, flow batteries provide a lower TCO and Levelized Cost of Storage (LCOS) because they do not require mid-life cell augmentation and their electrolyte can be fully recycled at end-of-life.

Engineering Custom Utility-Scale Energy Storage Solutions

Choosing between Lithium-Ion and Flow Battery architectures comes down to matching electrochemical characteristics to specific grid duty cycles. While flow batteries hold distinct advantages for multi-hour, multi-day long-duration energy shifting, Lithium Iron Phosphate (LiFePO4) systems remain the most versatile, bankable, and cost-effective foundation for 1-to-4 hour grid stabilization, commercial peak shaving, and solar-plus-storage integration.
